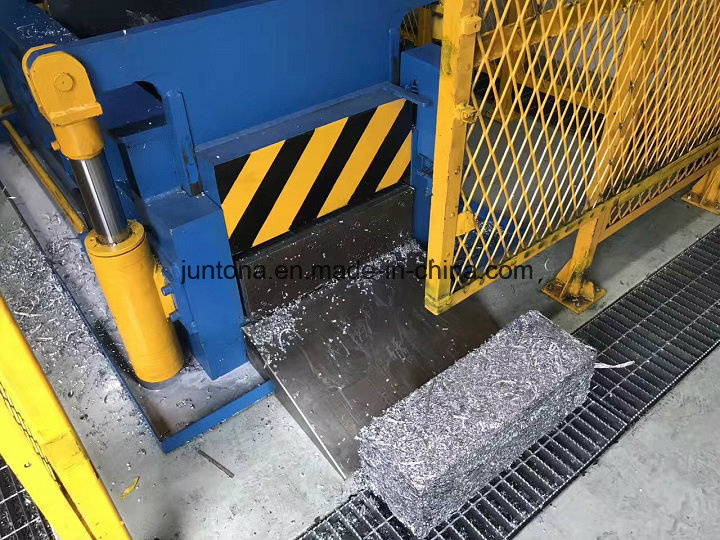

Waste Aluminum Cans Baling Press Machine
| Price: |
US $ 8000-10000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Y81Q-100 |
| Press Box Size: |
1100*600*550mm |
| Nominal Push Force: |
1000kn |
| Bale Size: |
600*220mm |
| Bale Weight: |
40-80kg |
| Production Effciency: |
1000-1800kg/H |
| Single Cycle Time: |
Less Than 85s |
| Bale Coming Out: |
Push out From Front, Forward out |
| Color: |
Blue and Yellow or as Customer Required |
| Delivery Time: |
Within a Month |
| Machine Weight: |
5.5t |
Product Description
Hydraulic recycling machine scrap ferrous metal baler
Metal Baler Description
Y81 series automatic hydraulic metal baling machine is mainly suitable for the steel works,recycling processing industry, non-ferrous and ferrous metal smelting industry. It can extrude any kinds of metal leftover materials, steel shavings, waste copper and waste aluminum into qualified charging such as cubic, cylinder shape, octagon and other shapes. The purpose is to reduce the costs of transportation and smelting loss.
Metal Baler Features and Advantages
| 1, The hydraulic driving is adopted for all types of machines. the manual or PLC automatic control operations are optional. |
| 2, No need foundation bolts for installation, the diesel be equipped as power at the place without power supplying. |
| 3, Bale out type:turn out, side push, front push. |
| 4, Extruding force has 8 classes from 63 tons pressure to 400 tons and production efficiency is from 0.5 tons per hour to 20 tons per hour. |
| 5, The chamber box size and bale size can be customized according to clients' requirements, can choose blades for the chamber box, |
 |
Metal Baler Parametersfront push| Model | Nominal Push Force(KN) | Press Box Size(L*W*H mm) | Bale Size(L*W mm) | Production Efficiency(kg/h) | single cycle time(s) | Power(KW) | Bale out/operation mode |
| Y81Q-63 | 630 | 600*500*500 |
500*220
| 600-1000 | ≤75 | 7.5 | front push, automatic |
| Y81Q-100 | 1000 | 1100*600*550 |
600*220
| 1200-1800 | ≤85 | 11 | front push, automatic |
| Y81Q-135A | 1350 | 1400*600*600 |
600*240
| 1200-1700 | ≤80 | 22 | front push, automatic |
| Y81Q-135B | 1350 | 1100*600*600 |
600*240
| 1800-2200 | ≤100 | 15,18.5 | front push, automatic |
| Y81Q-160 | 1600 | 1450*600*600 |
600*300
| 2000-3000 | ≤110 | 22 | front push, automatic |
| Y81Q-200 | 2000 | 1450*600*700 |
700*300
| 2000-3500 | ≤110 | 30 | front push, automatic |
| Y81Q-250 | 2500 | 1800*900*700 |
900*350
| 2000-4000 | ≤130 | 44 | front push, automatic |
turn bale out| Model | Nominal Push Force(KN) | Press Box Size(L*W*H mm) | Bale Size(L*W mm) | Production Efficiency(kg/h) | single cycle time(s) | Power(KW) | Bale out/operation mode |
| Y81F-63X | 630 | 800*500*450 |
200*200
| 800-1000 | ≤75 | 7.5 | turn out, automatic |
| Y81F-100 | 1000 | 1000*700*550 |
250*250
| 1200-1500 | ≤85 | 11 | turn out,, automatic |
| Y81F-125A | 1250 | 1200*700*600 |
300*300
| 1200-1800 | ≤110 | 15 | turn out,, automatic |
| Y81F-125C | 1250 | 1200*700*600 |
250*250
(octagonal)
| 1200-1700 | ≤115 | 15 | turn out, automatic |
| Y81F-135 | 1350 | 1400*900*700 |
350*350
| 1800-2200 | ≤120 | 22 | turn out, automatic |
| Y81F-160 | 1600 | 1400*900*800 |
350*350
| 2000-3000 | ≤150 | 22 | turn out, automatic |
| Y81F-160A | 1600 | 1600*1200*800 |
400*400
| 2000-3500 | ≤150 | 22 | turn out,automatic |
| Y81F-160B | 1600 | 1600*1000*800 |
400*400
| 2000-4000 | ≤150 | 30 | turn out, automatic |
| Y81F-200A | 2000 | 1600*1200*800 |
450*450
| 2500-4500 | ≤160 | 30,37 | turn out, automatic |
| Y81F-200B | 2000 | 1600*1200*800 |
500*500
| 3000-5000 | ≤160 | 37,44 | turn out, automatic |
| Y81F-200C | 2000 | 1800*1200*900 |
500*500
| 3500-5500 | ≤160 | 44 | turn out, automatic |
| Y81F-250A | 2500 | 2000*1400*900 |
500*500
| 4000-6300 | ≤160 | 44,60 | turn out, automatic |
| Y81F-250B | 2500 | 1800*1200*900 |
500*500
| 5000-6300 | ≤160 | 44,60,74 | turn out, automatic |
| Y81F-250C | 2500 | 2000*1400*900 |
500*500
| 5500-6500 | ≤160 | 60 | turn out,automatic |
| Y81F-250D | 2500 | 2000*1750*1200 |
500*500
| 5500-6500 | ≤160 | 60,74 | turn out,automatic |
| Y81F-250E | 2500 | 2500*2000*1200 |
500*500
| 5500-6500 | ≤160 | 60,74 | turn out,automatic |
| Y81F-315A | 3150 | 3000*2500*1200 |
500*500
| 5000-6500 | ≤160 | 60,74 | turn out,automatic |
| Y81F-315B | 3150 | 2000*1400*1200 |
600*600
| 5000-7000 | ≤160 | 60,74 | turn out, automatic |
| Y81F-315C | 3150 | 2000*1750*1200 |
600*600
| 6000-7500 | ≤180 | 74 | turn out,automatic |
| Y81F-315D | 3150 | 2500*2000*1200 |
700*700
| 7000-8000 | ≤180 | 90 | turn out,automatic |
| Y81F-400A | 4000 | 3000*2500*1300 |
600*600
| 5000-7000 | ≤160 | 74 | turn out, automatic |
| Y81F-400B | 4000 | 2000*1600*1200 |
600*600
| 7500-9000 | ≤180 | 90 | turn out,automatic |
| Y81F-400C | 4000 | 2500*2000*1200 |
700*700
| 8000-10000 | ≤180 | 90 | turn out,automatic |
| Y81F-400D | 4000 | 3000*2500*1300 |
700*700
| 9000-12000 | ≤190 | 135 | turn out, automatic |
side push| Model | Nominal Push Force(KN) | Press Box Size(L*W*H mm) | Bale Size(L*W mm) | Production Efficiency(kg/h) | single cycle time(s) | Power(KW) | Bale out/operation mode |
| Y81T-100 | 1000 | 1000*700*550 |
250*250
| 1200-1500 | ≤85 | 11 | side push, automatic |
| Y81T-125A | 1250 | 1200*700*600 |
300*300
| 1200-1800 | ≤110 | 15 | side push, automatic |
| Y81T-125Y | 1250 | 1200*700*600 | φ200 round | 1200-1700 | ≤115 | 15 | side push, automatic |
| Y81T-135 | 1350 | 1400*900*700 |
350*350
| 1800-2200 | ≤120 | 22 | side push, automatic |
| Y81T-160 | 1600 | 1400*900*800 |
350*350
| 2000-3000 | ≤150 | 22 | side push, automatic |
| Y81T-160A | 1600 | 1600*1000*800 |
400*400
| 2000-3500 | ≤150 | 22 | side push, automatic |
| Y81T-160B | 1600 | 1600*1200*800 |
400*400
| 2000-4000 | ≤150 | 30 | side push, automatic |
| Y81T-200A | 2000 | 1600*1200*800 |
450*450
| 2500-4500 | ≤150 | 30,37 | side push, automatic |
| Y81T-200B | 2000 | 1800*1200*900 |
500*500
| 3000-5000 | ≤160 | 37,44 | side push, automatic |
| Y81T-200C | 2000 | 2000*1400*900 |
500*500
| 3500-5500 | ≤160 | 44 | side push, automatic |
| Y81T-250A | 2500 | 1800*1200*900 |
500*500
| 4000-6300 | ≤160 | 44,60 | side push, automatic |
| Y81T-250B | 2500 | 2000*1400*900 |
500*500
| 5000-6300 | ≤160 | 44,60,74 | side push, automatic |
| Y81T-250C | 2500 | 2000*1750*1200 |
500*500
| 5500-6500 | ≤160 | 60 | side push, automatic |
| Y81T-250D | 2500 | 2500*2000*1200 |
500*500
| 5500-6500 | ≤160 | 60,74 | side push, automatic |
| Y81T-250E | 2500 | 3000*2500*1200 |
500*500
| 5500-6500 | ≤160 | 60,74 | side push, automatic |
| Y81T-315A | 3150 | 2000*1400*1200 |
500*500
| 5000-6500 | ≤160 | 60,74 | side push, automatic |
| Y81T-315B | 3150 | 2000*1750*1200 |
600*600
| 5000-7000 | ≤160 | 60,74 | side push, automatic |
| Y81T-315C | 3150 | 2500*2000*1200 |
600*600
| 6000-7500 | ≤180 | 74 | side push, automatic |
| Y81T-315D | 3150 | 3000*2500*1300 |
700*700
| 7000-8000 | ≤180 | 90 | side push, automatic |
| Y81T-400A | 4000 | 2000*1600*1200 |
600*600
| 5000-7000 | ≤160 | 74 | side push, automatic |
| Y81T-400B | 4000 | 2500*2000*1200 |
600*600
| 7500-9000 | ≤180 | 90 | side push, automatic |
| Y81T-400C | 4000 | 3000*2000*1300 |
700*700
| 8000-10000 | ≤180 | 90 | side push, automatic |
| Y81T-400D | 4000 | 3000*2500*1300 |
700*700
| 9000-12000 | ≤190 | 135 | side push, automatic |

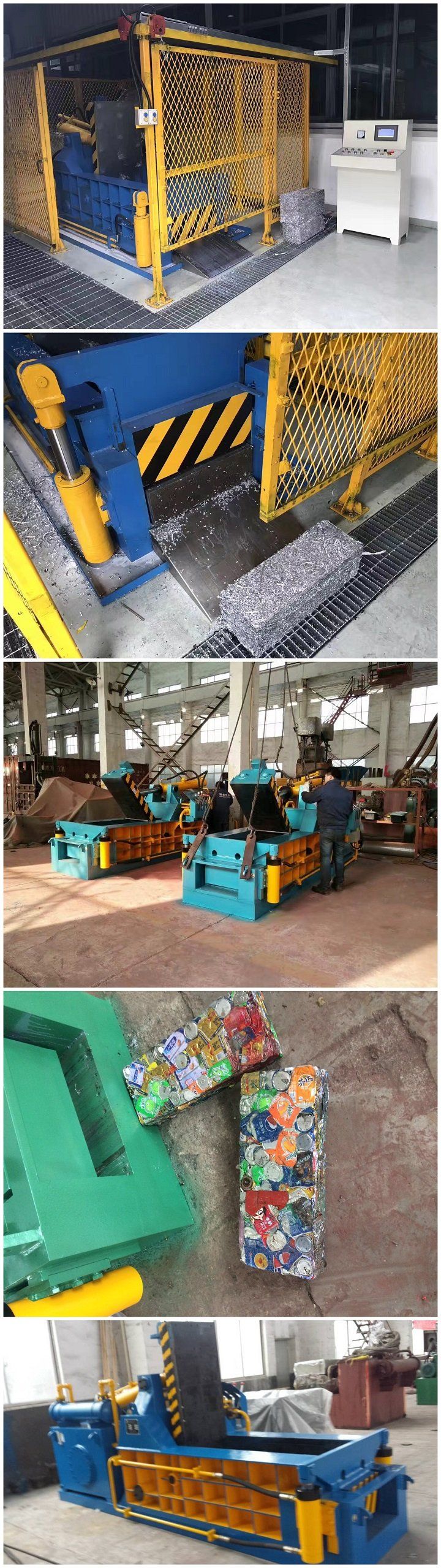

Metal Baler Machine Pictures

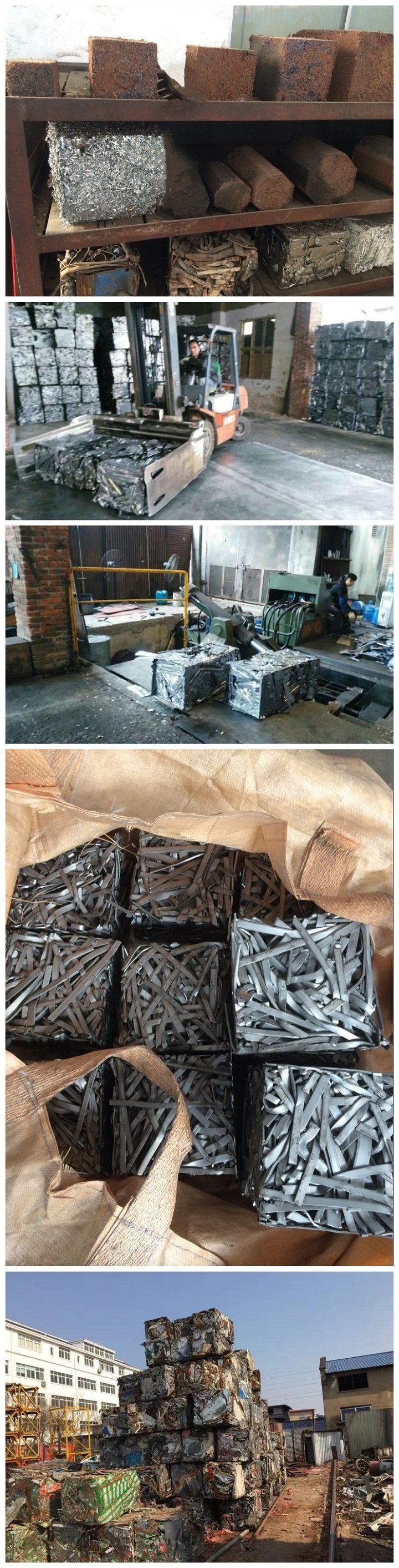

Metal Baler Bale/Block Picture
