Water Flow Sensor

Name: Water Flow Sensor
Brand: all-electronics-online.com
SKU: 752507585
Availability: InStock
Rating: 4.4 (92 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	All series of water flow sensor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Size:	1/2'', 3/4'', 1'', 1.25'', 1.5'', 2''

Product Description

1. Introduction of water flow sensor
The main water flow sensor by copper body and plastic forming, water flow rotor components, steady flow components and hall components. It into water dispenser, coffee machine and household appliances the water used for measuring the water flow.

When water flows through the rotor components, magnetic rotor rotating, and speed along with the flow of a linear change. Hall element output corresponding pulse signal feedback to the controller, the size of the flow of water by controller judgment, adjust proportional valve control of electric current.

Water flow sensor fundamentally solve the differential water-gas valve flap type high pressure and start water valve easy misoperation appear dry and shortcomings.It has reflected sensitive, long service life, action quick, safe and reliable, joins convenient traffic advantages such as the start low, deeply the general user affection.

2.Electrical & Technical Characteristic

Suffering Pressure	1.0MPa
Operate Temperature	-40~+150ºC
Min insulation Resistance	100M ohm
Precision	10~132L/min
Flow Pulse	F=18Q±5% Q=L/min
Mounting Position	Vertical or Horizontal
Output Pulse Duty Cycle	50%±10%
Max Output Pulse Voltage	>DC4.7V(input voltage DC5V)
Min Output Pulse Voltage
Electrical Life	1X107(5Vdc,10mA)
Body Material	PA66+30%Glass

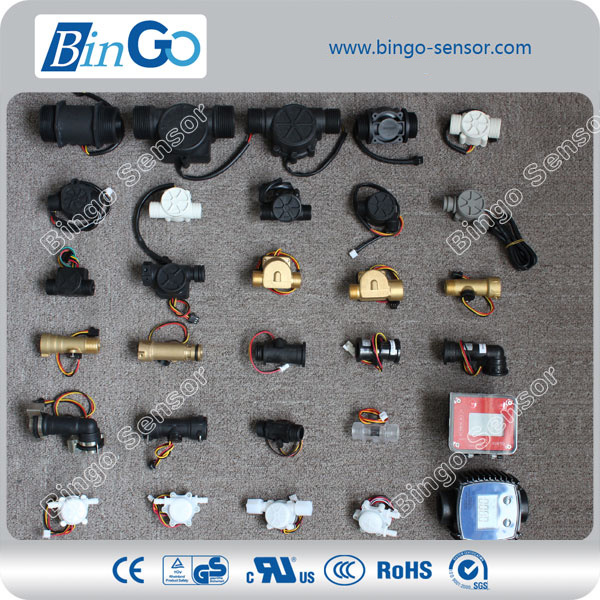

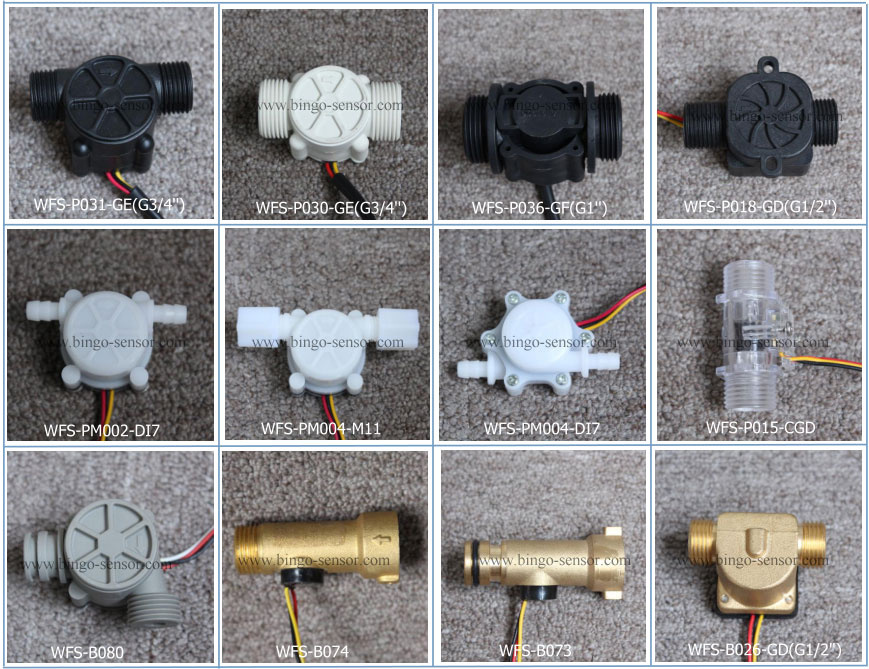

3.Simple introduction for some models:

4.Before the quotation, we need to know the following information:

1.Connection size and flow rate

Connection size will affect the price.

And we are not sure if the connection can meet your request of flow rate;

2.Temperature and pressure.

We can give you the suggestions of material accordingly.

Maybe a cheaper one is enough.

3.Quantity.

We will give you the discount according to the quantity.

5.Application:

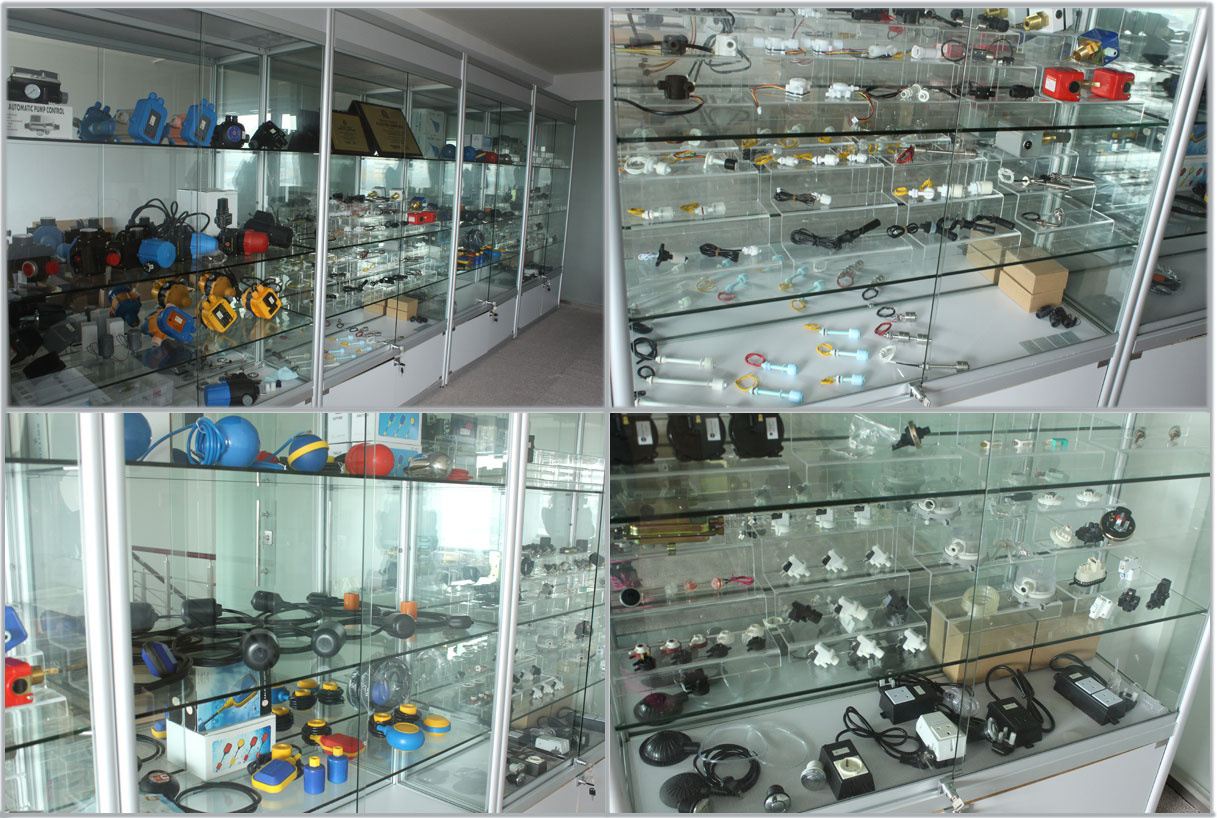

6.Sample room:

Bingo Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing ---- The world-famous city for low-voltage electric apparatus.

We owns followed two subsidiary corporations:

Bingo sensor Technology Co., Ltd. ----- concentrates on pressure, level and flow control product.

Yueqing tongfa electronic Co., Ltd. ----- is engaged in electronic&electrical product, security product.

After several years development, Bingo now becomes a professional supplier for

* Pressure, level and flow control product applied to:

Water supply system

HVAC

Household appliances (refrigerator, Furnace, heater, dish-washing machine,

Water dispenser, food waste disposer and so on)

Steam control system

Vehicle

Oil transporting system

Medical equipment

* Security product

Warning light

Roadway safety

Mining safety

Alarm sire

* Electronic&Electrical product

Tact switch

Micro switch

Toggle switch

Foot switch

Earphone jacket

Industrial plug&socket

With many years' business accumulation and good cooperation with more than 150 companies, we are capable to offer our clients products with the competitive prices, satisfied quality and excellent services. Part of our products own CE, UL, TUV certificate.

At present, Bingo Industrial and Trading Company has 50-60 employees. We have set up business relationships with customers from more than 50 countries and regions. Through running business honestly, we earned the reputation from both local government and oversea clients.

We strongly insist on the principle of "quick response, the best service, satisfactory quality, and competitive price", and sincerely hope that every customer around the world would have the feeling of "Bingo" after the first business cooperation with us.

Looking forward to a win-win relationship with you!
