Water Flow Switch in Different Material (SS, Brass)

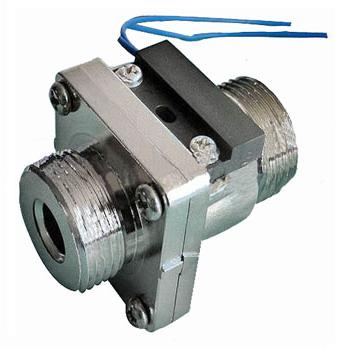

Name: Water Flow Switch in Different Material (SS, Brass)
Brand: all-electronics-online.com
SKU: 670509971
Availability: InStock
Rating: 4.4 (126 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS-M-PS021
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle:	Eddy Current
Connector Size:	G1/2"
Standard Flow Point(F:L/Min):	2.5---3.0---5---8---10
Working Voltage(V):	DC:6~48 AC:9~110V

Product Description

We are first class retailer, wholesaler, and exporter for Water Flow Switch FS-M-PS021 in China since 2009. Quick response, fast delivery.
Principle:
The flow switch uses patented technology which solves the problems of easily fatigue failure and low energy efficiency of the target type flow switches and flow switches, and so on. The flow switch is mainly used in the field of oil supply system of large-scale machinery and equipment, lubrication system, laser equipment, medical equipment, industrial chillers.
Characteristic:
> Liquid flow switch contacts start value is 2L/Min ~ 12L/Min, high-precision design.
> Use tap water or oil, no filters.
> Hinder of liquid flow in water pipes is very small, and can improve energy efficiency.
> No wearing fatigue pieces, long life, and need not be changed frequently
Note:
1. Horizontal and vertical installation, install according to the direction of the arrow, reverse is non-functional.
2. The equipment provides flow and non-flow monitoring, the set of flow point in the table is the minimum value required by the rising flow switch contacts closed; When the flow down to the flow point, it will open circuit.
3. The flowing liquid can't have filings, and the direction of flow of the liquid, is consistent with the direction of the arrow.
Technical Parameter:

Connector Size	G1/2"	G3/4"
	male/female	male only
Standard Flow Point(F:L/Min)	2.5---3.0---5---8---10
Working Voltage(V)	DC:6~48 AC:9~110V
Working Current(A)	0.5
Rated Power(W)	20
Working Temperature(ºC)	T1:-40~105
Suitable Medium	oil, water
Installation	horizontal, vertical
Material	alloy
EU RoHS / CE certification	Passed
