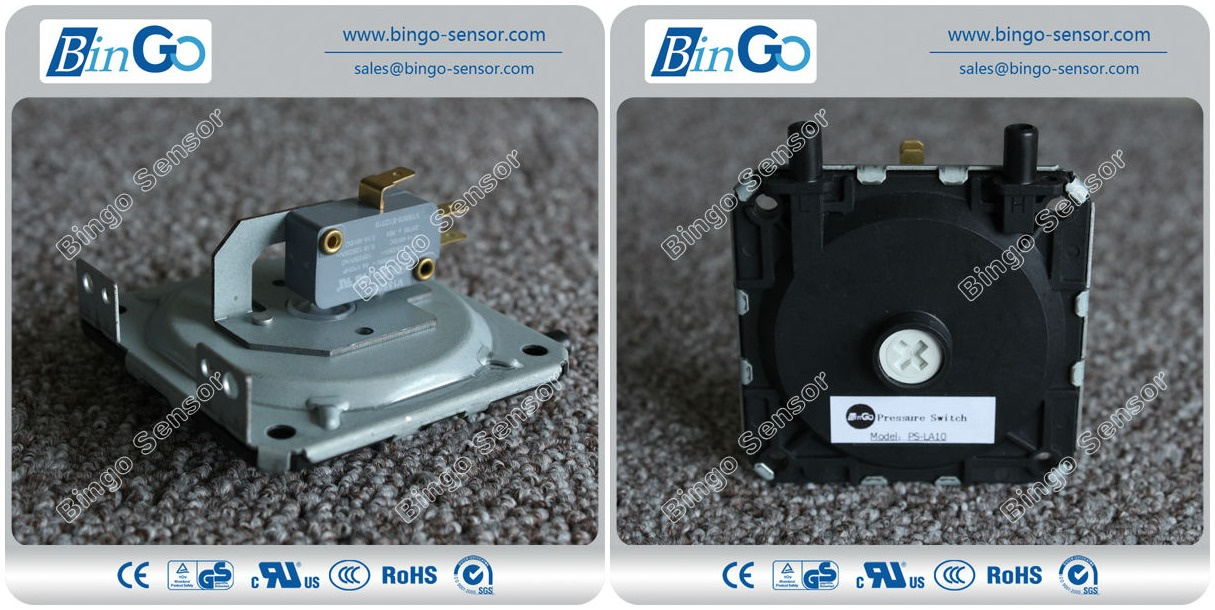

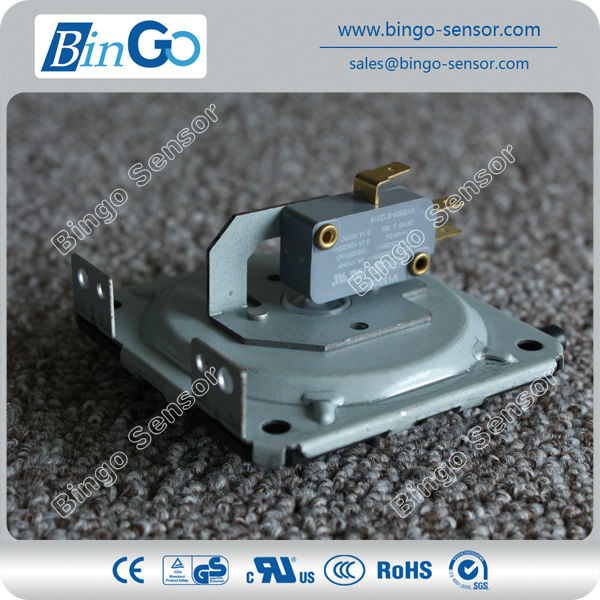

Water Heater Pressure Switch (LA-10) for Air, Combusted Product

Name: Water Heater Pressure Switch (LA-10) for Air, Combusted Product
Brand: all-electronics-online.com
SKU: 783810895
Availability: InStock
Rating: 4.4 (79 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS-LA10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Air,Combusted Product
Connection Size:	O.D.6,4mm
Electric Rating:	0.1A,3A,5A
Application:	Industrial
Contact:	Normally Close

Product Description

Gas pressure Switch PS-LA1

PS-LA10 offers pressure, vacuum and differential models capable of sensing very low setpoints, and switching current up to 5A resistive. Designed for use in the HVAC industry, where reliable air proving is critical to both performance and customer safety, it is a favorite with leading manufacturers of gas-fired warm air furnaces and water heaters

Product Show

Specification

Model	PS-LA10
Media	Air,combusted products
working pressure range	positive:0.6~5mbar negtive:-0.6~-0.5mbar
Diff.pressure	0.1~0.3mbar
Max.pressure	positive:10mbar negtive:-10mbar
Tolerance	±0.05bar or ±10% of set point (select bigger one)
Electric rating	0.1A,3A,5A,125/250VAC
Temperature	-20~85ºC
Contact	SPDT,SPST-N.O.,SPST-N.C.
Connection	O.D.6.4mm
Size	79.5x70.5x42mm
