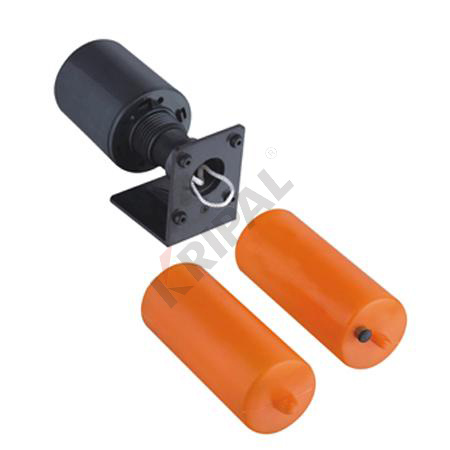

Water Level Switch (UKY-70AB)

Prod Model:	UKY-70AB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Water Level Switch

Power supply: 200VAC 50Hz
Ambient temperature: -30º C~+80º C
Power consumption: <1.5KW
Output making capacity: 220V AC 4A

The product it applies to industrial and mining enterprises and civil architecture, . And it is the equipment which controls pool

AALICATION
The product it applies to industrial and mining enterprises and civil architecture. And it is the equipment which controls pool, water tower, water box etc. Automatically. It has the advantages of sensitive response, accurate control, novelty and practicality, so it is the necessary water supply product of factories, hotel flats, buildings, houses and so on high buildings.

CONSTRUCTION PRINCIPLE:
The water level controller should be installed parallels inside the pool. And, a sealed terminal box is supplied inside the water level switch Terminals are installed inside the box, with locating piece hanging in temperature-resistant wire. After the water level switch being connected with power, and when water level decreases to 1/2 lower locating piece, the water pump to operate. When water level increases to 1/2 upper locating piece, the switch will cut off power automatically, so water Pump stops operating automatically, you can set the height of water level through the upper locating piece and lower locating piece by yourself, so the product can guarantee the water flows continuously.

BASIC ARAMETER
1. Power supply: 220vac 50Hz
2. Ambient temperature: -30-+80
3. Power Consumption: <1.5KW
4. Output making capacity: 220VAC4A

CHARACTERISTICS:
1. The product will prevent water from overflowing in pool, water tower and water box, which may result in waste. Besides, it can protect water pump against overload operation that may damage waterpump.
2. The product saves time for users. After connecting with power, it can manage and control the water without people
3. Long resistant time
