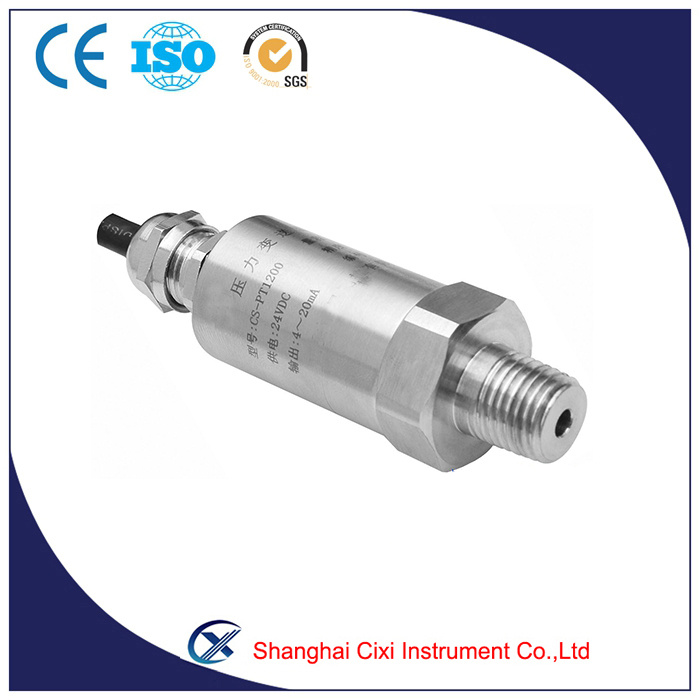

Water Pressure Sensor

Prod Model:	CXPTB-210
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Experience:	More 20 Years
Warranty:	One Year
Exported:	More 80 Countries
Medium:	Water,Oil,Gas,Steam
Range:	0-6bar(0-600bar)
Output:	4-20mA(Two Lines)
Power Supply:	24VDC
Temperture:	-40~80c
Electric Coupler:	Hirschman(DIN)
Process Connection:	M20*1.5

Product Description

High Accuracy  Pressure Sensor (CXPTB-210)

Description

CXPTB-210 series of pressure transmitters has been carefully designed to cover the majority of industrial applications with instruments readily available from stock. Compact design and robust construction make these instruments suitable for all application in machine construction, process control, laboratory or quality and materials testing equipment.

Application

Mechanical Engineering Industry
Hydraulic and level measurement
Gas tank pressure monitoring
Industrial test and control
General industrial applicastions
Feature

Various industrial standard signal output
Various electrical connector available
Certain stock for shortening delivery time
High accuracy, free of calibration
compact dimension design

Payment Terms
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.

Connector type1	Function	Color	5PIN	Connector type2	Function	Color
5PIN connector 0-5V; 0-10V 0.5-4.5V,1-5V	S+	Blue	1	Grand cable 0-5V; 0-10V 0.5/4.5V,1-5V	S +	Blue
	E+-	Red	2		E +	Red
	E-/S-	Black	3		E-/S-	Yellow/White
5PIN connector 1.5mV/V,2mV/V 3.33mV/V	S+	Blue	1	Grand cable 1.5mV/V,2mV/V 3.33mV/V	S+	Blue
	E +	Red	2		E +	Red
	S -	White	3		S -	White
	E -	Yellow	4		E -	Yellow
	C	Black	5		C	Black
5PIN connector 4-20mA	E+	Red	1	Grand cable 4-20mA	E+	Red
	S+	Black	2		S+	Black
Connector type3	Function	Color	4PIN	Connector type4	Function	Color	4PIN
Hirschman 0-5V; 0-10V 0.5-4.5V,1-5V	E+	Red	1	M12×1 connector 0-5V; 0-10V 0.5-4.5V,1-5V	E +	Brown	1
	S+	Blue	2		S +	Blue	3
	E -/S-	Black	3		E -/S-	White	4
Hirschman 4-20mA	E+	Red	1	M12×1 connector 4-20mA	E+	Brown	1
	S+	Black	2		S+	Blue	3
