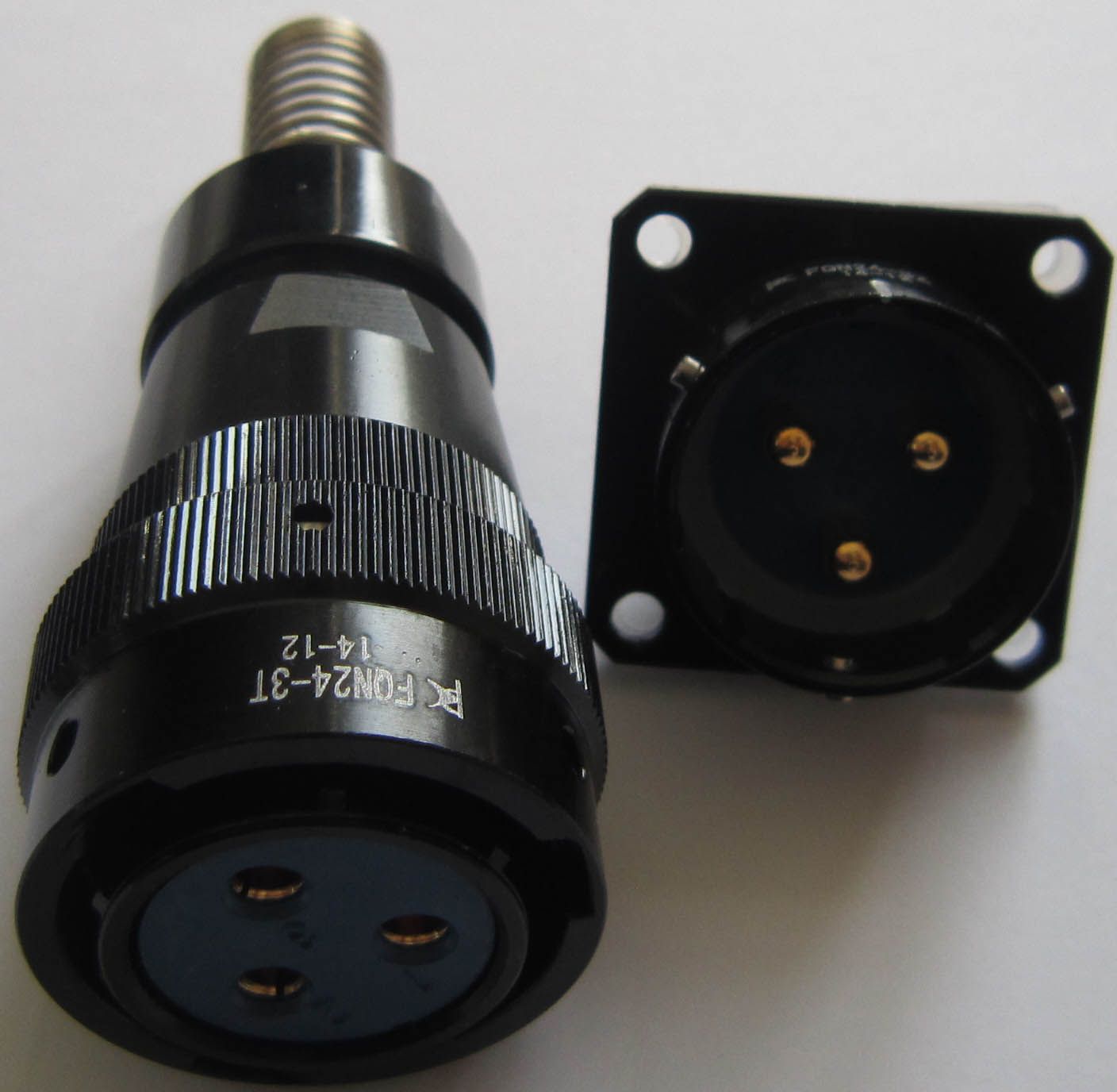

Water Proof 50A Current Power Connector

Name: Water Proof 50A Current Power Connector
Brand: all-electronics-online.com
SKU: 797983375
Availability: InStock
Rating: 5 (150 reviews)

Price:	US $ 24-28.5/Set
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQN24-3
Size1:	Fqn24-26
Size2:	Fqn24-19
Size3:	Fqn24-2
Size4:	Fqn24-4
Size5:	Fqn24-3
Size6:	Fqn24-10

Product Description

FQN series circular connectors can be useed in the water-proof place. We use the reliable cage clamp connection instead of the traditional wire spring. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof and strong seal etc. They are widely used for the electrical connection between electrical equipment. Meet RoHS. IP67

Product Ordering
FQN 24 - 3 T K- 12
1 2 3 4 5 6
1. Name of series: FQN
2. Shell size: 24
3. Number of contacts: 1, 2, 3, 4, 4A,6, 6A,10, 19, 26
4. T: Plug(TR: Angled plug), Z: Flange mounting receptacle, ZP: Cable receptacle, Z2: Receptacle with O ring, ZY: Circular recptacle
5. Type of contacts: K: Socket, J: Pin
6. Wire gauge: 6, 10, 12, 14
Technical characteristics
The connector is allowed to submerged in 1m deep water for 30min. (IP67)

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
