Water Proof Circular Aisg Connectors

Name: Water Proof Circular Aisg Connectors
Brand: all-electronics-online.com
SKU: 642395975
Availability: InStock
Rating: 4.4 (77 reviews)

Price:	US $ 9-10/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	UL E308558
Size:	Fs1-3
Size1:	Fs1-6A
Application:	Communication
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Round
Contact Termination Form:	Welding Connection
Production Process:	Machinizing
Brand:	Kaipu

Product Description

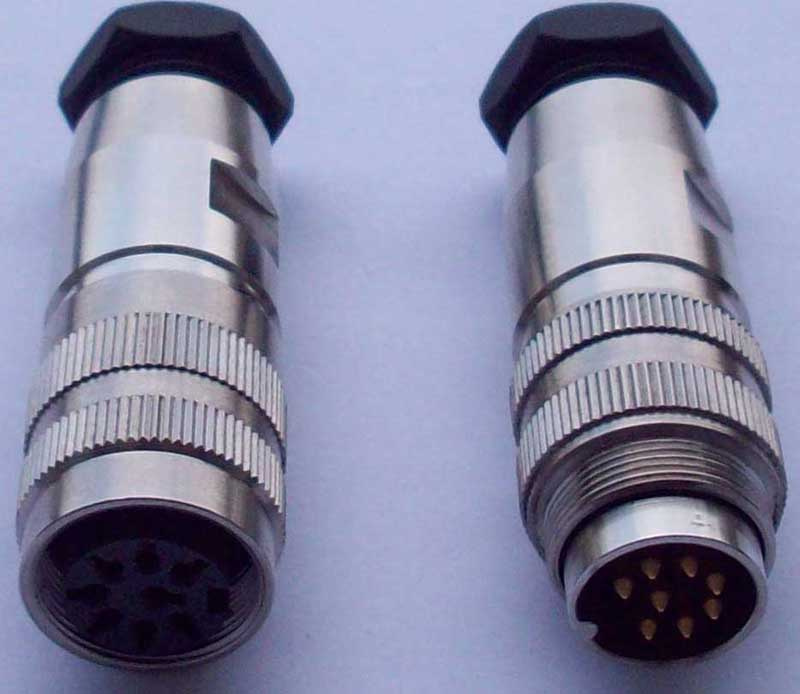

Water proof circular AISG Connectors,The connectors of series FS1 are available with 3-8 contacts, screw coupling, can interchange with Amphenol C 091 A /B/D & Binder 423 series. Meet DIN45326. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application. Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.UL certification : E308558.

Product Ordering

FS1 6 T J - 8 C

1 2 3 4 5 6

1.Name: FS1 type water proof connector

2.Number of contacts: 3,4,5,6,7,8 pcs

3.Connector type: T:Plug; Z1:circular receptacle,Z2:hexangular receptacle,

Z3:square receptacle,ZA: PCB mount receptacle

4.Contacts type: J:pin; K:socket,J1:Crimp pin,K1:crimp socket

5.Meet cable diameter: 6-9 mm

6.Protect cap: C:metal cap,C1:Hard Plastic cap,C2:soft plastic cap.

Technical characteristics

Temperature	Relative humidity	Vibration	Shock	Endurance
-55°C~ +85°C	90-95% at 40 ºC	10~1000Hz 196m/s²	490m/s²	1000 cycles
Contact	Current	Voltage	Contacts resistance
Φ1.5	7A	60-250V AC	≤3mΩ

Dimensions and outlook:

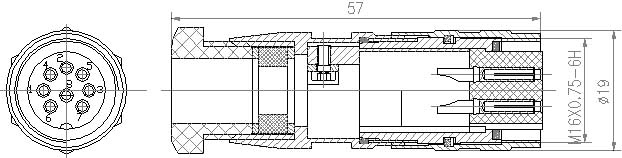

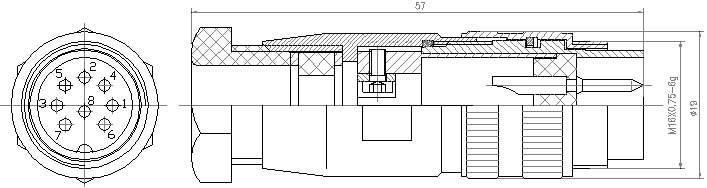

2.Plug:Solder contacts plug:FS1-8TK/FS1-8TJ:

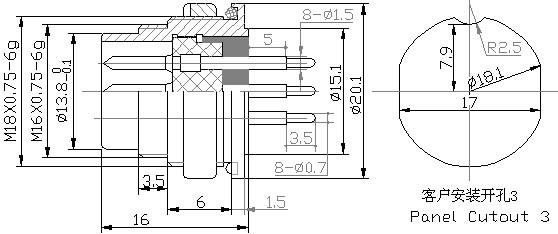

Circular Receptacle with PCB mount contacts:PCB-Z1JA/Z1KA

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
