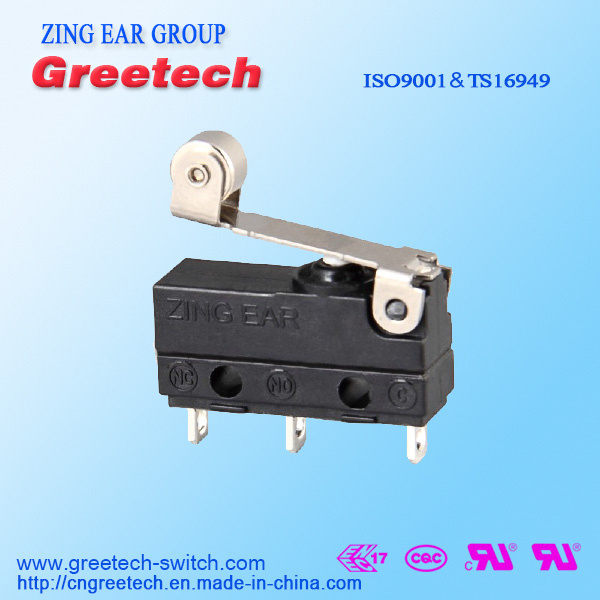

Water Proof (IP67) Sealed Mini Micro Switch Used in Auto Control

Name: Water Proof (IP67) Sealed Mini Micro Switch Used in Auto Control
Brand: all-electronics-online.com
SKU: 718395402
Availability: InStock
Rating: 4.6 (146 reviews)

Price:	US $ 0.419-0.645/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Protection Level:	IP00
Max. Current:	6A
Max. Voltage:	125/250VAC
Electrical Life:	500,000 Cycles
Mechanical Life:	10,000~1,000,000 Cycles
Terminal Type:	Solder Terminals(Other Types for Option)
Company Assurance System:	ISO9001 & Ts16949
Lever Type:	Push Button
Circuit Code:	Spdt
Pressing Type:	Push-Button
Protection:	Dust-Proof
Size:	Normal Size
Environment:	≧250℃﹤400℃
Breaking Capacity:	General Type
Breaking Form:	Single Type
Application:	Car,Phone,Computer,Timer ,etc.....
Brand:	Zing Ear
Certification:	cUL ENEC CQC

Product Description

Rating

ENEC/UL:0.1A 125/250V 48VDC Gold Plated Contact Optional

ENEC:5A 125/250VAC;UL:5A 1/8HP, 125/250VAC

ENEC:10(1.5)A 125/250VAC;UL:10.1A 1/4HP 125/250VAC

Operating Frequency

Electrical

10~30 cycles/minute

Mechanical

120 cycles/minute

Contact Resistance (Initiative)

100m ohm Max

Insulation Resistance(at 500VDC)

100MΩ Min.

Dielectric Strength

AC 1,000V RMS (50-60Hz)

Operating Temperature

-40°C~+125°C or -40°C~+85°C

Storage Humidity

85%RH Max

Service Life

Electrical

10,000~100,000cycles(Depend on part number)

Mechanical

1,000,000cycles

NO.	Greetech Product	Inner Box			Shipper Carton			MPQ
		Inner box size(mm)	Q'ty/	Total GW(kgs)	Carton size(mm)	Q'ty/ctn	Total GW(kgs)	MOQ	L/T	Total GW(kgs)
		Inner box size(mm)	(pcs)	Total GW(kgs)	Carton size(mm)	(pcs)	Total GW(kgs)	(pcs)	(Days)	Total GW(kgs)
1	G3 series(terminal type)	310x215x135	3,360	3.9	440x325x300	13,440	15.3	1,000	15	1.2
2	G5 series	310x250x120	600	5.5	330x270x270	1,200	10.8	1,000	15	9
3	G5W11 series	310x215x135	200	4.8	440x325x300	800	19.2	100	10	2.5
4	G6 series	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
5	G9 series(terminal type)	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
6	G91 series	290x192x40	500	1.3	400x305x220	5,000	12.5	1,000	15	2.7
7	G10 series	290x192x40	600	1.3	400x305x220	6,000	12.5	1,000	15	2.7
8	GT02 series	210x155x55	300	1.2	440x325x285	6,000	12	6,000	15	12
9	GPS100 series	/	/	/	330270270	60	6.1	60	10	6.1
10	Switch with wire leads	310x215x135	100	1.8	440x325x300	800	14.5	800	20	14.5

Huizhou Greetech Electronics Co., Ltd. Which focuses on R&D and manufacturing of various micro switches, auto switches, waterproof switches, air pressure switches, mechanical keyboard switches, precise auto parts, mobile phone connectors, and various kinds of contact modules and terminal components. The annual output of switches & connectors is about 160 millions pieces.

GREETECH belongs to Zing Ear Group, and started to run independently since 2007 year. Now we have about 500 staffs working at about 10, 000 factory buildings. Our main engineers have professional R&D experiences in the lines of switches & connectors for 8 to 20 years. All of our products are safety approved by UL, cUL, ENEC & CQC. Our products are certified with ISO9001 and ISO/TS16949 quality assurance system. We have our own team to research and develop automatic assembly & testing equipments. Presently over 80% of our products are produced & tested by automatic equipments, aiming to ensure the consistency of quality.

Nowadays, Greetech set up a complete one-stop R&D and Production System including: Products & process R&D, precise tooling, molding injection, stamping and automation equipment R&D, finish goods assembly & testing.

Dedication, Passion, Integrity, Embracing Change, Team Cooperation, Customer First are our core values.

Serving our customers well, Developing our people for growth, Return on capital and Contribution to Society are always our mission.

Contace us today for more information.
