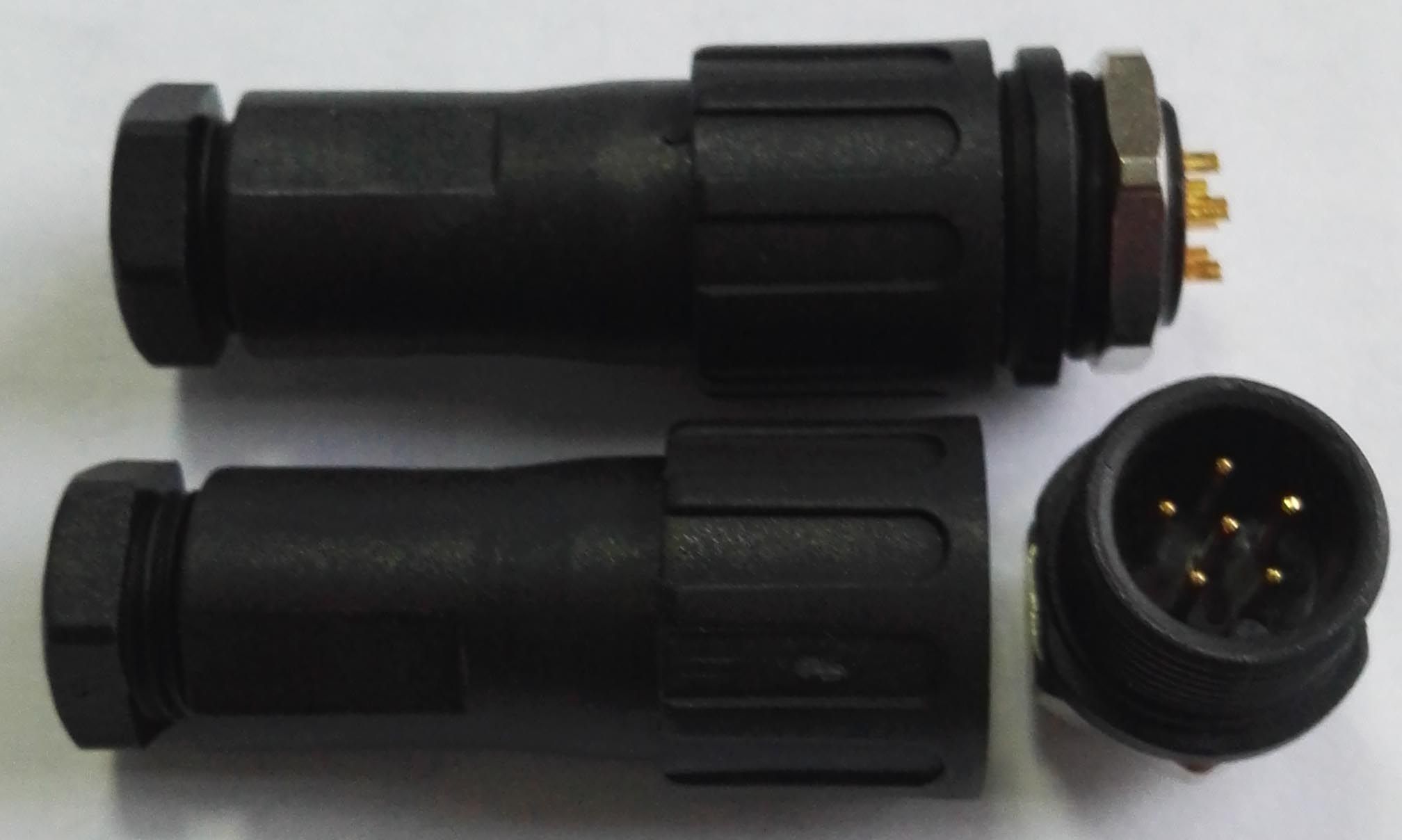

Water Proof IP68 6 Pins Connector

Name: Water Proof IP68 6 Pins Connector
Brand: all-electronics-online.com
SKU: 702698282
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 1.98-2.8/Set
Trade Terms:	FOB
Min Order:	100/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS2-6T+6ZP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Form:	Cable to Cable Plug
Value:	Cheaper
Metarial:	Plastic
Size:	Fs2-6t-6
Size1:	Fs2-6zp-6
Protection:	IP68

Product Description

Plastic plug, water proof plug, FS2 series circular connectors made of plastic shell, It can be useed in the water-proof place. We use the reliable cage clamp connection instead of the traditional wire spring. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof and strong seal etc. They are widely used for the electrical connection between electrical equipment. It has protection IP68., KP22(FS2) can be used under water 1m. Meet CE, RoHS.UL certification:E308558.
Product Ordering
FS 2 - 3 T - 6
1 2 3 4 5
1. Name of series: FS
2. Design No.: 2
3. Number of contacts: 2, 3, 4, 5,6
4. T: Plug with sockets, Z: Receptacle with pins, ZP: Cable receptacle with pins
5. Wire gauge: 5, 6, 7

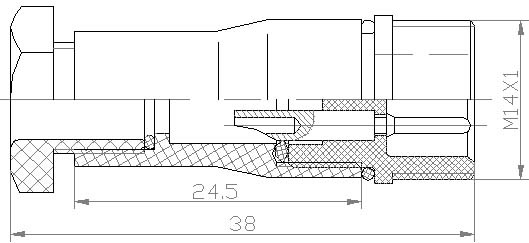

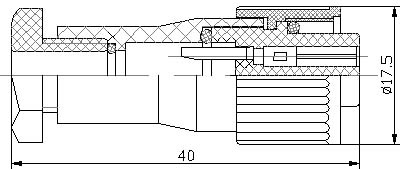

The drawing of cable plug and cable receptacle:

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
