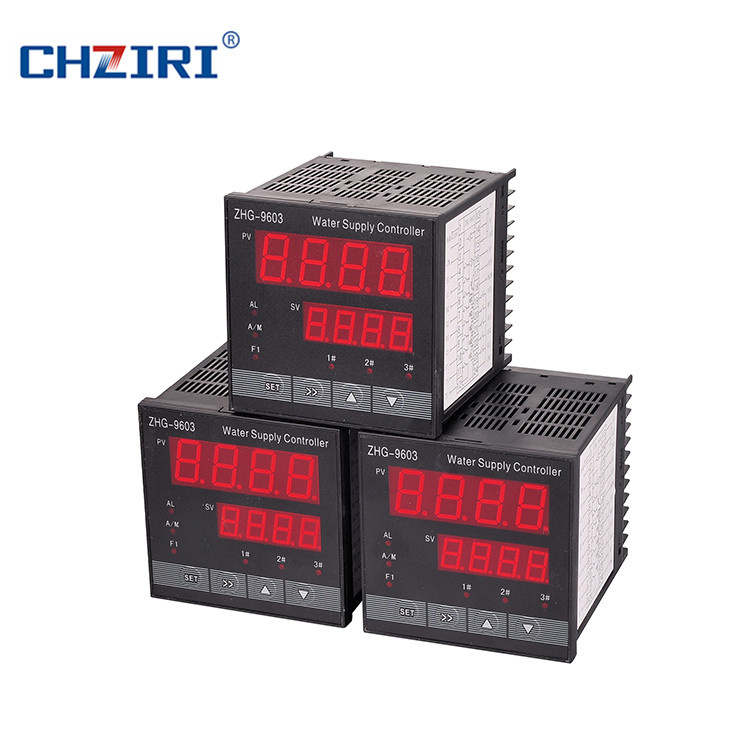

Water Pump Intelligent Controller Zhg-9603

Prod Model:	ZHG-9603
Input Power Specification:	Single Phase 220VAC 50Hz 60Hz
Digital Input Signal:	Level Signal Low Level Is Actual 5mA
Digital Output Signal:	Max. Load Current I≤50mA
DC Output Power 1:	5V 100mA 10V 50mA 24V 30mA
DC Output Power 2:	10V 10mA
Type:	Electronic
Application:	Industrial
Explosion-proof Type:	Non Explosion-proof
Structure:	Ply Controlle Constant Pressure Water Supr
Contact:	Automation Control System
Contact Type:	Automation Control System
Detection Method:	Automation Control System
Brand:	Chziri

Product Description

ZHG-9603 Series Constant Pressure Water Supply Controller
Constant Pressure Water Supply Controller  is specialized for constant pressure water supply pump variable frequency controller. The constant pressure water supply controller can make the water supply system run steadily and reliably, and realize a true automatic cycle pump and variable frequency operation. to ensure the optimal running efficiency of each water pump and the stable operation of the equipment start smoothly.Eliminates high-current shocks and lowers the pump's average speed, extending pump life and eliminating water hammer during start-up and shutdown.

Main features
1. Include 3 units main pumps & one unit small pump, it has multiple controlling mode and meets all kinds of complex requests of water supply.
2. Timing change pump function, balance all kinds of  pumps' working time .  improve the average life of the pumps.
3. Up to 8 periods pressure control, and each period can be set any pressure setting control .and realize the timer  ON/OFF function .
4.Sleep function and auxiliary small pump function, save energy and reduce consumption , extend machine's life.
5. Positive and negative feedback function , can be used for water supply, but also can be used to pump water and  maintain the water level.
6.Over-pressure, low water level, sensor disconnection, inverter failure and  alarm control functions ect.
7.Feedback can connect with  passive remote pressure gauge, active voltage and current transmitter.
8. Feedback device power 0-24V can be modified, stronger commonality.
9. Feedback signals can be selected .it  is more convenient to connect with outer .
10. Standard 0-10V voltage output, can also be arbitrarily modified to other voltage values, the application will be  more flexible.
11.when the inverter get failure,The controller can choose the automatic transfer to the working frequency running  (pressure range control)
12 .Relay fault output function can be selected.
13. Strong adaptable, applicable to various brands frequency  inverter at home and abroad.
14.All digital signal use photoelectric isolation, strong interference ability .
15.With complete key function.

1.Technical Indication



Item	Item Description
Input Power Specification	Single phase 220VAC±5%, 50Hz/60Hz
Digital input signal	Level signal,low level is actual,5mA
Digital Output Signal	Max. load current  I≤50mA
DC Output Power 1	5V/100mA,10V/50mA,24V/30mA
DC Output power 2	10V/10mA,
Reply Output Signal	Contact rating:250VAC/3A,30VDC/1A
Analog input Signal	10V/10bit
Analog Output Signal	10V/10bit
Ambient Temperature	-10~+50ºC
Humidity	20~90%RH,No condensation of water droplets
Vibration	< 0.5G
Outline  Dimension(W*H*T)	96mm*96mm*110mm



ZHG-9603 Series

Constant Pressure Water Supply Controller Fast Setting

For the setting method of the controller, Please see page 6 and 7 of the manual. The working mode is shown in the following parameter settings:
For example:Meter range is 1.6Mpa, users request is set to 1Mpa constant pressure, the controller will start if pressure <0.6Mpa.
1, One inverter run with one motor,The parameters are set as follows:

  The setting pressure :             F000=1.00
  over-pressure alarm pressure:       F004=1.30
  Meter range:                    F012=1.60
  Sleep frequency:                 F029=30.0
  Wake-up pressure width:F031=0.40 <(F000-F031=0.60this pressure wake up,it will start the  inverter.

  Pump 2 property:          F042=0
  Pump 3 property:          F043=0
 One Inverter run with two motors . parameter are set as below:
  The setting pressure :           F000=1.00
  Over-pressure alarm pressure:       F004=1.30
  Meter range:             F012=1.60
  Increase pump pressure threshold width:
 F022=0.05 <(F000-F022=0.95Mpa)the pressure wake up,
and frequency up to 50HZ, to add pump after deferring

  Reduce pump frequency:           F025=35.0
  Sleep frequency:           F029=30.0
Wake-up pressure width: F031=0.40 <(F000-F031=0.60)the pressure wake up .start the inverter .
  Pump 3 property:          F042=0
3,One Inverter run with three motors . parameter are set as below:
  The setting pressure:           F000=1.00
  Over-pressure alarm pressure:       F004=1.30
   Meter range:                    F012=1.60
  Increasing pump pressure threshold width:
F022=0.05 <(F000-F022=0.95Mpa) the pressure wake up, and frequency
up to 50HZ, to add pump after deferring.

  Reduce pump frequency:           F025=35.0
  Sleep frequency:           F029=30.0
Wake-up pressure width:  F031=0.40  <(F000-F031=0.60)less than awaking .Run VFD.

Small Pump setting as below:

With auxiliary pump:
Small pump starting pressure width:   F034=0.08     equal (F000-F034=0.92), sleep status,small pump  will start if less than the pressure .
Small pump stop pressure width:   F035=0.05     equal(F000+F035=1.05),at sleep status,small pump will stop if bigger than the pressure.

Without auxiliary pump:
F033=0;(also can remain and do not change )
See page 4-5 for terminal wiring diagram,Feel free to contact for control circuit wiring diagram from our company .
