| Prod Model: |
PS-W40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
1/4" Male/ Female NPT |
| Contact Arrangement: |
Nc |
| Type: |
Mechanical |
| Application: |
Industrial |
| Explosion-proof Type: |
Intrinsically Safe |
| Contact: |
Normally Close |
| Brand: |
Bingo |
Product Description

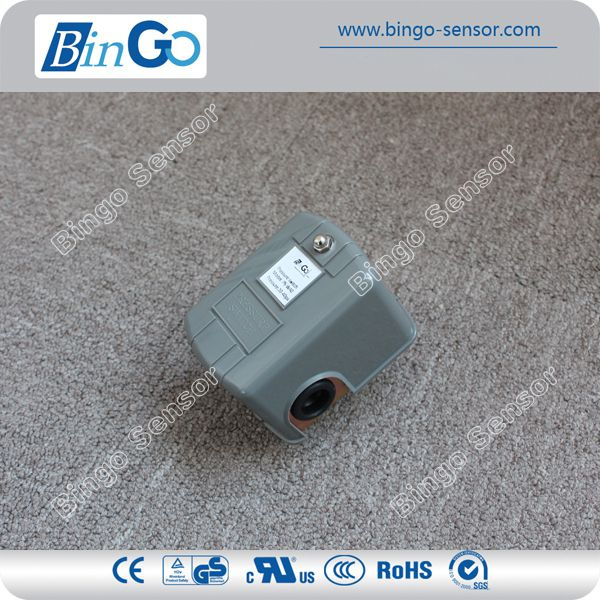

Jet Pump Pressure Switch
1. Introduction:
We are wholesaler and exporter for water pump pressure switch/control in China since 2009. Quick response, fast delivery.
Water Pump Pressure Switch PS-W40 provide continual, reliable control for automatic water systems. The switch is universally acceptable for use as original equipment on water pumps or pumping systems.
2. Technical Data:
Conversion: 1Kgf/cm2 = 14.2PSI, 1bar = 14.5PSI
| MODEL | Medium | Min ON (Cut-In) (PSI) | Max Off (Cut-Out) (PSI) | Differential (PSI) | Factory Setting (PSI) | Electrical Rating | Connection | Contact Arrangement |
| 120VAC 1 phase | 240VAC 1 phase | 240VAC 3phase |
| PS-W40-1 | Water | 20 | 80 | 15-30 | 20-40 | 2HP | 3HP | 5HP | 1/4" Male/ Female NPT | NC |
| 15-30 | 30-50 | 2HP | 3HP | 5HP |
| 15-35 | 40-60 | 2HP | 3HP | 5HP |
| MODEL | Medium | Min ON (Cut-In) (PSI) | Max Off (Cut-Out) (PSI) | Differential (PSI) | Factory Setting (PSI) | Electrical Rating | Connection | Contact Arrangement |
| 120VAC 1 phase | 240VAC 1 phase | 240VAC 3phase |
| PS-W40-2 | Water | 20 | 80 | 15-30 | 20-40 | 1.5HP | 2HP | 3HP | 1/4" Male/ Female NPT | NC |
| 15-30 | 30-50 | 1.5HP | 2HP | 3HP |
| 15-35 | 40-60 | 1.5HP | 2HP | 3HP |
3. Our service:
1. Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
4. Guarantee:
1.12 months warranty for most of our products;
2. We will arrange delivery of the goods on time;
3. Within the warranty period, we will bear all the quality problem of our products;
4. Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5. Without any problem, we will gain the feedbacks of our products to help improve better products.
5. How to get latest price from us quickly:
The following technical data is need you to show to us.
1. The working temperature:
2. The workiing pressure:
3. The quantity you want to purchase:
4. Where you use the products to:
If you need more information, please feel free to contact us: www.bingo-sensor.com
