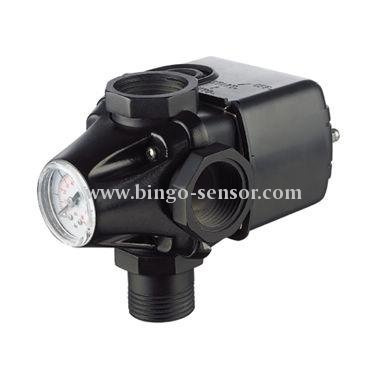

Water Pump Pressure Switch PS-W90

Name: Water Pump Pressure Switch PS-W90
Brand: all-electronics-online.com
SKU: 670488331
Availability: InStock
Rating: 4.4 (90 reviews)

Price:	US $ 1-20/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS-W90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contacts:	Normally Open
Application:	Industrial
Type:	Mechanical

Product Description

We are first class retailer, wholesaler, and exporter for Water pump pressure switch PS-W90 in China since 2009. Quick response, fast delivery.
Introduction:
1. Pressure switch used in water systems.
2. The switch start and stop the water pump automatically according to the setting pressure value.
3. Composed of pressure switch, five way and pressure gauge
4. Joint screw: 1 way G1"male+2 way G1" Female.
5. Customized setting.
Optional:
1. Crust according to customers' needs.
2Hydraulics connection according to customers.
3. Pressure setting according to customers' needs.

Technical Data:
Conversion: 1Kgf/cm2= 14.5 PSI, 1 Bar = 14.5 PSI

Pressure Range	20-100psi
Preddure Setting	20-40psi\30-50psi\40-60psi\50-70psi\60-80psi\70-100psi
Rated Current	12A
Rated Voltage	110V-240V
Frequency	50/60Hz
Max Ambient Temperature	40ºC
Protection Degree	IP20
