Water Source Heat Pump Air Conditioner, Water to Air

Name: Water Source Heat Pump Air Conditioner, Water to Air
Brand: all-electronics-online.com
SKU: 832011585
Availability: InStock
Rating: 4.4 (75 reviews)

Price:	US $ 699-999/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLLS
Heating Capacity:	10.1kw-95kw
Power Supply:	380V/3pH/50 Hz
Refrigerant:	R407c
Wqrking Mode:	Heating Mode and Cooling Mode

Product Description

water source heat pump air conditioner, water to air

Features of water source heat pump

1. Air Coil: Die formed plate type aluminum fins mechanically bonded to high efficiency inner grooved copper tubes.

2. Galvanized steel construction, closed cell foam lined compressor and fan compartments, with an insulated and powder coated drain tray for complete moisture protection.

3. The units are well insulated to minimize condensation and attenuate noise.

4. Units are fitted with a high and low pressure lockout protection.

5. Each unit is intelligently controlled by PC as split model through remote and line control; Or at most 32 units can be controlled centralized also.

6. When the system is used for rent apartment or office building, shops and residential compartments, each unit can have independent ammeter.

Parameter of water source heat pump

Model HLLS-				10H	11H	20H	24H	41H	50H	54H	71H	95H
Specifications	Heating input power	Heating	KW	2.08	2.33	4.22	5.02	8.48	10.1	11.2	14.8	19.8
	Heating capacity		KW	10.1	11.3	20.4	24.2	41.1	48.8	54.2	71.2	95
	Max outlet water temp		Degree	60	60	60	60	60	60	60	60	60
	COP			4.86	4.85	4.83	4.82	4.85	4.83	4.84	4.81	4.80
	Cooling input power	Cooling	KW	1.71	1.62	2.8	3.4	3.7	5.6	6.8	11.2	13.2
	Cooling capacity		KW	9.64	9.64	15.9	19.2	21.4	31.8	38.4	63.6	74.1
	Min outlet water temp		Degree	2	2	2	2	2	2	2	2	2
	EER			5.64	5.95	5.68	5.65	5.78	5.68	5.65	5.68	5.61
	Water flow of load side		L/h	2100	2100	3200	3800	4800	6200	7300	12400	19800
	Water flow of source side		L/h	1800	2010	3650	4300	7294	8653	9615	12611	16815
	Pipe size		mm	25	25	25	25	25	32	32	50	65
	Noise		db	50	50	50	50	50	55	55	55	55
	Net weight		kg	90	90	125	135	280	300	372	482	582
	Gross weight		kg	96	96	135	145	295	320	412	532	642
	Level of protection			IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
	Electric shock proof grade			I	I	I	I	I	I	I	I	I
Standard components	Cabinet			Galvanized sheet/ Spray coating / gray color
	Dimension		mm	1280830800	1280830800	1280830800	1280830800	1280830800	1280830800	14001120900	17501120900	20001120900
	Packing dimension		mm	1340890950	1340890950	1340890950	1340890950	1340890950	1340890950	146011801050	181011801050	206011801050
	Refrigerant			R407C/2.4kg*1	R407C/2.4kg*1	R407C/3.3kg*1	R407C/3.6kg*1	R407C/3.3kg*2	R407C/3.6kg*2	R407C/5kg*2	R407C/7kg*2	R407C/9kg*2
	Power supply			220V/50Hz/1ph	380V/50Hz/3ph
	Power supply L wire line		Mm2	2.5	2.5	4	6	6	6	10	10	16
	Power supply N wire line		Mm2		1.5	2.5	2.5	2.5	2.5	4	4	6
	Compressor model			ZW30KAE	ZW34KAE	ZW61KAE	ZR72KCE	ZR81KCE	ZW61KAE	ZR72KCE	ZW108KAE	VR144KSE
	Compressor			Copeland 1pc				Copeland 1pc		Copeland 2pcs
	Load side HE			Double-pipe heat exchanger						shell and tube heat exchanger
	Source side HE			Shell and tube heat exchanger
	4-way valve			SHF-11-45D1*1	SHF-11-45D1*1	SHF-20A-46*1	SHF-20A-46*1	2SHF-20A-462	2SHF-20A-462	2SHF-20A-462	2SHF-35A-792	2SHF-35A-792
	Thermal expansion valve			Emerson 3Ton	Emerson 3Ton	Emerson 5Ton	Emerson 6Ton	Emerson 5Ton*2	Emerson 6Ton*2	Emerson 7.5Ton*2	Emerson 10Ton*2	Emerson 12Ton*2
	AC contactor and thermal relay			Fuji
	Controller			SPRSUN multiple function controller
	Protection function			Tempreature protection, time protection, water flow protection, antifreeze protection, current protection
	Water pressure switch			0.015Mpa :OFF, 0.03Mpa: ON
	High pressure switch			3.0/3.4MPa
	Low pressure switch			0.15/0.32MPa
	Package			Plywood case
	Working mode			heating mode and cooling mode

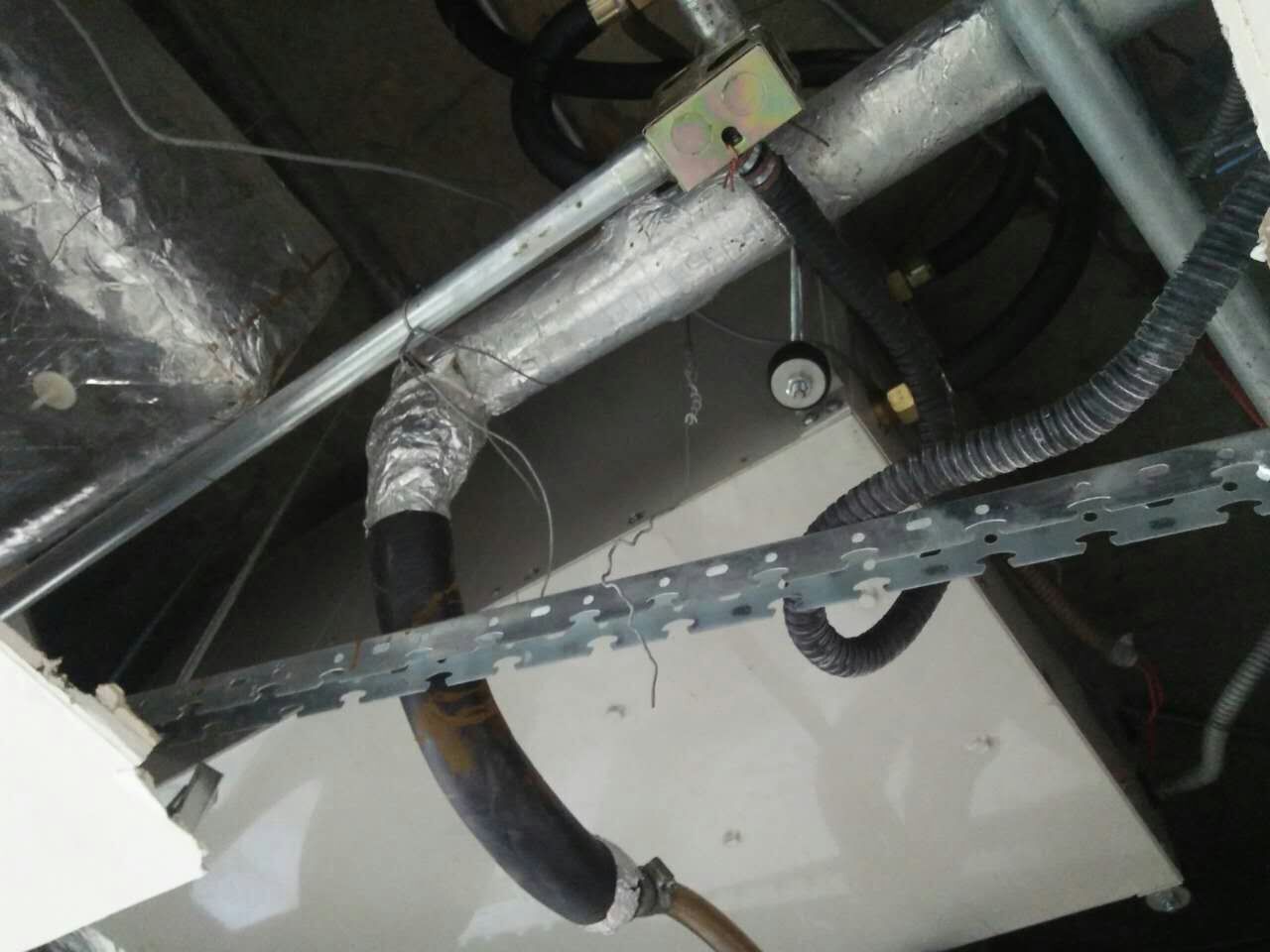

Photos of water source heat pump

HUALI certificate

HUALI information

Shenzhen Jinhuali Refrigeration Plant Co.,Ltd has more than 15 years of experience in producing all kinds of industrial and commercial use chiller,terminal unit of chiller(fan coil unit), and supporting the production of variety industry model selection, making scheme based on the project details provided by customers.set comprehensive enterprise product design, manufacturing, installation and repair.
Main products: Industrial / Commercial water chiller, Condensing unit, Fan coil unit.
Air cooled water chiller: Screw type, Scroll type, Low temp. High temp.
Water cooled water chiller: Screw type, Scroll type, Flooded type, Centrifugal type, Magnetic type
Condensing unit: Air cooled/Water cooled/Mono-block/Split type

FAQ

Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following: 1)Cooling capacity; 2) Refrigerant; 3)Heatling capacity; 4)Voltage; 5)Any other special requirements?

Q2: How to ensure your product with good quality?
A2: All our products with CE certificate.

Q3: What's the warrenty?
A3: 1 year warrenty for free if confirmed by both side damage in the quality reason.

Q4: Are you a manufacturer?
A4: Yes, we have more than 10 years in heat pump business. Also have patent on the heat pump appearence.

Q5: How can I place an order?
A5: Contact us via made in china /Email/Mobile for further informations on the chiller.
