Water Tank Float Switch

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Mode:	Optional
Float Ball Size:	Optional
Temperature:	-20~100c
Switch:	Nc/No
Power Supply:	220V
Accuracy Error:	±2mm (in Water)

Product Description

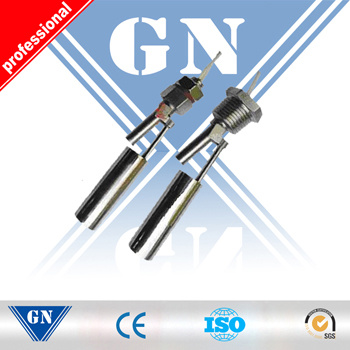

water tank float switch

Brief introduction
1.Adopt SUS304/316 stainless steel ,simple structure
2.Simple structure , conveniently usage's level control parts
3. It has high temperature resistance, long working life ,stable performance
4.Mainly used in hot water inside the appliance or mechanical ,such as water heaters ,water dispenser ,dishwasher ,electric water ,oil compressor ,air compressor and other mechanical equipment



Main parameters

Installation	Top or bottom-mounted (vertical +/-20 ºC)
Screw	M10,can customize inG1/8"
Electric connection	300mm, UL1430 AWG22
Bar material	SUS304
Float material	SUS304
Working pressure	6 Bar
Working temperature	-10~80ºC
Accuracy	+/-2mm (in the water)
Switch type	N.C./N.O
Switch power	10W/50W
Work voltage	220VAC
Working current	0.5A/0.7A
Repeatability	+/-1mm (in the water)
Working life	1000000times
Float dimension	Dia.28 * dia.9.50*28

After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
