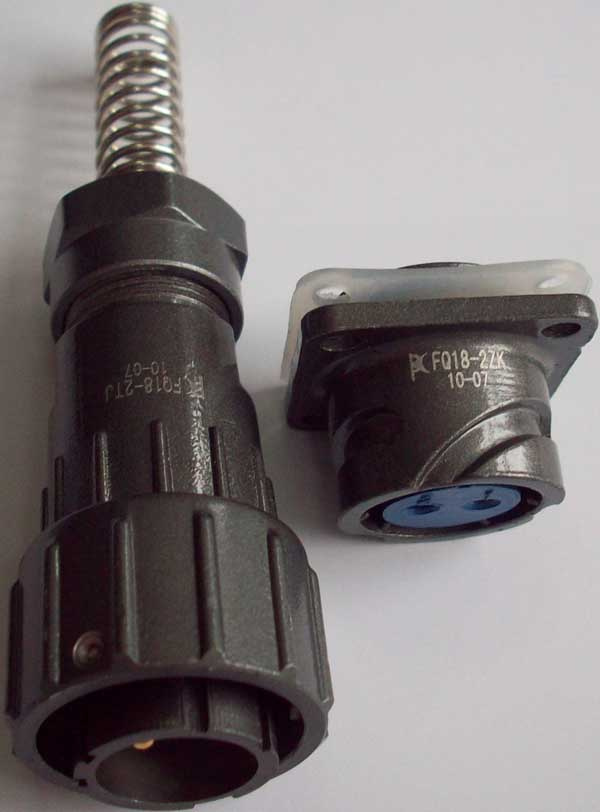

Water Tight Fq18 Series IP67 Power Connector

Name: Water Tight Fq18 Series IP67 Power Connector
Brand: all-electronics-online.com
SKU: 668364885
Availability: InStock
Rating: 4.6 (102 reviews)

Price:	US $ 4.4-5.5/Set
Min Order:	10/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQ18-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Water Proof Connector
Item:	Fq18-2zk
Item1:	Fq18-3-2tj-8
Item2:	Fq18-2tj-10
Item3:	Fq18-2t-9
Item4:	Fq18-2tr-9

Product Description

FQ series circular connectors can be useed in the water-proof place. We use the reliable cage clamp connection instead of the traditional wire spring. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof and strong seal etc. They are widely used for the electrical connection between electrical equipment...

Product Ordering
FQ/ 18 /- 2 /T/ K/ -8
1 /2 / 3 / 4 /5 /6
1. Name of series: FQ
2. Shell size: 18
3. Number of contacts:1, 2, 3, 4, 5, 6, 7, 12
4. T: Plug(TR: Angled plug), Z: Flange mounting receptacle, ZP: Cable receptacle, ZPY: Circular cable receptacle, Z2: Receptacle with O ring, ZY: Circular recptacle
5. Type of contacts: K: Socket, J: Pin
6. Cable gauge OD: 6, 7, 8, 9, 10
Technical characteristics
The connector is allowed to submerged in 1m deep water for 30min. (IP67)

Temperature	Relative humidity		Atmosphere		Vibration		Shock
-55°C~+85°C	(90~96)% at40°C		4.4KPa		10~200Hz,150m/s²		490m/s²
Current		Voltage		Contact resistance		Endurance
2A~5A		250V		≤ 10mΩ		500cycles
10A-25A		400V		≤ 5mΩ		500cycles

Environment	Voltage proof	Insulation resistance
Normal	1200V	≥ 1000MΩ
High temperature	1000V	≥ 500MΩ
Moisture	800V	≥ 100MΩ
Low pressure	400V	-

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
