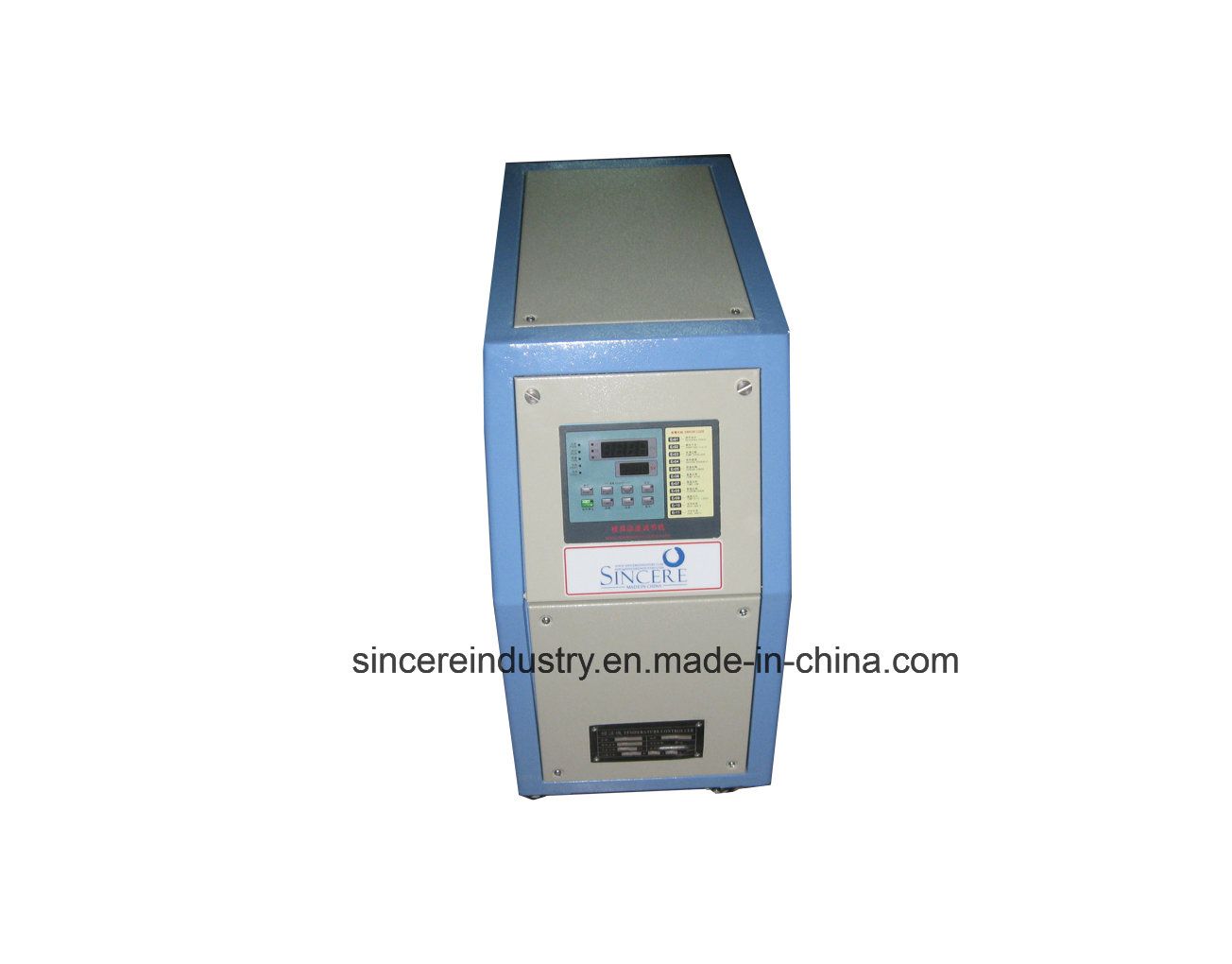

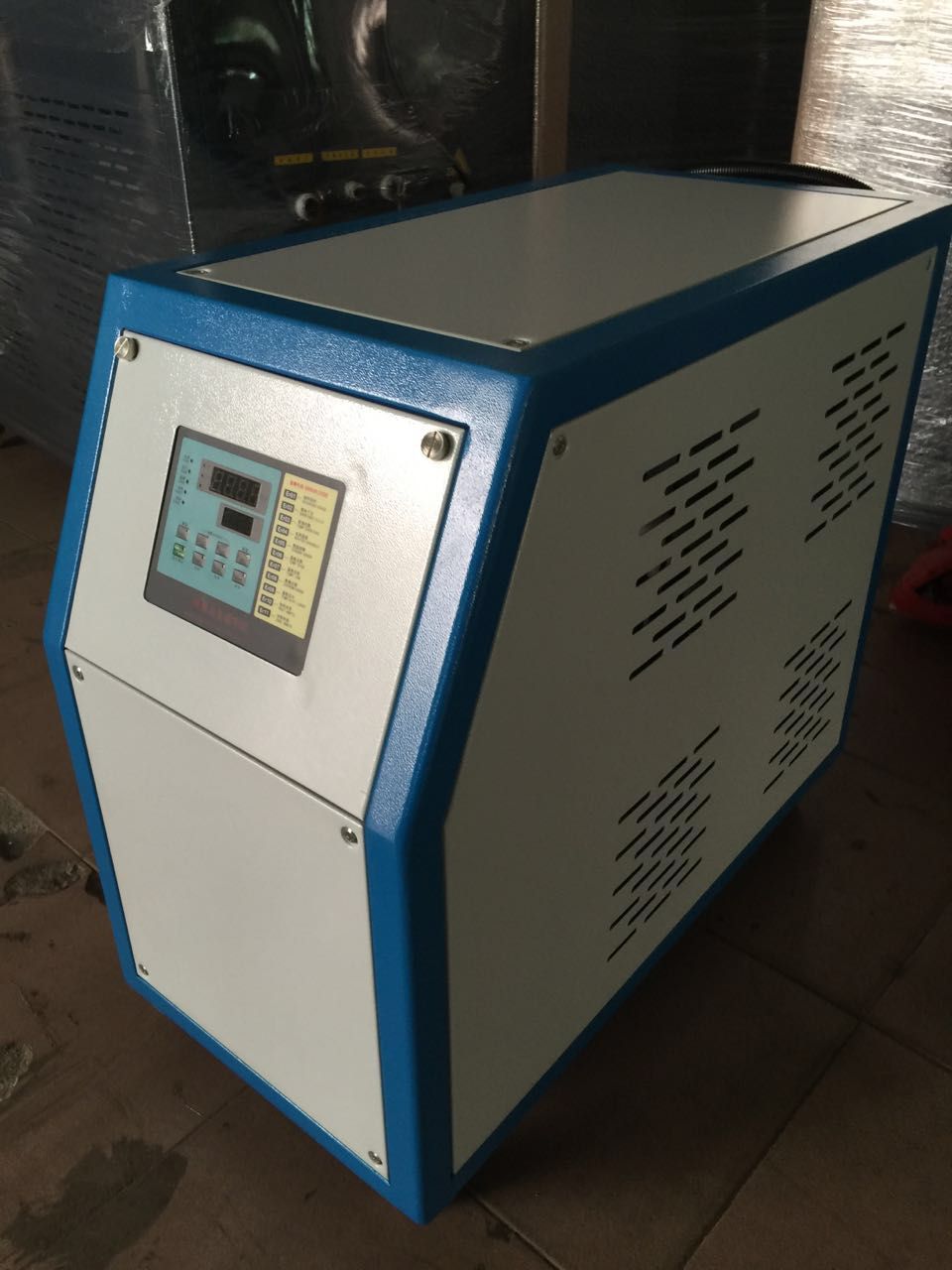

Water-Type Mould Temperature Control System

Name: Water-Type Mould Temperature Control System
Brand: all-electronics-online.com
SKU: 722341242
Availability: InStock
Rating: 4.5 (114 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMT-9-W

Product Description

*The temperature control adopted Japanese. Germany,Taiwan.Precise and reliable,if can control within ±1ºC and save electricity over 35%.
*Two sets of electric heater cylinder made from stainless steel.
*Emplaying supeb imported components,with longer terms of service.
*Rapid heating and cool off speeds,temp kept stable at times.
*Complete with safety protection and indication system.

Specifications	Water Type				Oil Type
Model	FST-3-W	FST-6-W	FST-9-W	FST-12-W	FST-3-0	FST-6-0	FST-9-0	FST-12-0	FST-6H-0	FST-12H-0
Control Range	normal-95ºC				normal-160ºC				nomal-200ºC
Voltage	3PHASE 380v 50Hz or 60Hz				3PHASE 380v 50Hz or 60Hz
Cooling Methold	Direct Cooling				Indirect Cooling
Fluid	Clean Water				Heat Transfer Oil
Heating Capacity KW	3	6	9	12	3	6	9	12	6	12
Pump Power	0.375	0.375	0.375	0.75	0.375	0.375	0.375	0.75	0.375	0.75
Max Pump Pressure KW	80	80	80	110	60	60	60	90	60	90
Max pump Capacity Kg/cm	3.0	3.0	3.0	3.5	1.5	1.5	1.5	2.0	1.5	2.0
Cooling Water Pipe/inch	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2
Process Fluid Pipe/inch	1/2*4	1/2*4	1/2*6	1/2*8	1/2*4	1/2*4	1/2*6	1/2*8	1/2*4	1/2*8
Exter Net Dimens ion LWH(mm)	650340580	650340580	650340580	750400700	650340580	650340580	750400700	750400700	650340580	750400700
Weight	54	54	72	90	58	58	75	95	58	75

BEST SINCERE INDUSTRY LIMITED was founded in 1979. We are the professional manufacturer of the plastic auxiliary machinery of the plastic injection molding machine. We devoted to the research and improvement of the palstic machinery to create the largest interest for our customers. Our products are popular both in domestic and overseas.

Our products include: Low noise plastic crusher; Onine recycling crusher; Strong plastic crusher; Dual shaft shredder, plastic mixer; Water chiller and air chiller; Industry cooling tower; Mould Tem. Controller; Plastic dryer; Auto loader; Film agglomerator; Plastic pulverizer, plastic metallizer, flexible screw conveyor, bulk bag unloader, etc. Our products are widely used in plastic, electronics, toy, medicine and other field
