Waterproof 2.4G Learning Remote Control for Both Android Box and TV

Name: Waterproof 2.4G Learning Remote Control for Both Android Box and TV
Brand: all-electronics-online.com
SKU: 782527355
Availability: InStock
Rating: 4.5 (86 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPI-W053-RFIR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
2.4G:	Android Box
IR Learning:	TV
Waterproof Grade:	IP67
Application:	Audio / Video Players
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Voltage:	3V
Material:	Plastic
Battery Type:	Button Battery
Signal Transmission:	Both 2.4G and IR Learning

Product Description

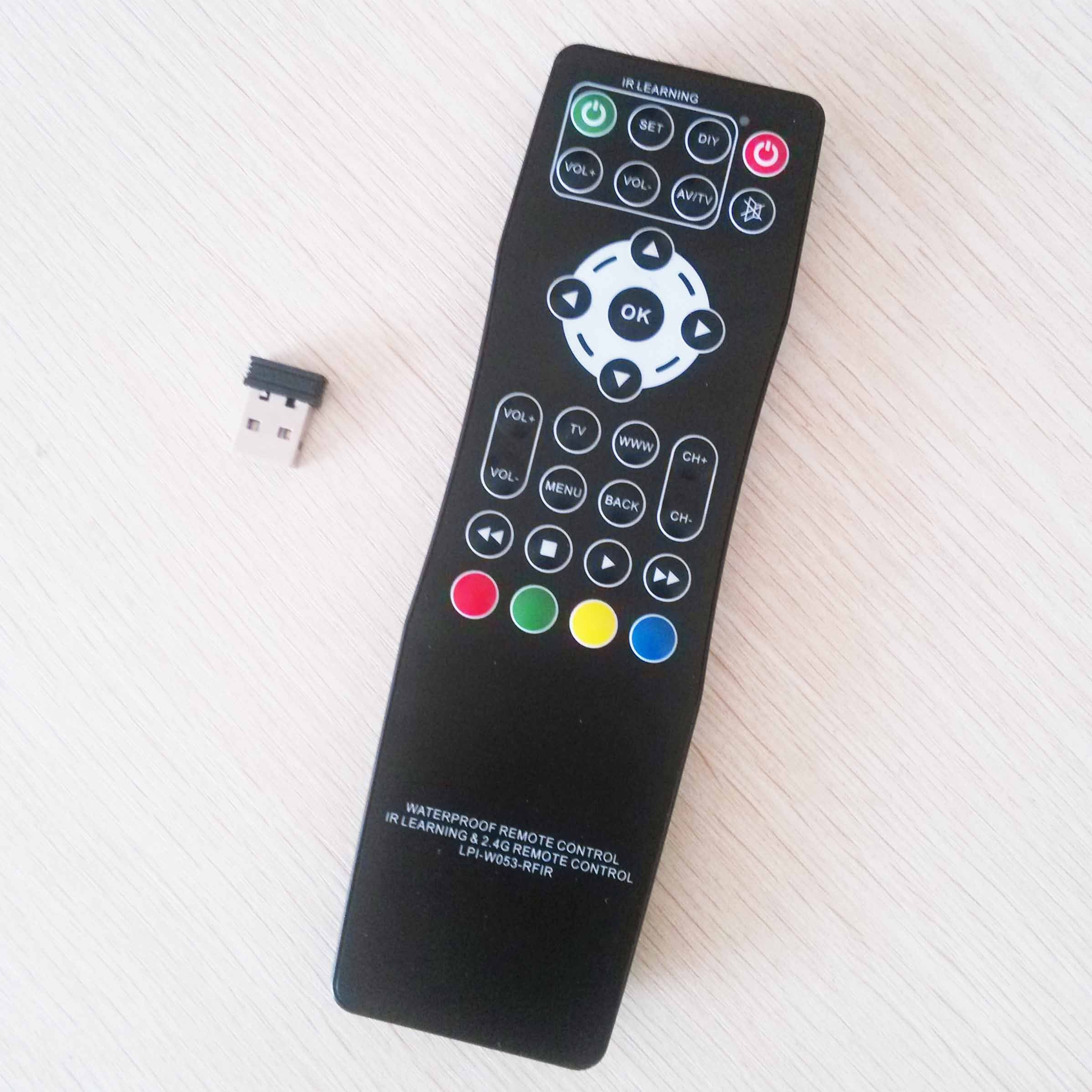

2.4G Learning Remote Control for both Android box and TV IR learning

MOQ>2000pcs

Item: LPI-W053-RFIR
Feature:

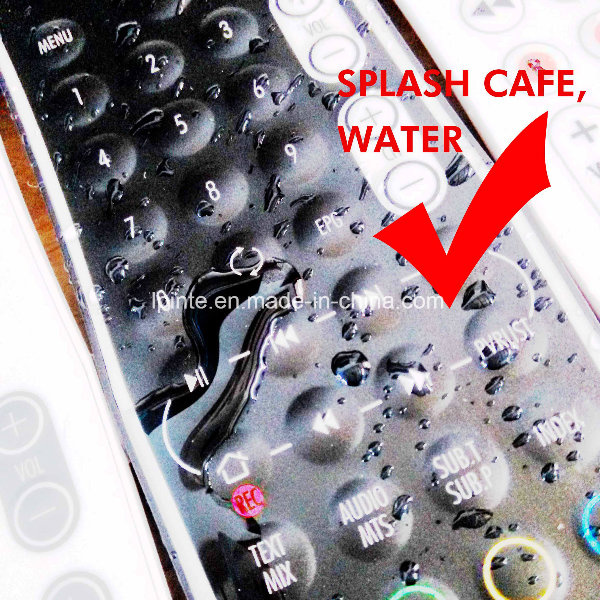

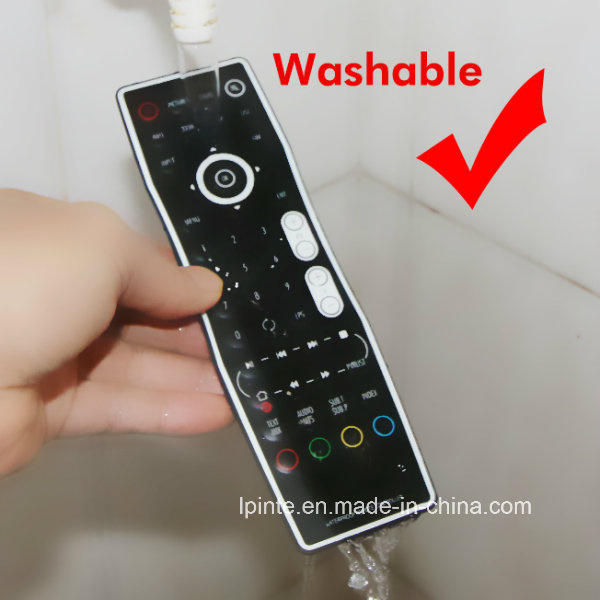

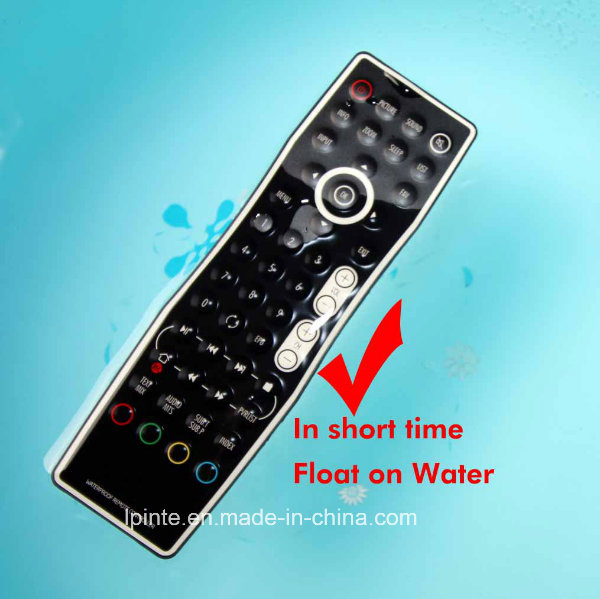

Waterproof IP65

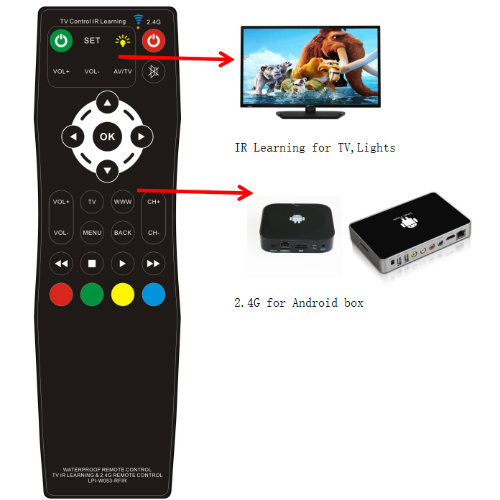

2.4G for android PC TVBox, IPTVs
TV Control IR learning

USB Dongle, Hold OK+TV together to decode new USB receiver.

IR Learning
5 keys learn device code what's you need

SET: Learning key, long press SET key to into Learning mode.
Power: On/Off
Vol+
Vol-
TV/AV
DIY key

2.4G Android, TVbox

Button Name	HID page	HID usage	Linux Key Code Name	Linux Key Code(Scancode)(hex)	Linux Key Code(Scancode)(decimal)
TV	0x0c	0x0089	KEY_TV	0x0179	377
POWER	0x0c	0x019E	KEY_POWER	0x0098	116
MUTE	0x0c	0x00E2	KEY_MUTE	0x0071	113
RED	0x07	0x003c	KEY_F3	0x003d	61
GREEN	0x07	0x003d	KEY_F4	0x003e	62
YELLOW	0x07	0x003e	KEY_F5	0x003f	63
WWW	0x0c	0x008A	KEY_WWW	0x0096	150
BLUE	0x07	0x003F	KEY_F6	0x0040	64
MENU	0x0c	0x0040	KEY_MENU	0x008b	139
<	0x0c	0x00b3	KEY_FASTFORWARD	0x00d0	208
STOP	0x07	0x0043	KEY_F10	0x0044	68
PLAY	0x07	0x0043	KEY_F10	0x0044	68
BACKWARD >>	0x07	0x0042	KEY_F9	0x0043	67
VOL+	0x0c	0x00E9	Keyboard Volume Up	0x0073	115
CH+	0x07	0x004b	KEY_PAGEUP	0x0068	104
UP	0x07	0x0052	KEY_UP	0x0067	103
LEFT	0x07	0x0050	KEY_LEFT	0x0069	105
OK	0x07	0x0028	KEY_ENTER	0x001c	28
RIGHT	0x07	0x004f	KEY_RIGHT	0x006a	106
DOWN	0x07	0x0051	KEY_DOWN	0x006c	108
VOL-	0x0c	0x00EA	KEY_VOLUMEDOWN	0x0072	114
CH-	0x07	0x004e	KEY_PAGEDOWN	0x006d	109
BACK	0x07	0x0029	KEY_ESC	0x0001	1

LP International Industries Co Ltd was established in 2004, located in Shenzhen China. Focus on wisdom, auto, high technology, energy saving business, OEM/DOM are welcome.

LP INTL has his own design, SMT and assembly facilities which achieved ISO9001, ISO14001 management system.

And take serious QC system to make sure products meet inquirements.

Only One Earth!

LP INTL takes care of the environment and take action on it. All of our material RoHS compliant.

Let's together make the life more better.

Main Products:

1, LEDs:

Chip LED, Lamp LED, SMD LED, power LED, AC LED, full spectrum grow LED

LED Streetlight Road light, LED module Kit, Retrofit LED module, accessories

LED high bay luminaire, LED floodlight, LED tunnel light

LED underwater light, PAR56 LED Swimming pool lights

LED Spotlight, LED bulb, LED tube, LED grow lights, LED aquarium lights

2, Waterproof IP67 Remote controls, Remote Controls

Wireless, Auto Parts, Remote Control Switch

Application: TV, DVD, DVB, STB, MUSIC, MEDIA, SPEAKER, AUDIO...

More new items waiting for you.

Contact us now for more details.
