Waterproof 3G Roaming GPS Tracking System for Asset and Shipment Monitoring

Name: Waterproof 3G Roaming GPS Tracking System for Asset and Shipment Monitoring
Brand: all-electronics-online.com
SKU: 726124212
Availability: InStock
Rating: 4.5 (122 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ASL-1000
Battery Capacility:	6000mAh/13A
GSM:	WCDMA, 3G
Alerts:	Door Open, Power (Dis)Connection
I/OS:	Battery Connection, ADC Temperature
Sensor:	Movement, Temperature
Type:	GPS Tracker
Use:	Automotive&Hand Held
Model:	Integration Type

Product Description

1. Key Features:

-Wide external power range: 9-36V DC
-6000mAH rechargeable battery built-in with long battery lasting time

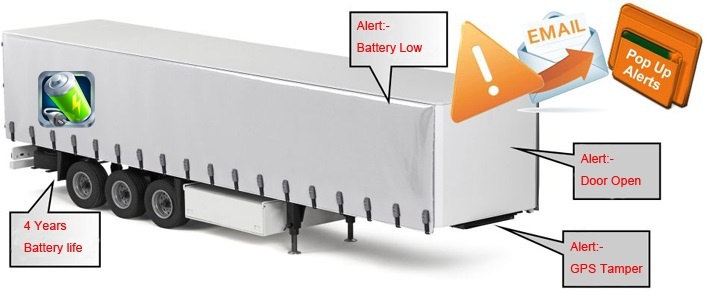

-Event report: Door open/Close, Temperature Limit break, External battery connect/Disconnect, battery critical low, GEO Area In/Out
-SMS/GPRS data transmit
-Small data stream design
-IP67 Protection rated

2. Description:

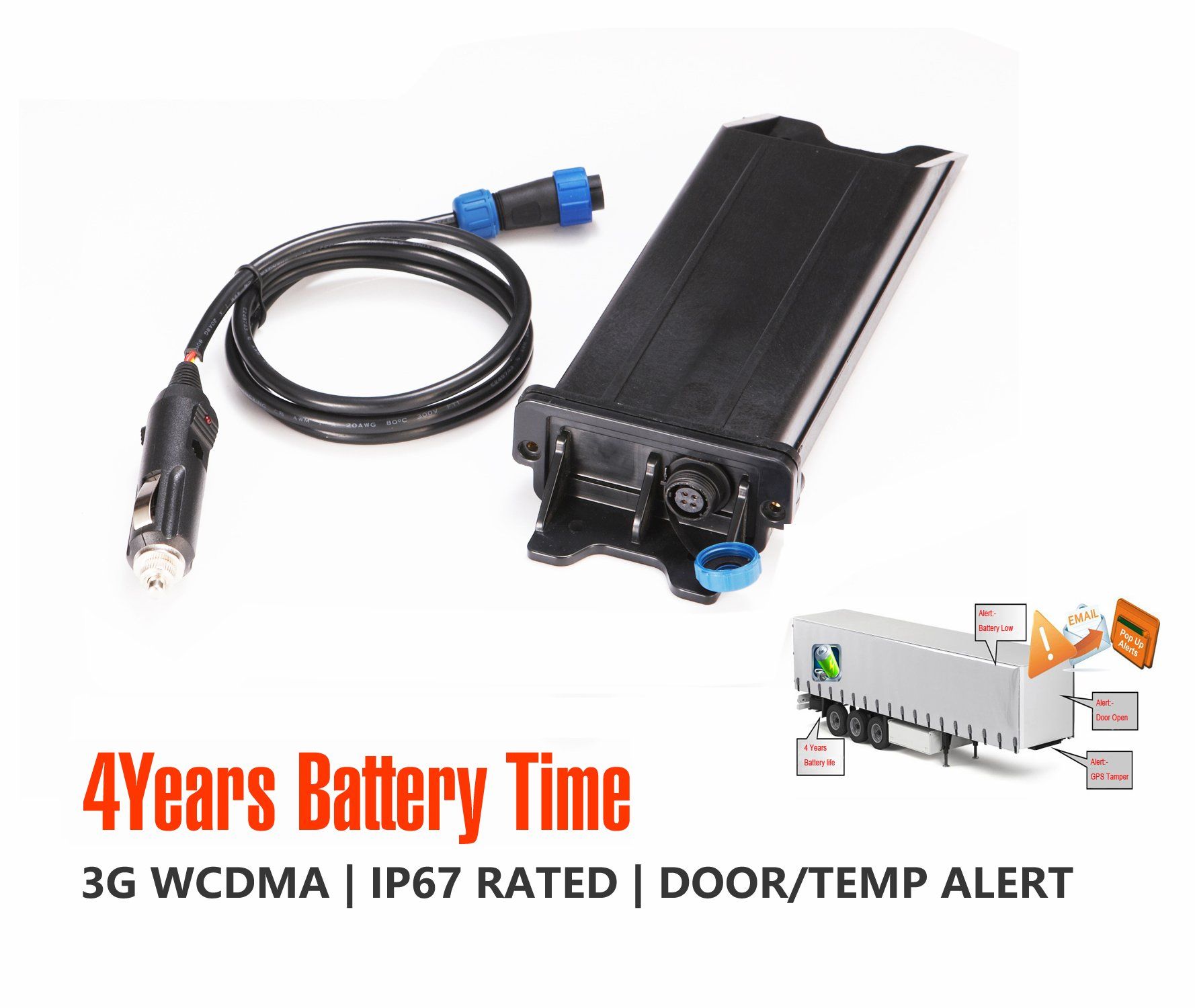

ASL-1000E is IP67 rated WCDMA/GPS tracker for (Semi-) trailer truck tracking application
This tracker typically designed to solve the problem for those Semitrailers without power supply when truck head is disconnected. And need longer time plan for tracking with purpose. And these semitrailers need to more frequency tracking interval like with seconds' level when truck head is connected.

One digital input and one analogue input will provide more options for system integrator. They can be used for monitoring door open/close and temperature etc.

3. Battery Life Working Plan:

Total Tracking waypoints report times: 720 Times (Evaluates)
Tracking frequency Scenes	Lasting Work Time
Report once Per Day	720Days=1.98year
Report Twice Per Day	360Days=12Months
Report every 6Hours (4Times Per Day)	180Days=6Months
Report every 4Hours	120Days=4Months
Report every 2Hours	60Days
Report every 1Hours	30Days
Report every 30Minutes	15Days
Report every 5Minutes	60Hours=2.5Days

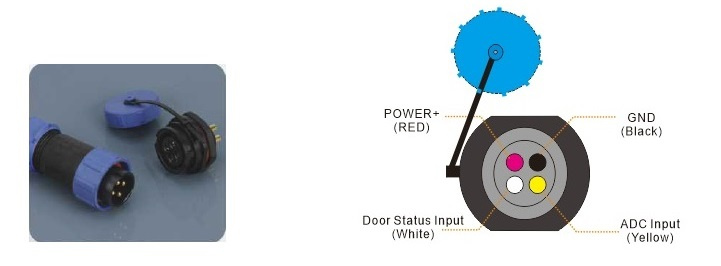

4. IO introduction:

C2STEK is established in 2009, and become a trustable supplier for GSM/GPS telematics devices and solutions.

We offer ready-Made products for automotive tracking, fleet management, tracking & tracing, lone worker safety, remote monitoring and control of any assets, and wireless alarms to cover most popular applications via the Internet.

We also offer ODM services, featuring a team of dedicated engineers, together with our extensive experience with 2G & 3G, GPS, Bluetooth, WiFi, RFID and other wireless connectivity, and our international customer support team. We ensure that our products are integrated in a smooth and timely manner for your business.
