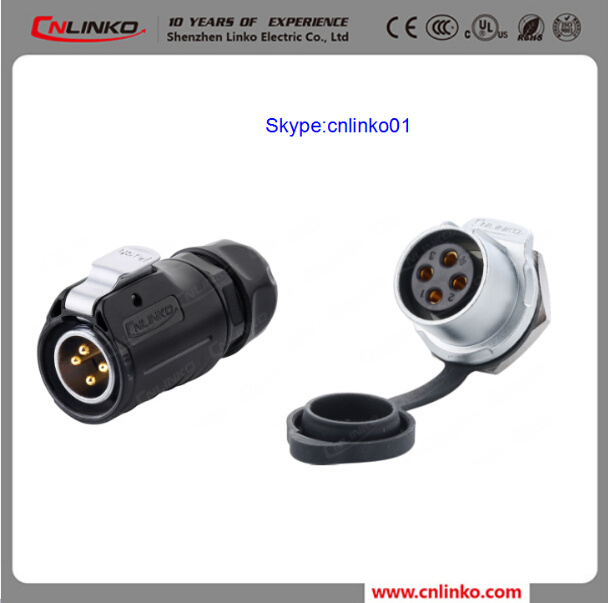

Waterproof 4pin Power Application Electrical Connector Plug and Socket Connector for LED Light

Waterproof 4pin Power Application Electrical Connector Plug and Socket Connector for LED Light
Price: US $ 2.9-3/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: LP-20-C04PE-01-001&LP-20-J04SX-01-001
Certification: Ce.CCC, ISO9001
Connector Type: 4pin
Rated Current: 20A
Protection Level: IP67
Connecting Mode: Easy Locking Type
Gender: Male
Application: Audio & Video

Product Description

Waterproof 4pin  power application Electrical Connector  Plug and Socket Connector for LED Light

LP-20 series connector is widely used in

LED screen
Audio visual equiment
Medical equiment
Industrial equment
AV system


Data Sheet:
Cable Specification: 2.5mm2 ~ 4 mm2 /14~12AWG
Diameter Range: Φ8mm ~Φ12mm
Contact Diameter x number:Φ2.7×4
Rated Current (A): 20A
Operating voltage(AC.V.rms): 500V
Contact resistance: <1mΩ
Withstanding voltage(AC.V)1minute: 2500V
Insulation resistance:>500mΩ
Protection Level: IP67
Durability:≥500 times plug in /out
Working Temperature:-40°C~80°C
Connecting mode: easy locking type
Assembly wire: Soldering
Housing&Insulation parts materials: High-performance engineering plastics
with zinc alloy hardware and copper pins
with silica gel materials waterproof cap
UL94-V0 Flammability
Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
