Waterproof 50mm2 XLPE Electrical Cables Prices
| Price: |
Negotiable/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
power cable |
| Product Name: |
Waterproof 50mm2 XLPE Electrical Wires Prices |
| Type Of Company: |
Manufacturer |
| Number Of Cores: |
1, 2, 3, 4, 5, 2+1, 3+2 |
| Related Voltage: |
0.6/1kv; 8.7/15kv; 12/20kv; 21/35kv; 26/35kv |
| Cable Type: |
with Armoring or Without Armoring |
| Product Model: |
VV, Vlv, Yjv, Yjlv, Yjv22, Yjlv22, Yjv32, Yjlv32.. |
| Standard: |
GB-T12706-2008; IEC 60502 |
| Certificate: |
ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc |
| Package: |
Wooden Drum, Steel Drum or as Your Requirement |
| Country Of Origin: |
Professional Manufacturer of 25 Years in China |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Rmjt |
Product Description
Waterproof 50mm2 xlpe electrical wires prices
Application:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be Expected.
Construction:
1 ..... solid (RE) or stranded (RM/SM) bare copper
2 ..... core insulation of polyvinylchloride (PVC)
3 ..... PVC core covering or taping
4 ..... outer sheath of polyvinylchloride (PVC), black
Information:
short circuit temperature on core (max. 5 sec.)
<=300mm² --> 160°C
>300mm² --> 140°C
Standards:
DIN VDE 0276-603
HD 603 S1:1994 + A2:2003
DIN EN 60228 class 1 and 2 (construction)
HD 308 S2 (core identification)
Technical data:| Nominal voltage Uo/U | | [V] | 600 / 1000 volt |
| Test voltage | | [V]AC | 4000 |
| Temperature range | in motion | | -5°C till +70°C |
| | fixed | | -20°C till +70°C |
| Bending radius | single-core style | x diameter | 15 |
| | multi-core style | x diameter | 12 |
| Flammability | standard | | EN 60332-1-2 |
Number of cores and Copper Overall Weight Current carrying Current carrying
nominal cross section figure diameter appr. capacity ground capacity air
mm2 kg/km mm kg/km A A|
| 1 x 16 RE | 160,0 | 11 | 233,0 | 107 | 84 |
| 1 x 25 RM | 250,0 | 12 | 370,0 | 138 | 114 |
| 1 x 35 RM | 350,0 | 14 | 480,0 | 164 | 139 |
| 1 x 50 RM | 500,0 | 16 | 640,0 | 195 | 169 |
| 1 x 70 RM | 700,0 | 17 | 850,0 | 238 | 213 |
| 1 x 95 RM | 950,0 | 19 | 1.120,0 | 286 | 264 |
| 1 x 120 RM | 1.200,0 | 21 | 1.375,0 | 325 | 307 |
| 1 x 150 RM | 1.500,0 | 23 | 1.660,0 | 365 | 352 |
| 1 x 185 RM | 1.850,0 | 25 | 2.050,0 | 413 | 406 |
| 1 x 240 RM | 2.400,0 | 28 | 2.634,0 | 479 | 483 |
| 1 x 300 RM | 3.000,0 | 30 | 3.295,0 | 541 | 557 |
| 1 x 400 RM | 4.000,0 | 32 | 4.231,0 | 614 | 646 |
| 1 x 500 RM | 5.000,0 | 34 | 5.284,0 | 693 | 747 |
| 1 x 630 RM | 6.300,0 | 42 | 6.850,0 | 777 | 858 |
| 2 x 1,5 RE | 30,0 | 11 | 220,0 | 27 | 20 |
| 2 x 2,5 RE | 50,0 | 12 | 267,0 | 36 | 25 |
| 2 x 4 RE | 80,0 | 14 | 342,0 | 47 | 34 |
| 2 x 6 RE | 120,0 | 15 | 412,0 | 59 | 43 |
| 2 x 10 RE | 200,0 | 16 | 510,0 | 79 | 59 |
| 2 x 16 RM | 320,0 | 18 | 670,0 | 102 | 79 |
| 3 x 1,5 RE | 45,0 | 13 | 244,0 | 27 | 20 |
| 3 x 2,5 RE | 75,0 | 14 | 294,0 | 36 | 25 |
| 3 x 4 RE | 120,0 | 16 | 393,0 | 47 | 34 |
| 3 x 6 RE | 180,0 | 17 | 481,0 | 59 | 43 |
| 3 x 10 RE | 300,0 | 18 | 645,0 | 79 | 59 |
| 3 x 16 RE | 480,0 | 20 | 872,0 | 102 | 79 |
| 3 x 16 RM | 480,0 | 20 | 872,0 | 102 | 79 |
| 3 x 25 RM | 750,0 | 25 | 1.350,0 | 133 | 106 |
| 3 x 35 SM | 1.050,0 | 25 | 1.460,0 | 159 | 129 |
| 3 x 50 SM | 1.500,0 | 29 | 1.750,0 | 188 | 157 |
| 3 x 70 SM | 2.100,0 | 32 | 2.400,0 | 232 | 199 |
| 3 x 95 SM | 2.850,0 | 35 | 3.560,0 | 280 | 246 |
| 3 x 120 SM | 3.600,0 | 38 | 4.310,0 | 318 | 285 |
| 3 x 150 SM | 4.500,0 | 42 | 5.310,0 | 359 | 326 |
| 3 x 185 SM | 5.550,0 | 47 | 6.630,0 | 406 | 374 |
| 3 x 240 SM | 7.200,0 | 53 | 8.480,0 | 473 | 445 |
| 3 x 25/16 RM/RE | 910,0 | 25 | 1.513,0 | 133 | 106 |
| 3 x 35/16 SM/RE | 1.210,0 | 27 | 1.804,0 | 159 | 129 |
| 3 x 50/25 SM/RM | 1.750,0 | 31 | 2.349,0 | 188 | 157 |
| 3 x 70/ 35 SM | 2.450,0 | 35 | 3.117,0 | 232 | 199 |
| 3 x 95/ 50 SM | 3.350,0 | 39 | 4.167,0 | 280 | 246 |
| 3 x 120/ 70 SM | 4.300,0 | 44 | 5.190,0 | 318 | 285 |
| 3 x 150/ 70 SM | 5.200,0 | 47 | 6.161,0 | 359 | 326 |
| 3 x 185/ 95 SM | 6.500,0 | 53 | 7.673,0 | 406 | 374 |
| 3 x 240/120 SM | 8.400,0 | 59 | 9.850,0 | 473 | 445 |
| 3 x 300/150 SM | 10.500,0 | 65 | 11.900,0 | 535 | 511 |
| 4 x 1,5 RE | 60,0 | 14 | 278,0 | 27 | 20 |
| 4 x 2,5 RE | 100,0 | 15 | 340,0 | 36 | 25 |
| 4 x 4 RE | 160,0 | 17 | 460,0 | 47 | 34 |
| 4 x 6 RE | 240,0 | 18 | 570,0 | 59 | 43 |
| 4 x 10 RE | 400,0 | 20 | 775,0 | 79 | 59 |
| 4 x 10 RM | 400,0 | 20 | 775,0 | 79 | 59 |
| 4 x 16 RE | 640,0 | 22 | 1.072,0 | 102 | 79 |
| 4 x 16 RM | 640,0 | 22 | 1.072,0 | 102 | 79 |
| 4 x 25 RM | 1.000,0 | 27 | 1.632,0 | 133 | 106 |
| 4 x 35 SM | 1.400,0 | 27 | 1.959,0 | 159 | 129 |
| 4 x 50 SM | 2.000,0 | 32 | 2.595,0 | 188 | 157 |
| 4 x 70 SM | 2.800,0 | 36 | 3.488,0 | 232 | 199 |
| 4 x 95 SM | 3.800,0 | 41 | 4.637,0 | 280 | 246 |
| 4 x 120 SM | 4.800,0 | 43 | 5.689,0 | 318 | 285 |
| 4 x 150 SM | 6.000,0 | 49 | 6.973,0 | 359 | 326 |
| 4 x 185 SM | 7.400,0 | 54 | 8.663,0 | 406 | 374 |
| 4 x 240 SM | 9.600,0 | 60 | 11.140,0 | 473 | 445 |
| 5 x 1,5 RE | 75,0 | 15 | 317,0 | 0 | 0 |
| 5 x 2,5 RE | 125,0 | 16 | 391,0 | 0 | 0 |
| 5 x 4 RE | 200,0 | 18 | 537,0 | 0 | 0 |
| 5 x 6 RE | 300,0 | 19 | 672,0 | 0 | 0 |
| 5 x 10 RE | 500,0 | 21 | 921,0 | 0 | 0 |
| 5 x 10 RM | 500,0 | 21 | 921,0 | 0 | 0 |
| 5 x 16 RE | 800,0 | 24 | 1.294,0 | 0 | 0 |
| 5 x 16 RM | 800,0 | 24 | 1.294,0 | 0 | 0 |
| 5 x 25 RM | 1.250,0 | 29 | 2.004,0 | 0 | 0 |
| 5 x 35 RM | 1.750,0 | 30 | 2.575,0 | 0 | 0 |
| 5 x 50 RM | 2.500,0 | 36 | 3.193,0 | 0 | 0 |
| 5 x 70 RM | 3.500,0 | 40 | 4.722,0 | 0 | 0 |
| 5 x 95 RM | 4.750,0 | 46 | 6.393,0 | 0 | 0 |
| 5 x 120 RM | 6.000,0 | 50 | 7.095,0 | 0 | 0 |
| 5 x 150 RM | 7.500,0 | 59 | 8.240,0 | 0 | 0 |
| 7 x 1,5 RE | 105,0 | 16 | 376,0 | 0 | 0 |
| 10 x 1,5 RE | 150,0 | 19 | 495,0 | 0 | 0 |
| 12 x 1,5 RE | 180,0 | 18 | 440,0 | 0 | 0 |
| 14 x 1,5 RE | 210,0 | 20 | 494,0 | 0 | 0 |
| 16 x 1,5 RE | 240,0 | 21 | 600,0 | 0 | 0 |
| 19 x 1,5 RE | 285,0 | 22 | 614,0 | 0 | 0 |
| 21 x 1,5 RE | 315,0 | 23 | 700,0 | 0 | 0 |
| 24 x 1,5 RE | 360,0 | 24 | 769,0 | 0 | 0 |
| 30 x 1,5 RE | 450,0 | 26 | 918,0 | 0 | 0 |
| 40 x 1,5 RE | 600,0 | 29 | 1.250,0 | 0 | 0 |
| 7 x 2,5 RE | 175,0 | 17 | 472,0 | 0 | 0 |
| 10 x 2,5 RE | 250,0 | 20 | 530,0 | 0 | 0 |
| 12 x 2,5 RE | 300,0 | 21 | 578,0 | 0 | 0 |
| 14 x 2,5 RE | 350,0 | 22 | 680,0 | 0 | 0 |
| 16 x 2,5 RE | 400,0 | 23 | 750,0 | 0 | 0 |
| 19 x 2,5 RE | 475,0 | 24 | 870,0 | 0 | 0 |
| 21 x 2,5 RE | 525,0 | 25 | 900,0 | 0 | 0 |
| 24 x 2,5 RE | 600,0 | 26 | 1.035,0 | 0 | 0 |
| 30 x 2,5 RE | 750,0 | 28 | 1.300,0 | 0 | 0 |
| 40 x 2,5 RE | 1.000,0 | 31 | 1.700,0 | 0 | 0 |
| 7 x 4 RE | 280,0 | 18 | 600,0 | 0 | 0 |
| 7 x 6 RE | 420,0 | 20 | 760,0 | 0 | 0 |
| 7 x 10 RE | 700,0 | 22 | 1.080,0 | 0 | 0 |

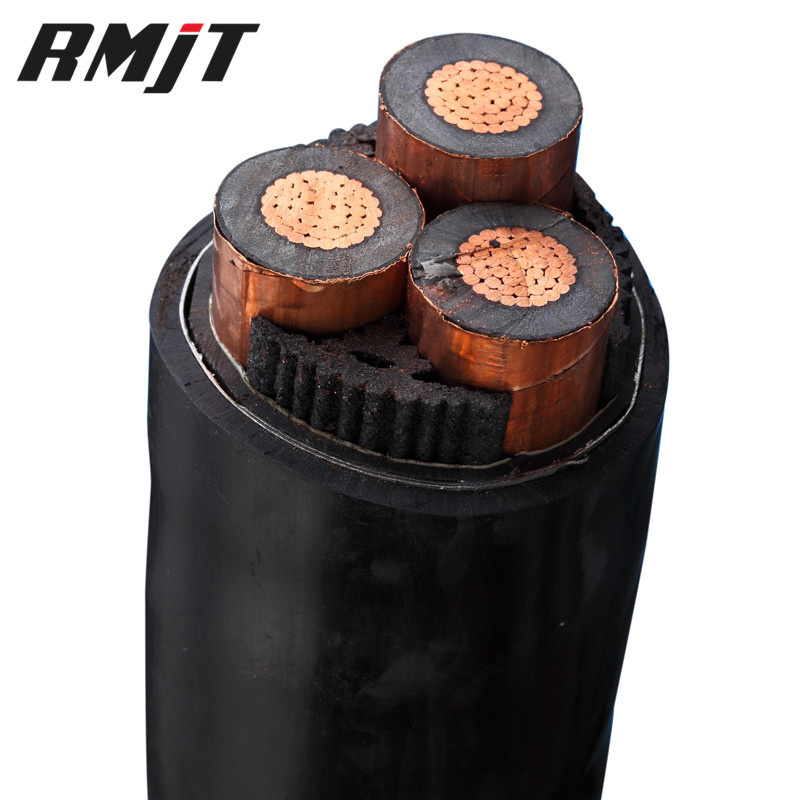

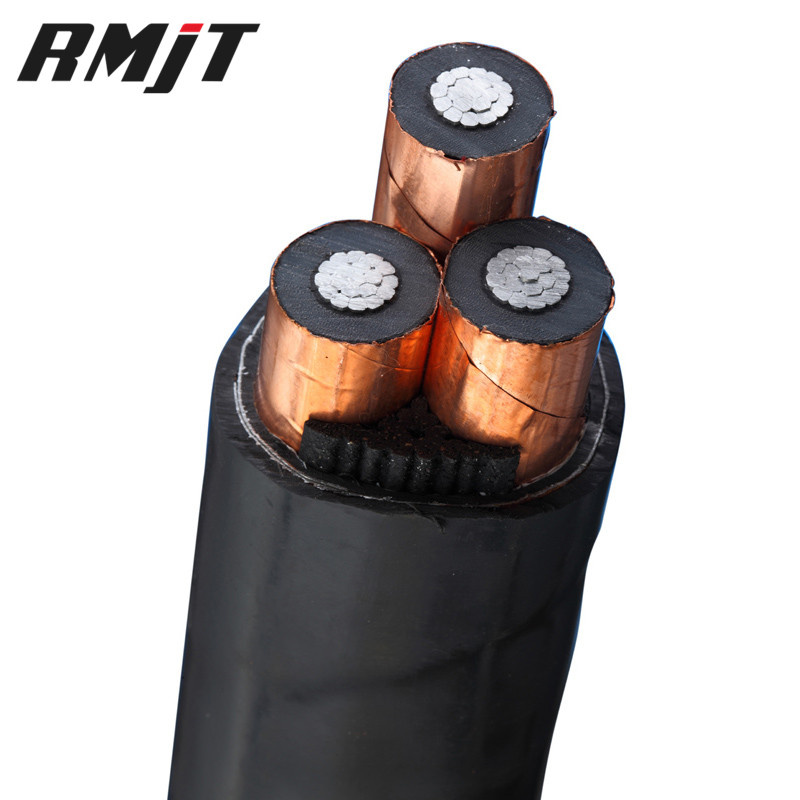

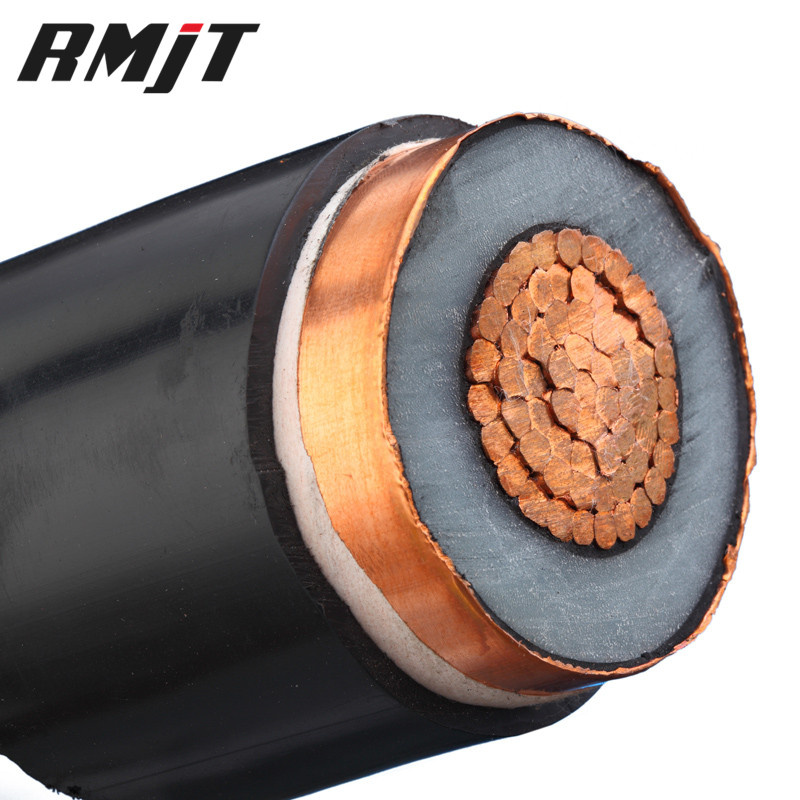

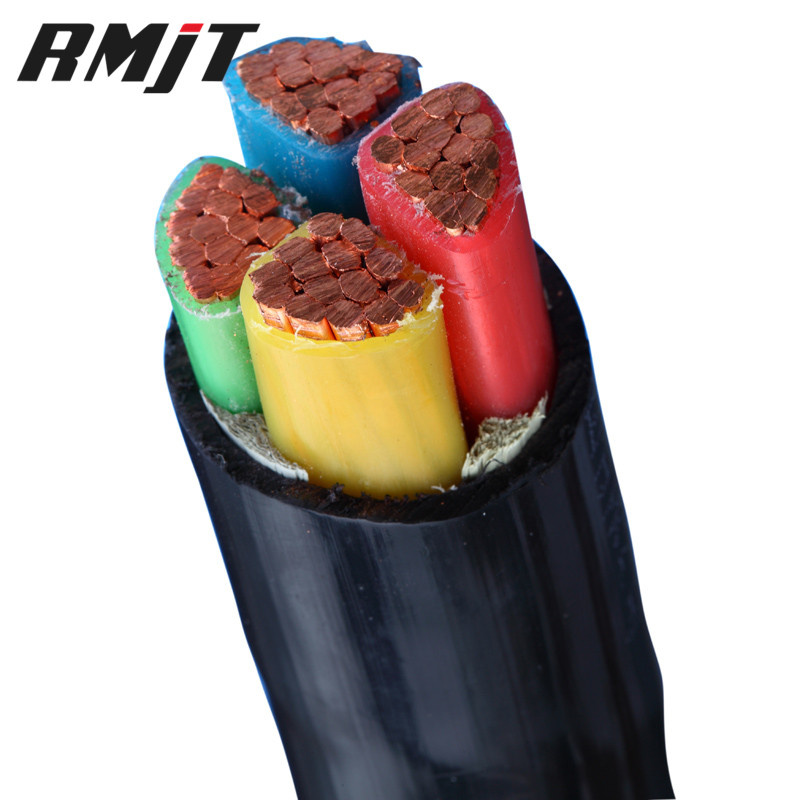

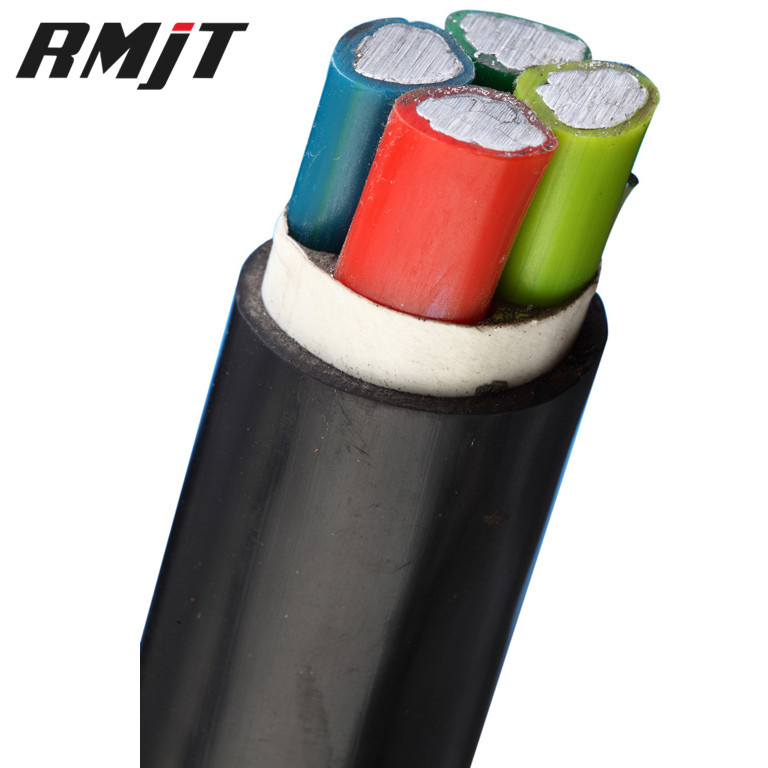

Product Pictures:
Packing and Delivery:

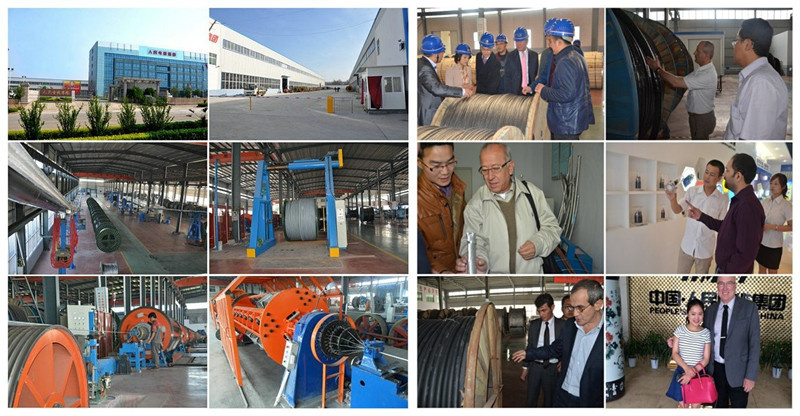

Our Company:
People's Cable Group Co., Ltd, a professional wires and cables manufacturer for 27 years in China. we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 160000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, ISO9001:2008;
4. Guarantee: 20 years;
5. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
FAQ:
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2)How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3)How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
(4)What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Contact Information:
Cara Zhang | General Manager | People's Cable Group
T: 86-371-55632836 | M: 86-18903869075
If you have any questions, please contact me, I will reply you as soon as possible.
Welcome your inquiry.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
