Waterproof 8 Gang Switch Panel with USB Charger Voltage Meter Cigarette Lighter 12V Power Outlet

Name: Waterproof 8 Gang Switch Panel with USB Charger Voltage Meter Cigarette Lighter 12V Power Outlet
Brand: all-electronics-online.com
SKU: 825395455
Availability: InStock
Rating: 4.5 (91 reviews)

Price:	Negotiable/Piece
Min Order:	30/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SP-009
Material:	ABS
LED Color:	Blue/Red/Green
Usage:	Truck,Marine,Boat
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

8 Gang Waterproof 12-24V Rocker Switch Panel Control Car Marine Boat Voltmeter

Product Features:
Pre-wired for you to easily install in both 12V and 24V vehicle, yacht, ship, caravan, truck, etc.
Switch panel for controlling universal electrical equipment in the vehicle: headlight, fog light, width light, car refrigerator switch, car vacuum switch, take electric for automobile external equipment, cigarette lighter and so on.
IP65 waterproof, with rubber seal-cap to keep it waterproof, best for marine.
8x LED illuminated marine grade rocker switches, presented with vehicle and marine labels, easy for DIY.

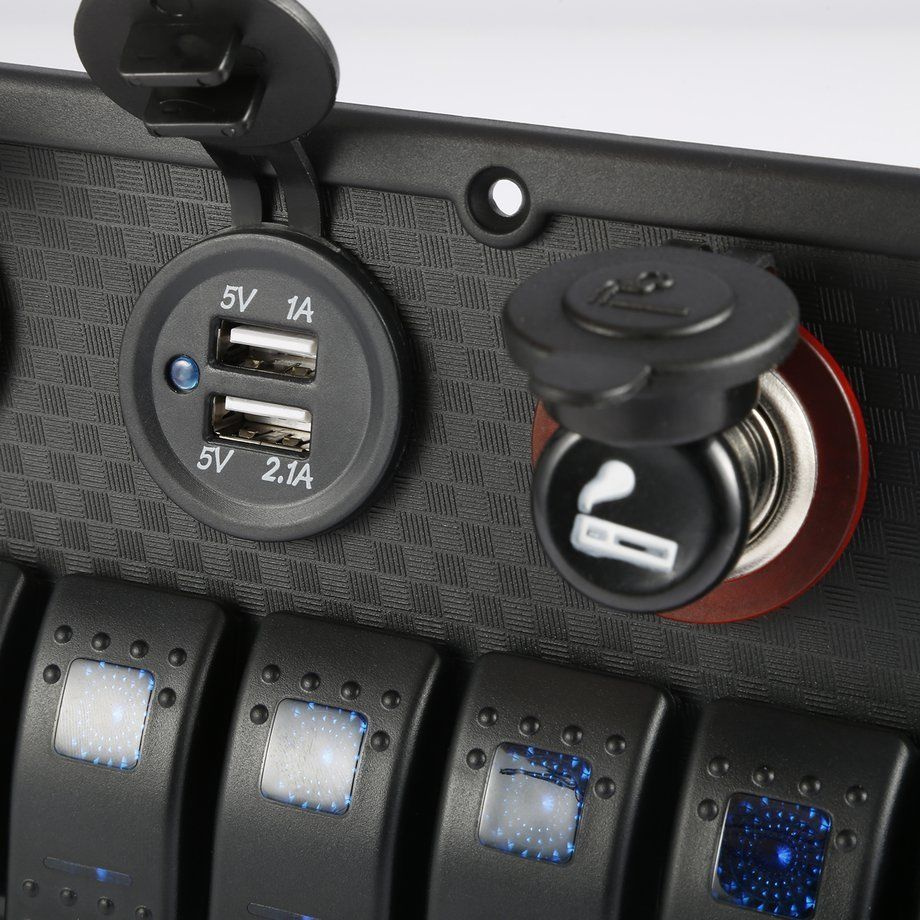

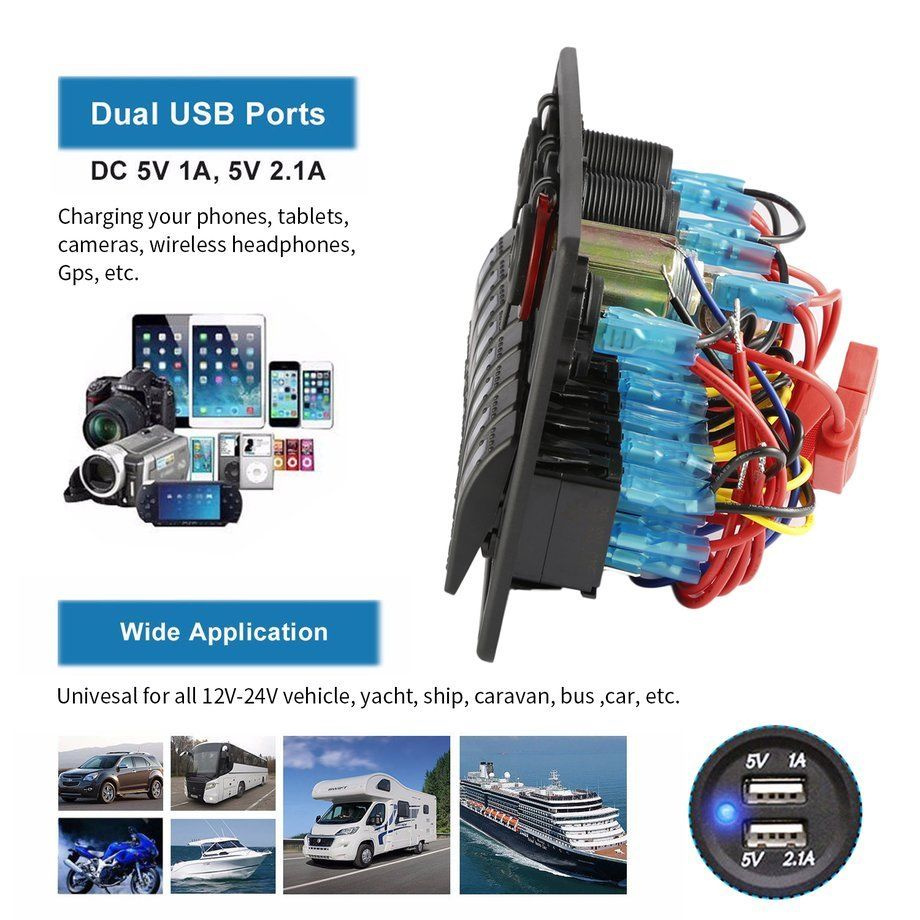

Dual USB charging ports(DC 5V/1A, 5V/2.1A), charging your phones, tablets, cameras, GPS, wireless headphones, etc.
12V/24V Cigarette lighter can light your cigarettes.
Digital voltage display helps to monitor vehicle's electrical safety from 6V to 30V.
4 external 15 amp fuses, easy to replace, protect panel from over-heating, over-currents, over charging and short circuit.
High quality, more durable and solid aluminum panel than the plastic or the wooden one.

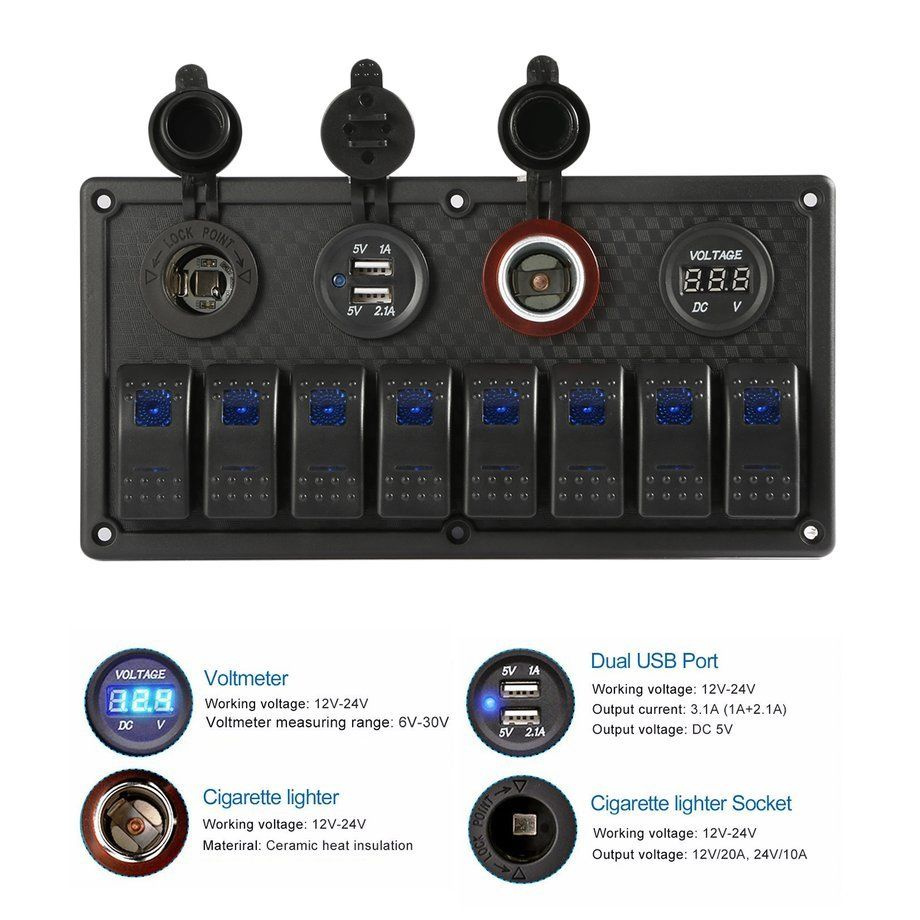

Specification:

Certificate	CE/ROHS/UL approved
Color	Black
Material	ABS+PC+Aluminum
LED Color	Blue

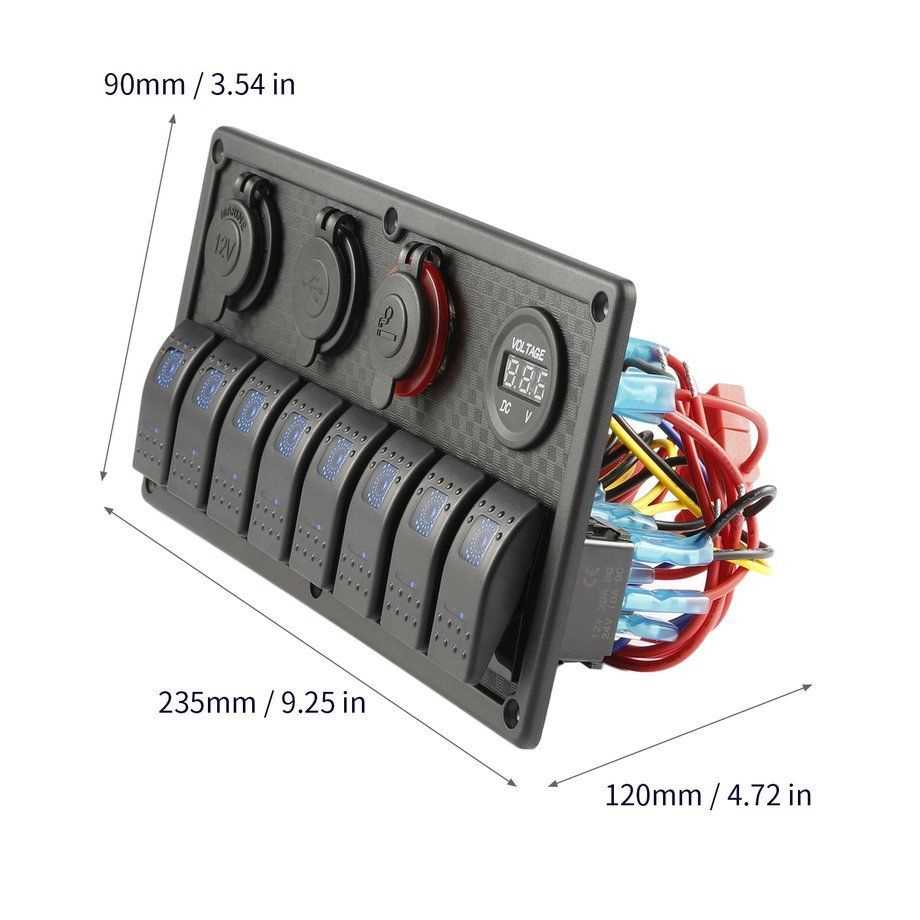

Product Dimension	(9.25x4.72x3.54)inch/ (23.5x12x9)cm
IP Rating	IP65
Fuse	15A
Switches Available	fog light, spot light, side light, roof light, zombie light, driving light, etc
Rocker Switch	8
Input Voltage	DC 12V/20A, 24V/10A
Digital Voltmeter Range	6V - 30V
Cigarette Socket	12V/ 24V
Operating Temperature	-13ºF~176ºF/ -25 ºC ~ 80 ºC

Dual USB Charger Socket:
Input: DC 12-24V
Output: DC 5V 2.1A, 5V 1A

Wiring instruction:
Installation:pre-wired

Can be vertical or horizontal mounted

The four red wires: connect the cathode of the storage battery.

The black wire: connect the anode of the storage battery.

The blue wire: connect the cathode of the storage battery.

The yellow wire: connect the anode of the storage battery.

Eight sheet coppers: the load generator positive connection.
