| Prod Model: |
Car GPS tracking Tracker GPS303 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Three Modes: |
Tracker, Monitor and Call |
| Apllication: |
Vehicle Fleet/Logistics/Vehicle Rental (12-24V) |
| Frequency Band: |
850/900/1800/1900MHz |
| SD Card Slot: |
Yes |
| OEM Or Not: |
Yes |
| Arm Alarms: |
Acc/Door/Shock Sensor Alarm |
| Anti Theft Alarms: |
Engine Shut, Real Time Tracking |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
303G |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

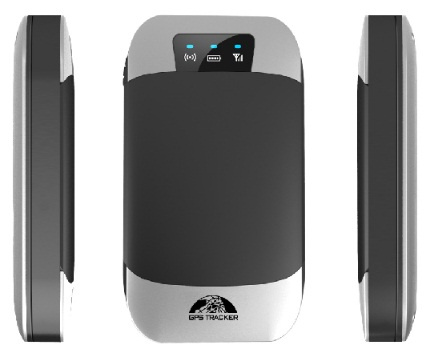

Waterproof Car GPS tracking Tracker with shock sensor alarm (GPS303) GPS Tracker,which set multiple functions of accurately positioning,security, monitoring surveillance, emergency alarms and tracking in its entirety,special for vehicle.The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.
Features:
Built-in GSM, GPS antenna, compact, elegant appearance.
Support GPS and LBS (Location based service) double tracking solutions.
Support SMS/GPRS/Internet Network data transmission
Support configure the settings remotely
Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
Application:
Used widely for vehicle and other moving objects tracking
Functions
1. GPS + LBS double solution,exact street address | if not GPS Fix, GSM message LAC code or tracking by LBS in GPRS mode |
| 2. Auto track continuously | - Track with limited times upon time interval
- Track with unlimited times upon time interval
- smart track upon time and distance interval
|
3.Turning points update automatically | vehicle changing driving direction,effective in GPRS mode |
4.GPS drift suppression | GPS data stop updating if vehicle is not driving |
5.Data logging or load | |
| 6.Alarms | |
| 7.Sleep Mode | No sleep/Sleep by time/Sleep by shock/ Deep sleep by shock/Awake according to schedule |
8. Real time tracking via SMS or GPRS | (TCP/UDP) |
9.Track on demand by calling or sms comamnd | |
10. Live http google map link in message | |
11.Five authorized phone numbers | |
12. Voice Surveillance | monitor |
13.Easy switch for track or Monitor | |
New Functions |
14.ACC work and alarm |
15.Cut off the Oil and Power,Engine stop and resume |
| 16.Fuel sensor, Fuel alarm |

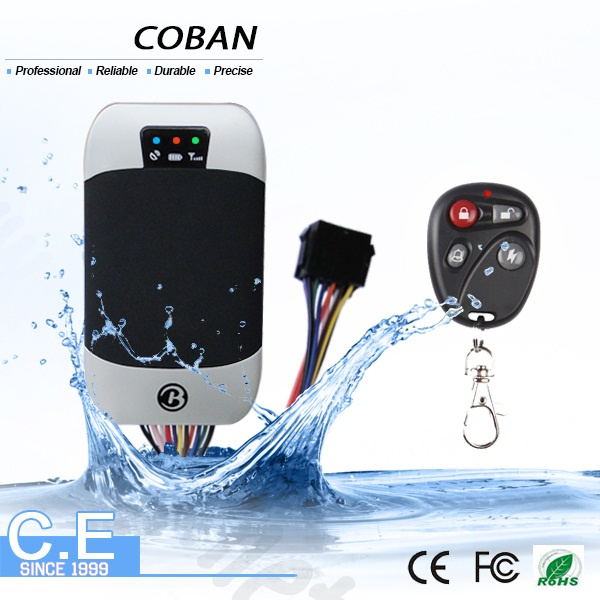

| 17.Remote controller for option |
| 18.Arm/disarm/silent mode/ |
| 19.Door oopen alarm,external shock sensor alarm, Accident alarm |
| Content | Specification |
| DIM | 9.6×5.3×1.6cm |
| Weight | 70g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPSAccuracy | 5m |
| GPS Start Time | Cold status 45s Warm status 35s Hot status 1s |
| Applicable vehicle power | 12 V/24V |
| Backup Battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Shipment and delivery:
We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Waranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
OEM & ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
Tracking Platform
Web online tracking www.gpstrackerxy.com
Android and IOS app
