Waterproof Circular Fq Series Connectors

Name: Waterproof Circular Fq Series Connectors
Brand: all-electronics-online.com
SKU: 121335
Availability: InStock
Rating: 5 (62 reviews)

Price:	US $ 8-10/Set
Trade Terms:	FOB
Min Order:	10/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Fq14, Fq18, Fq24, Fq30
Coupling:	Bayont
Contacts:	1-55

Product Description

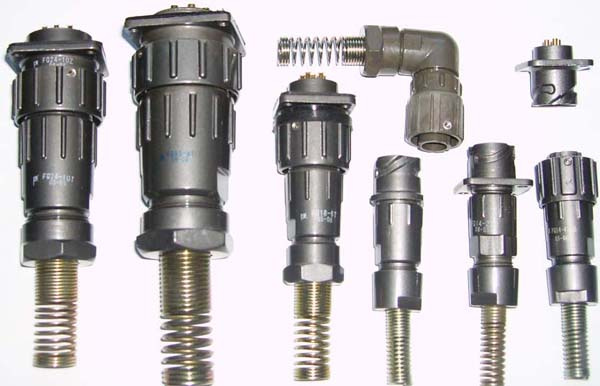

Fq series circular conectors can be useed in the water-proof place. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof and strong seal etc. They are widely used for the electrical connection between electrical equipment. Meet CE, RoHS. IP67 protection.

Product Ordering

FQ 14 - 7 T K - 8

1 2       3     4    5    6
   1. Name of series:     FQ
2.Shell size :          14,18,24,30
3.Number of contacts:1,2,3,4,5,6,7,9,10,12,13,16,19,26,32,42,55
4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,
   Z2:Receptacle with O ring,ZY: circular recptacle
5. Type of contacts: K:socket,J:pin
6. Wire gauge:      5,6,7,8,9,10,12,14,16,18

Technical characteristics

The connector is allowed to submerged in 1m deep water for 30min.(Ip67)

	Temperature	Relative humidity			Atmosphere			Vibration		Shock
	-55°C~+85°C	(90~96)% at40°C			4.4KPa			10~200Hz,150m/s²		490m/s²
	Current			Voltage		Contact resistance			Endurance
	2A~5A			110V/250V		≤10mΩ			500cycles
	10A-25A			400V		≤5mΩ			500cycles
Environment			Voltage proof				Insulation resistance
Normal			2000V For 400V				≥5000MΩ
			1500V For 250V				≥1000MΩ
			1000V For 110V				≥1000MΩ
Moisture			1000V For 400V				≥100MΩ
			750V For 250V				≥20MΩ
			500V For 110V				≥10MΩ
Low pressure			300V For 400V				-
			250V For 250V
			180V For 110V

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
