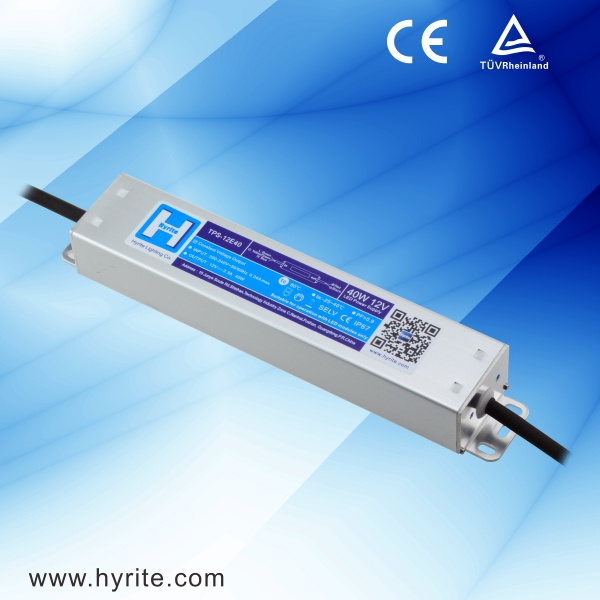

Waterproof Constant Voltage LED Driver with TUV Approved

Name: Waterproof Constant Voltage LED Driver with TUV Approved
Brand: all-electronics-online.com
SKU: 725376762
Availability: InStock
Rating: 4.5 (32 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TPS-5/12/24 E40
Output:	40W
Input Voltage:	185-265V 50/60Hz
Output Voltage:	5V/12V/24V
Power Factor:	High PF~0.9
Efficiency:	80%
IP Rating:	IP 67
Certificates/Standards:	C
Weight(Kg):	1.6
Packing Information:	10 PCS/ Carton, G.W 17 Kg
Dimensions(LWH):	3088536mm
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	170-250V
Brand:	Neonpro

Product Description

High PF Waterproof Slim LED Power Supply CE RoHS EMC

Brief Introduction of the high power waterproof LED power supply :
*External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Slim body, special design for application with narrow space, such as ceiling LED Strip back light, LED light box...
*Fully sealed&waterproof, IP67
*Constant Voltage output
*100% burn-in test
*Efficiency>0.85, CE TUV

Product specifications:

Model no.	TPS-5E40;TPS-12E40;TPS-24E40
Model series	TPS
Input voltage	185-265V 50/60Hz
Power	40W
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	High PF>0.9
Efficiency	80%
AC inrush current(max.)	65A@230VAC
Output voltage	5±0.5V,12±0.5V, 24±0.5V
Output current	8.0A,3.33A, 1.67A max
Overload protection	>130% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25ºC~60ºC
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE TUV
Connection input/output	Input: 1 mm²x3 (18cm) / Output: 1 mm²x2 (18cm)
Dimensions(LWH)	2334333mm
Weight(kg)	0.6000
Packing information	50pcs/carton 15 kg

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
