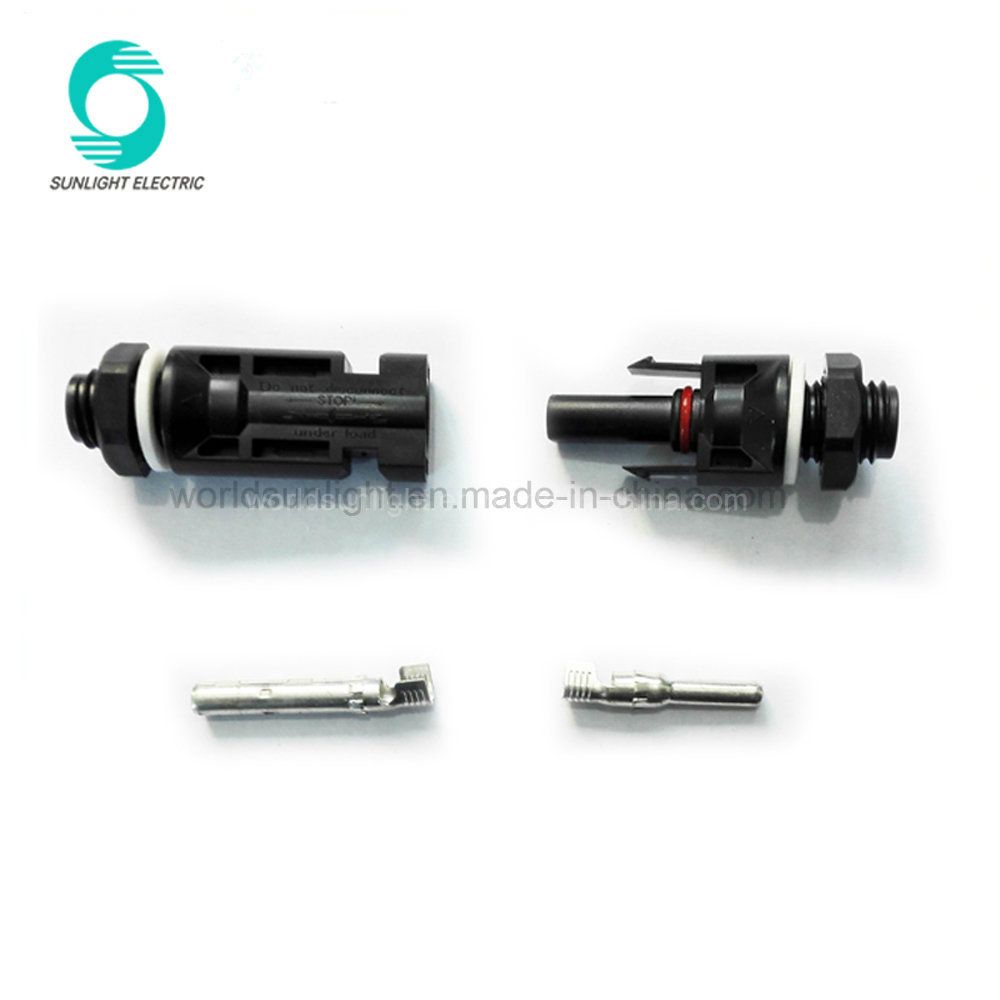

Waterproof Double Seal Ring Panel Mount Solar Connector Mc4 for PV system

Waterproof Double Seal Ring Panel Mount Solar Connector Mc4 for PV system
Price: US $ 0.35-0.4/Set
Min Order: 10/Set
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: WSPVPCC
Test Voltage: 6000V(50Hz, 1min)
Rated Current: 25A/30A
Rated Voltage: DC 1000V
Flame: UL94-Vo&UL94-5va
Contact Material: Copper, Silver Plated
Insulation Material: PPO
Degree Protection: IP67
Suitable Cable Cr: 2.5/4/6mm2 (14/12/10AWG)
Safety Class: II of Mc4 Solar Cable Connector
Temperature Range: -40~+125
Material: Silver-Plated Copper
Application: Solar Power System Home
Type: Solar Panel Connector
Character: Waterproof Firepproof
Species: Connector
Shape: Bar
Interface Type: Male/Female
Certification: Ce,TUV
Brand: Xianglang(Sunlight Electric)

Product Description

The Features of MC4 solar panel connector

1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Red Copper Tin-Plated
7. High heat resistance, wear-resisting

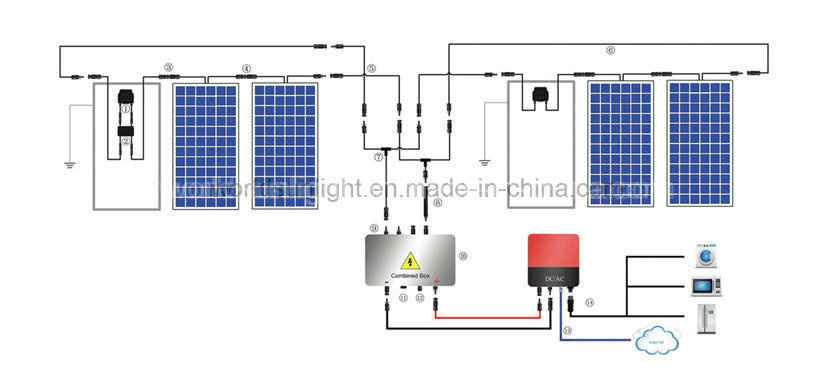

The Application of MC4 solar panel connector



The Parameters of MC4 solar panel connector
ItemSolar Panel Connector
Rated current30A(1.5-10mm2)
Rated voltage1000v DC
Test voltage6000V(50Hz, 1min)
Contact resistance of plug connector1mΩ
Contact materialCopper, Tin-plated
Insulation materialPPO
Degree of protectionIP67
Flame classUL94-VO
Suitable cable2.5mm2, 4mm2, 6mm2
Insertion force/withdrawal force≤50N/≥50N
Connecting systemCrimp connection

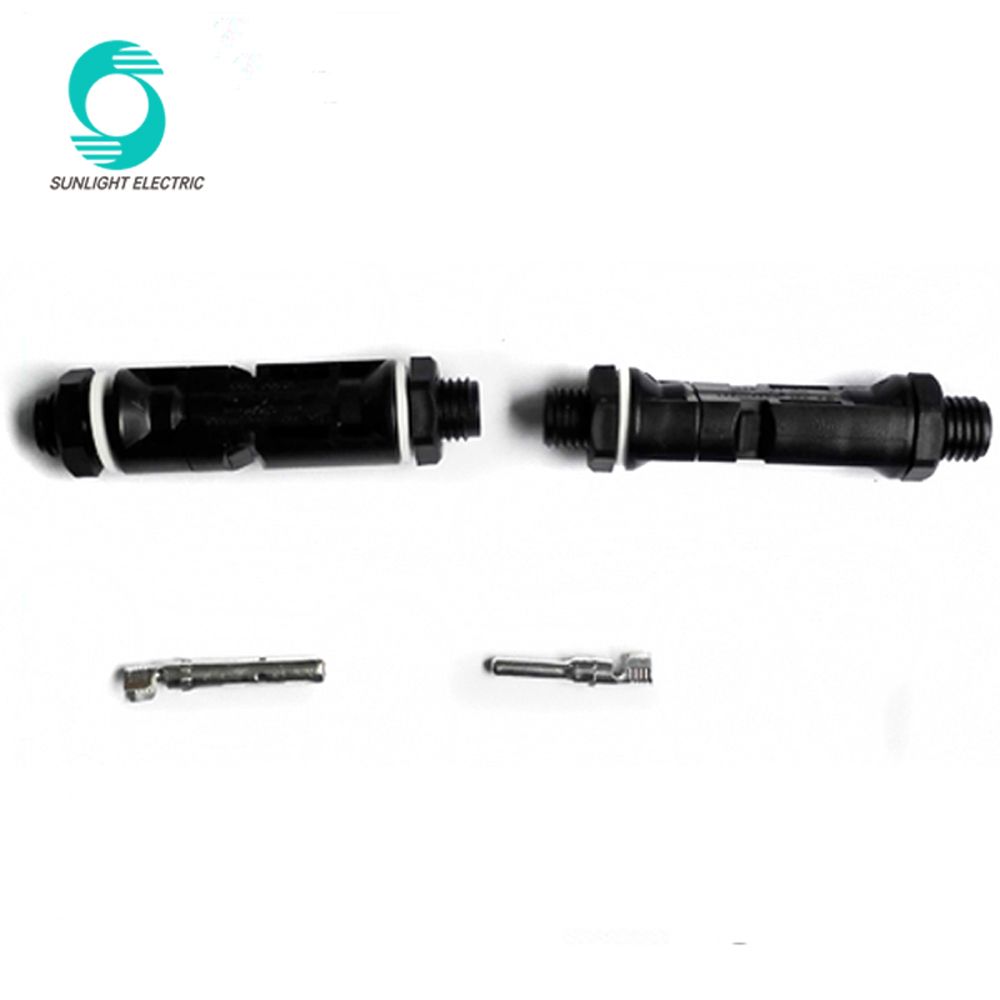

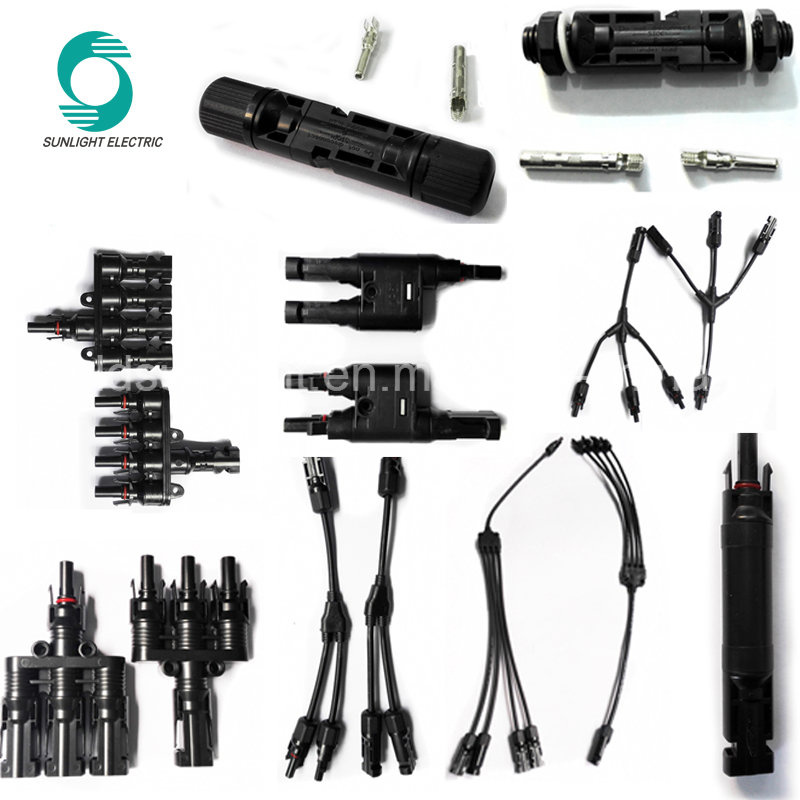

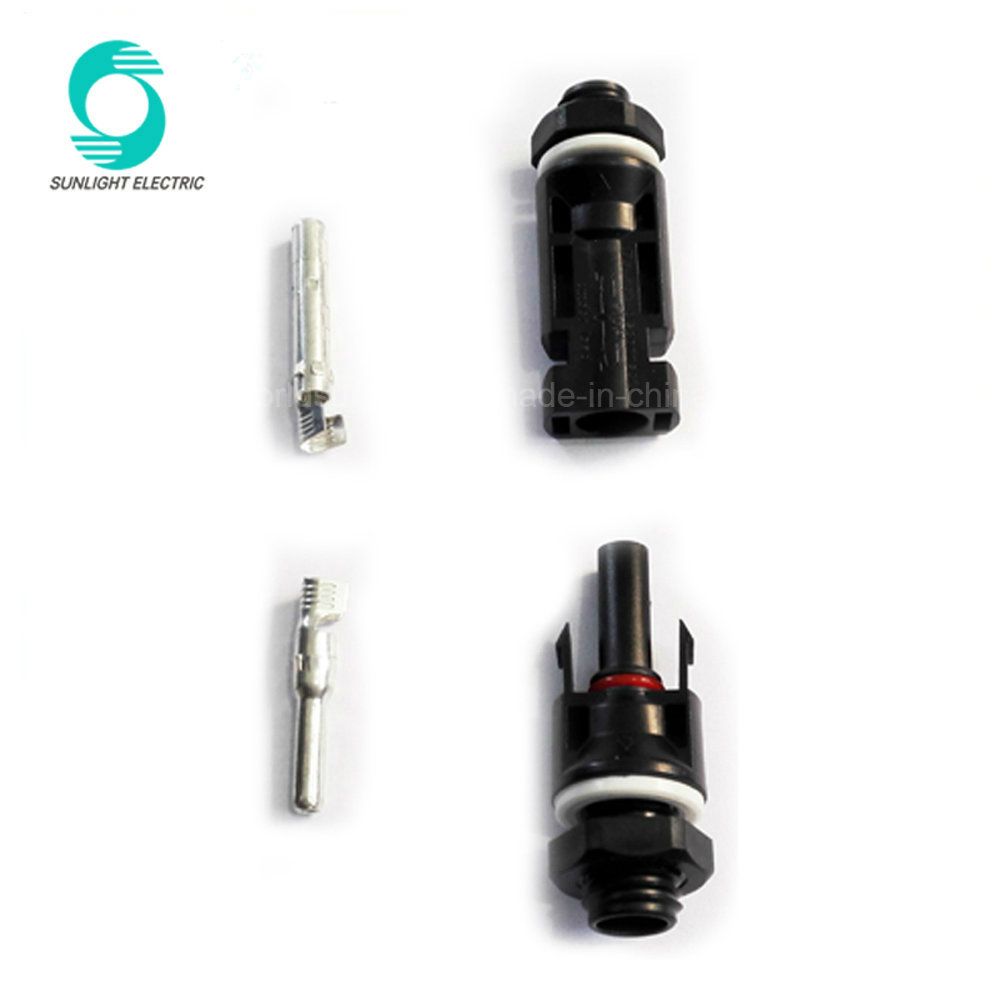

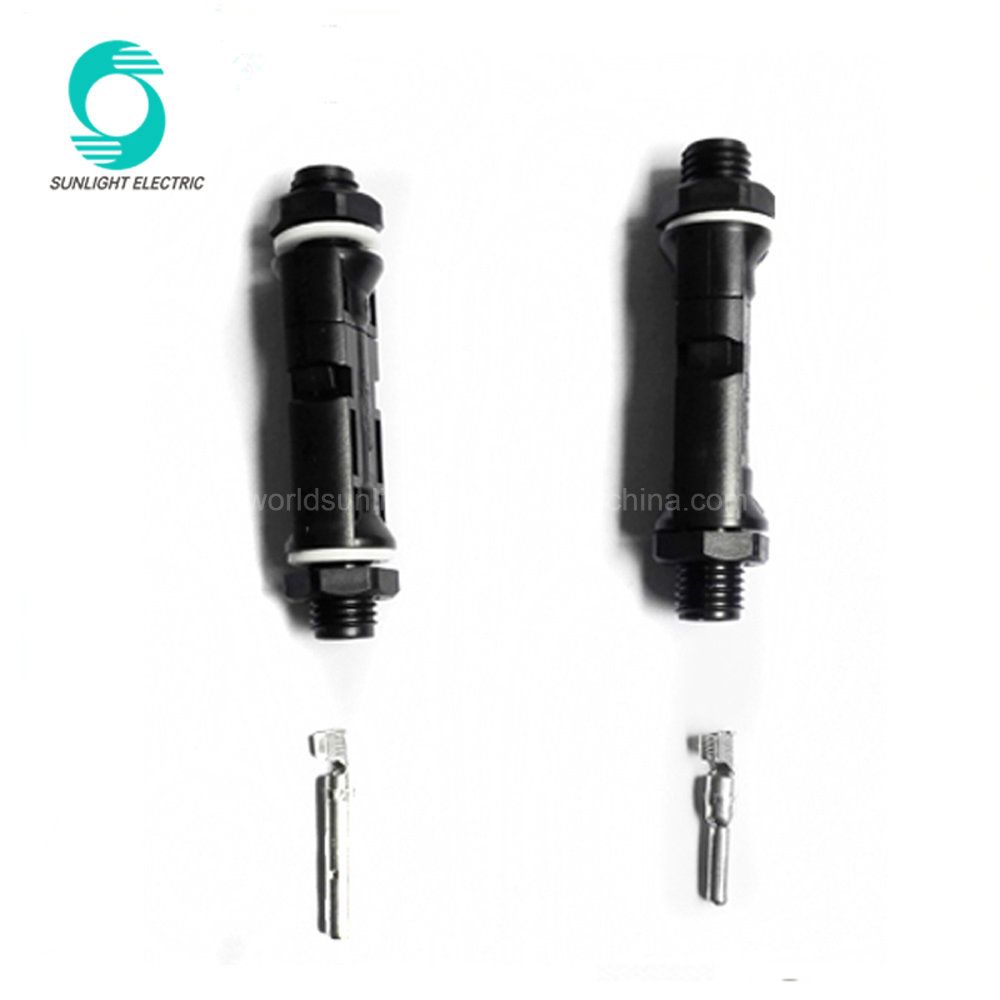

The dispaly of MC4 solar panel connector





The package of MC4 solar panel connector

Standard export carton packing:
MC4 connector 500pair/ctn
Carton Size 54*26*22CM
G.W./N.W.: 11.8/11kgs


The Delivery time and shipping of MC4 solar panel connector

Deilivery time:
1-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!


The FAQ of MC4 solar panel connector


Q1:If I'm interested in your MC4 when I can receive your quotation and detail information after send the enquiry?

A:All your enquiry will be replied in 24hours.


Q2;Can I get a sample before the order because I really don't how is your MC4 quality?

A:Of course! We also think sample order is the best way to build the trust.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!


Q3:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
