| Prod Model: |
OCT800-D |
| GSM Frequency: |
850/900/1800/1900MHz |
| Certificate: |
FCC, Ce, RoHS. |
| GPS Data Transfer Way: |
SMS and GPRS |
| Warranty: |
1 Year |
| Power Supply: |
6V-35V / 1.5A |
| Backup Battery: |
550mAh |
| Weight: |
75g |
| GPS Chipset: |
Latest GPS Sirf-Star III Chipset |
| Position Accuracy: |
10 M, 2D RMS |
| Time Accuracy: |
1 Us Synchronized to GPS Time |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
Oct800-D |
| Screen Size: |
No |
| Brand: |
Oner |
| Certification: |
FCC, Ce, RoHS |
Product Description

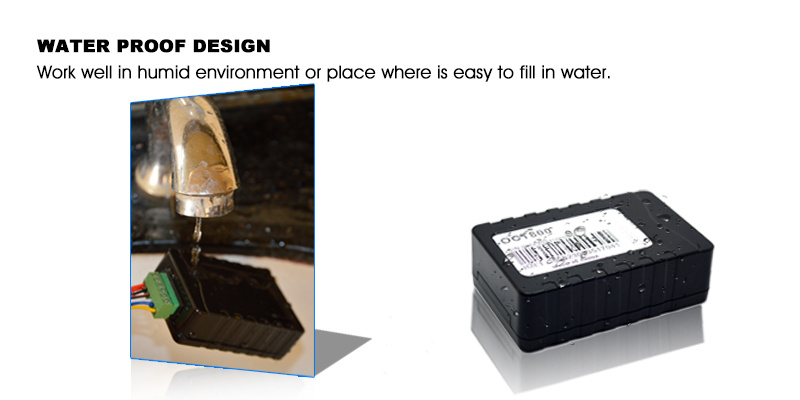

Waterproof GPS Car Tracker with 4 I/O Interface
GPS tracker is very popular in many countries, which can protect and manage their cars effectively.
However, it works not so good in case of transnational transporting. when the car enters another country
No GSM network, control room lost contact with the car, and something happen (car stolen, lost goods,
robbery, accident,etc), it may cause huge lost. Active roaming of SIM card is a solution, but only for SMS
It may be too late to take action, beside, it cost too much.
Oner brings new upgrade GPS tracker with dual SIM(OCT800), which work with 2 SIM cards, even
country, it can switch to the second SIM card, make sure real time tracking will continue. What's more,
OCT800 support high capacity CPU, features customization is available.
Features:Real time tracking
LBS Tracking
Track by interval
Dual SIM tracking
3 Admin No.s settings
Google map link inquiry
Engine cut remotely
SOS emergency alert
Geo-fence alert
Movement alert
Over speed alert
External power cut alert
Speed limitation
Vehicle info config and inquiry
Vehicle maintenance reminding
Power saving mode
Working time setting
Engine detecting
SIM balance inquiry
Fuel monitoring (option)
Mileage Calculation
Mileage Setting
Firmware update over the air
Technical Specification | Power supply | 6V-35V / 1.5A |
| Backup Battery | 550mAh |
| Dimension | 76mm x 50mm x 24mm |
| Weight | 75g |
| Operating temperature | -20° to 55° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | GSM850/900/1800/1900Mhz |
| GPS Chipset | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 m, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | <1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 m (60,000 feet) max. |
| Velocity Limit | 515 m/second (1000 knots) max. |
| Interface | 4 I/O |
| LED | 2 LED lights to show working status |
BenefitsAuto switch between dual SIM card, easy to use;
No need to active roaming, save cost
Improve tracking, no worry about losing contact in another country;
Increase the chance of stolen car recovery, even if the car is sent to another country;
Improve the management to cars and drivers,reduce extra cost.
Packing Content (Standard)1GPS Tracker
2 Relay
3 Power I/O cable
GPS tracking software
1) Free APP for GPS Tracking, track and control all the fleet vehicles at the same time

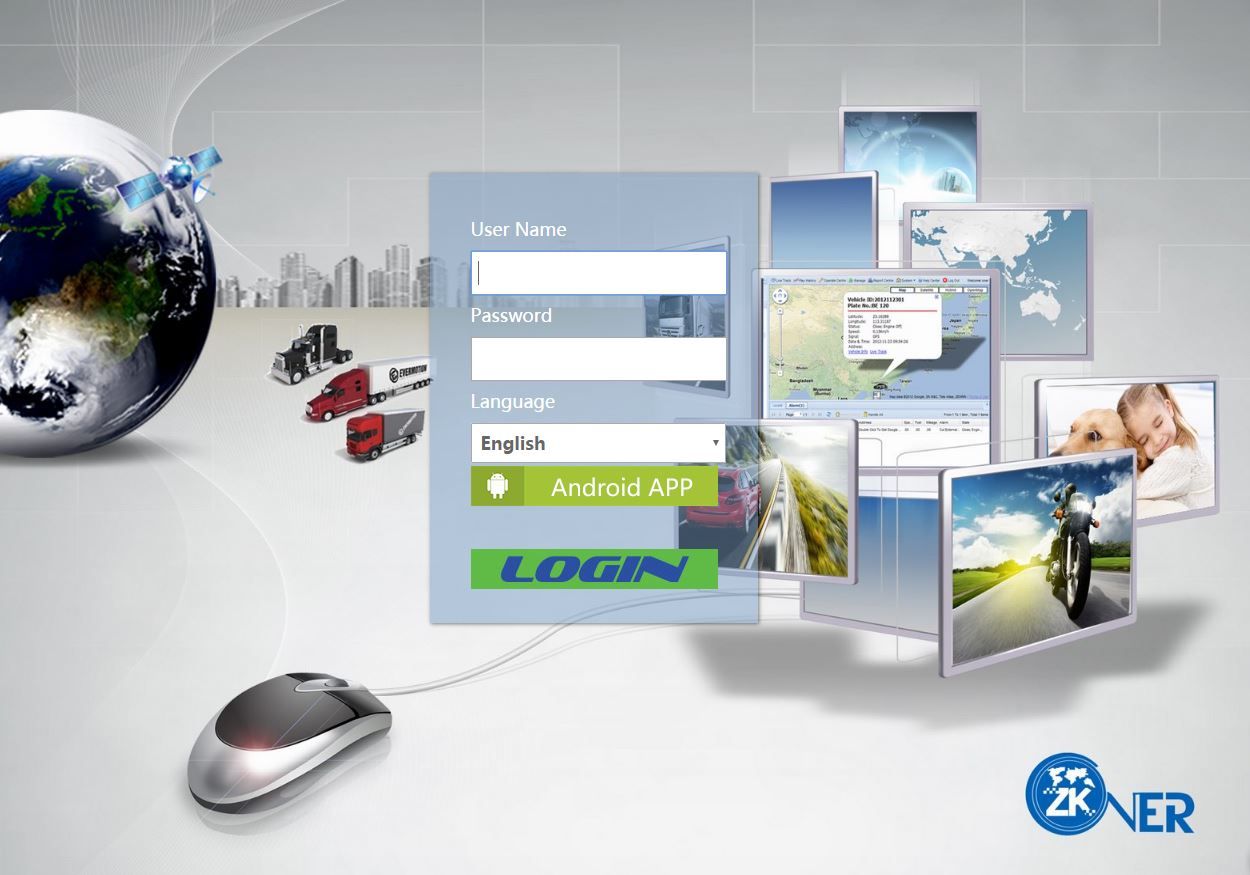

2) Web-based GPS tracking platform.
