| Prod Model: |
TK104 GPS Tracker for Vehicle |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery: |
6000 mAh |
| Certificate: |
Ce FCC ISO |
| Network: |
GSM/GPRS |
| GSM Network Frenquecy: |
850/900/1800/1900MHz |
| Function: |
Vehicle Rental/Fleet Management etc |
| Tracking System: |
Phone APP, SMS, Web Platform |
| OEM: |
All GPS Tracker Support OEM Logo |
| Type: |
GPS Tracker |
| Certification: |
ISO/Ts16949, ISO14001, ISO2000 |
| Model: |
104 GPS Tracker |

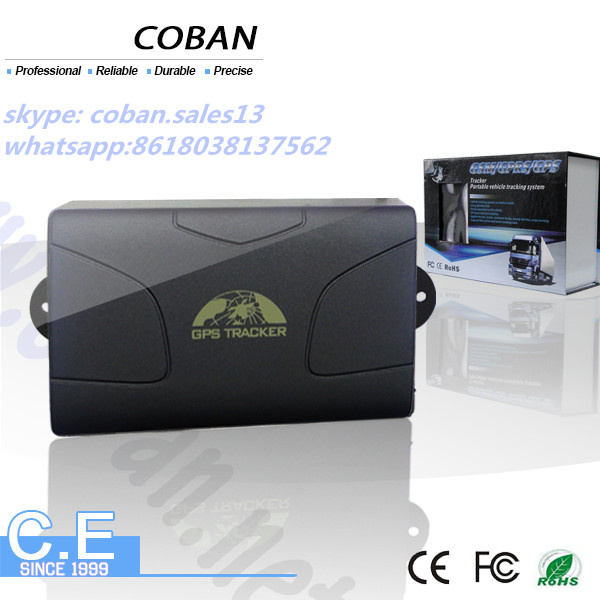

Product Description
gps tracker long standby tk104 waterproof vehicle truck gps gsm gprs tracker with internal / external antennas
Top Quality , Factory Price , 2 days delivery , 12 months Warranty.
Powerful magnet Car GPS tracker gps1023MINI Car GPS tracking device support waterproof GPS Tracker Powerful magnet Car GPS tracker gps1023MINI Car GPS tracking device support waterproof GPS Tracker
Model: GPS tracker TK-104
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
* Waterproof shell
* Built-in large capacity 6000MA battery, standby about 4 months in sleep mode and 12 months in deep sleep mode.
* Powerful magnets to absorb to vehicle firmly.
* Real-time tracking, retrieve of lost vehicles, cargo.
* Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
* Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
* Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
* Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
-get street name
-SMS/PDA/GPRS live track
-remote monitor
3. Main Function Description
For vehicle (12V-24V), for containers, heavy equipment/asset etc
1. Web based online tracking server www.gpstrackerxy.com
2.Location based service (LBS), SD card memory
3.Built-in flash 1MB (store about 16,000 positions); expanded volume depends on the SD card inserted.
4.Real time tracking by time&distance, voice listen in function
5.Remote shutdown vehicle engine and resume by SMS/GPRS
6.Geo-fence, movement, overspeed, low battery alarm
7.Shock sensor alarm, SOS panic button,USB configure
8.SMS tracking on cellphone with google maps link
9.Get aboslute address including street name by sms
10.Free PC based software for live tracking
11.Internal Accident alarm
12.Sleep mode by time&shock sensor to save battery
Functions:
O Web based online tracking
O View map on cellphone, PDA, view target current location on map on the cell
Phone and PDA with the maps link in the message from tracker
O Get location in real street/address name, send address + password to tracker. The tracker will reply detailed street address, like No. 113, Nantou guankou 2ND rd, Nanshan, Shenzhen, China
O If your target enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation
O Remote engine-stop and resume
O Tracking function by timing and frequency
O Authorized number added and deleted function
O Support hidden alarm and monitor function
O Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district
O The unit will send the message to the authorized numbers when it breach the district.
O Door alarm
O ACC alarm
O Movement alert: You can set up barriers when the vehicle is stopped.
Application
1. Vehicle for rental or manage of outside equipment, etc.
2. Protect the elder, kid, employee and pet, etc.
3. Protect the businessmen.
4. Manage the outworker.
5. Covert Tracking.
PLEASE NOTE:
Secure Home Direct does not provide software or IT support for the real-time GPS monitoring setup. To use the real-time tracking function you will have to open a communication port (of your choice) on your computer. If behind a router you will need to add your IP address and open the port on your router.
Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.
Package Contents:
GPS Car Tracker
SOS button and wiring
GPS Antenna
GSM Antenna
Relay
Wiring
Software CD
English Manual
Protective sleeve
Wall power adapter 100-240V
Car cigarette power adapter
| Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA± 1mA |
| GSM operating Current | 54mA± 3mA |
| GPRS Current(data transfer) | 60mA± 5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A± 0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
