| Prod Model: |
container GPS Tracker Tk104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC ISO |
| Battery: |
3.7V 6000mA/H Polymer Battery |
| Feature: |
Waterproof, Powerful Magnetic, Long Battery Life |
| Network: |
GSM/GPRS |
| OEM: |
Yes |
| Car Tracking System: |
SMS, Cell Phone APP, Web Platform |
| Type: |
GPS Tracker |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Model: |
Tk104 GPS Tracker for Container |
Product Description

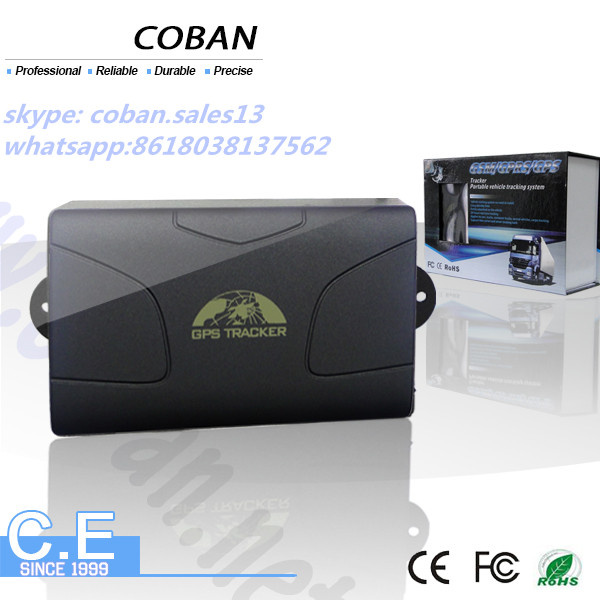

Model: GPS tracker TK-104
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car tracker Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car tracker
2. Features
* Waterproof shell
* Built-in large capacity 6000MA battery, standby about 4 months in sleep mode and 12 months in deep sleep mode.
* Powerful magnets to absorb to vehicle firmly.
* Real-time tracking, retrieve of lost vehicles, cargo.
* Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
* Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
* Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
* Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
-get street name
-SMS/PDA/GPRS live track
-remote monitor
Vehicle fleet/logistics/Vehicle rental GPS tracker support GSM/GPRS network on APP/web platform tracking
Gps tracker gps tracking device car gps tracker GPS vehicle tracker Wholesale vehicle gps tracking device support Built-in GPS/SM antenna GPS103 gps tracking device
3. Main Function Description
For vehicle (12V-24V), for containers, heavy equipment/asset etc
1. Web based online tracking server www.gpstrackerxy.com
2.Location based service (LBS), SD card memory
3.Built-in flash 1MB (store about 16,000 positions); expanded volume depends on the SD card inserted.
4.Real time tracking by time&distance, voice listen in function
5.Remote shutdown vehicle engine and resume by SMS/GPRS
6.Geo-fence, movement, overspeed, low battery alarm
7.Shock sensor alarm, SOS panic button,USB configure
8.SMS tracking on cellphone with google maps link
9.Get aboslute address including street name by sms
10.Free PC based software for live tracking
11.Internal Accident alarm
12.Sleep mode by time&shock sensor to save battery
Applications:
Applies to: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
| Content | Specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 2.5mA |
| GSM operating Current | 54mA±3mA |
| GPRS Current(data transfer) | 60mA±5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1A±0.2A |
| Charge time | 7h |
| Standby time | Sleep mode | 2400h |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
