| Prod Model: |
Vehicle Tracking Device 303G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
Ce FCC |
| Warranty Time: |
1 Year |
| Application: |
Tracking Car/Motorcycle/Bike |
| Fuel Sensor To Detect Fuel Level: |
Yes |
| Remote Cut Off Engine: |
Yes |
| Acc Work Alarm: |
Yes |
| Hot Sell Car GPS Tracker: |
Waterproof, Engine Shut off Remotely |
| Easy Hide GPS Tracker: |
Internal GPS GSM Antenna |
| GPS Accurancy: |
5meter |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Motorcycle Tracker GPS 303 |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

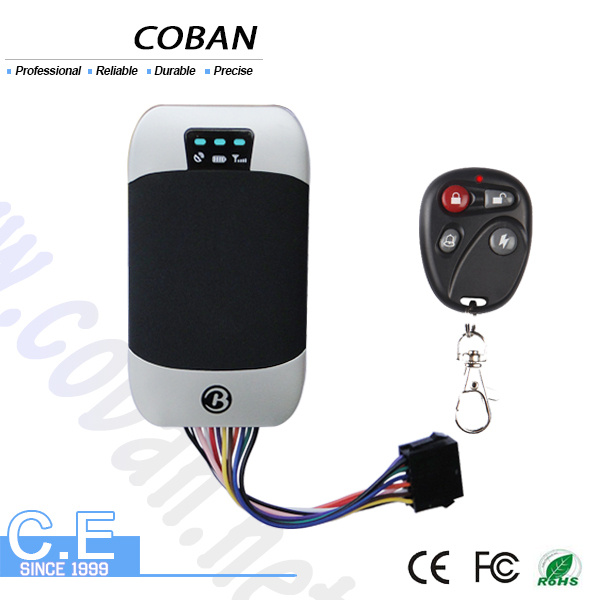

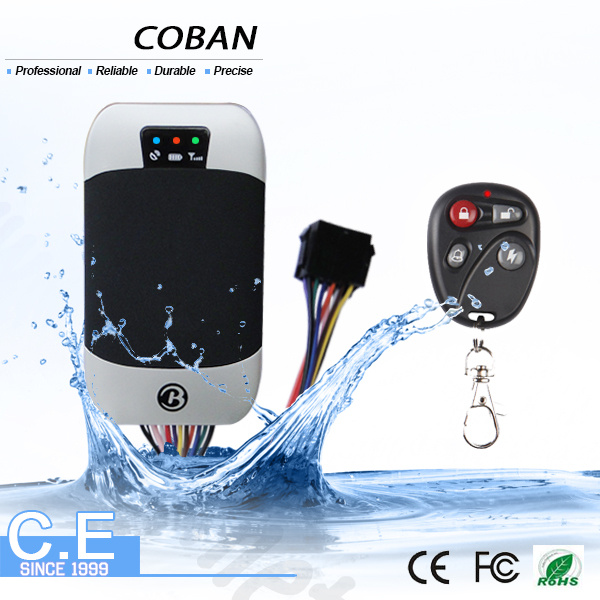

waterproof hiden GPS Vehicle Tracking Device with Engine Shut Remotely
Model: GPS 303
1. SummaryWorking Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
2. Features1. Handheld and Vehicle purpose.
2. Built-in GSM, GPS antenna, compact, elegant appearance.
3. Support GPS and LBS (Location based service) double tracking solutions.
4. Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
5. Support configure the settings remotely
6. Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
Model: GPS303F/G
F without remote controller ,G with
how does the GPS Car Tracker work?
All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.
With internal GSM,GPS antenna , this device is easy to hide and install on vehicle or motorcycle . It is powered by both internal battery and the automotive battery .
Here is a small list of what it can do for you and your vehicle:
1.Track on Demand - Replies with a TXT message of current latitude, longitude, speed, and time, as well as an Internet map link to your cellphone to show you exactly where the GPS tracker/your vehicle is.
2.Geo-fencing control - When the vehicle moves in/out the preset scope, it will send an SMS alarm to the authorized phone numbers.
3.Movement and Speed Alert:--The tracker can warn you with SMS message when the vehicle starts to move from a stationary status, or when the vehicle is moving faster than a preset speed.
4.ACC alert:--In case of acc on under arm state ,the tracker device will send sms alerts to authorized numbers.
5.Stop the Engine- You can send an SMS message to the tracker to cut off the gas and battery power, so the engine will remain in an immobilized stated until your remove the alarm status.
6. Fuel check/alert:-- Optional fuel sensor is to detect and report fuel consumption.When fuel is decreasing too fast,the gps device will send fuel alert to prevent fuel leakage or theft .
7.GPRS- With a GPRS enabled SIM card, you can monitor real-time movement of your vehicle with the supplied software on your computer.
8. Internal 1MB memory --- Built-in memory for 16,000 positions . It also support 2GB SD card .
Main features :
1. Internal GSM/GPS antenna .
2. GSM quadband .
3. SOS panic button .
4. Geofence ,movement alarm ,over speed alarm .
5. Arm/Disarm(ACC/Shake alarm )
6. Remotely shut down engine .
7. Support fuel sensor.
8. Realtime google maps .
10. Show lat/long and google map link on mobile .
11.support 5 authorized numbers .
4.application
Used widely for vehicle and car rental, Fleet management etc .
| Content | Specification |
| DIM | 8.9×5.0×1.6cm |
| Weight | 65g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accurancy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

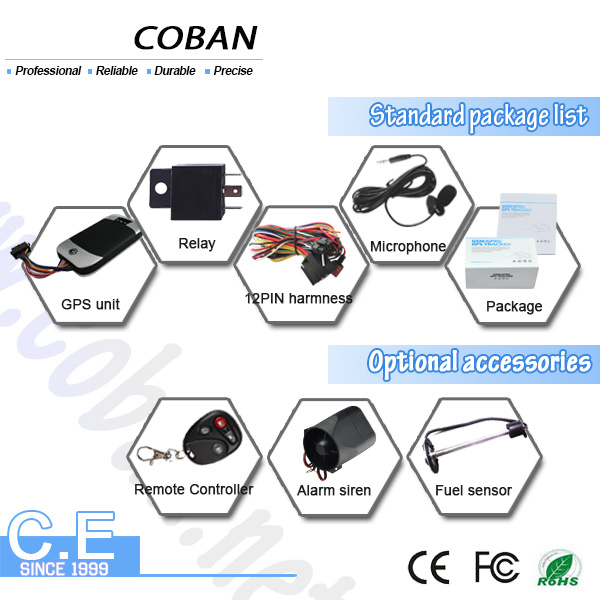

What accessories come with package

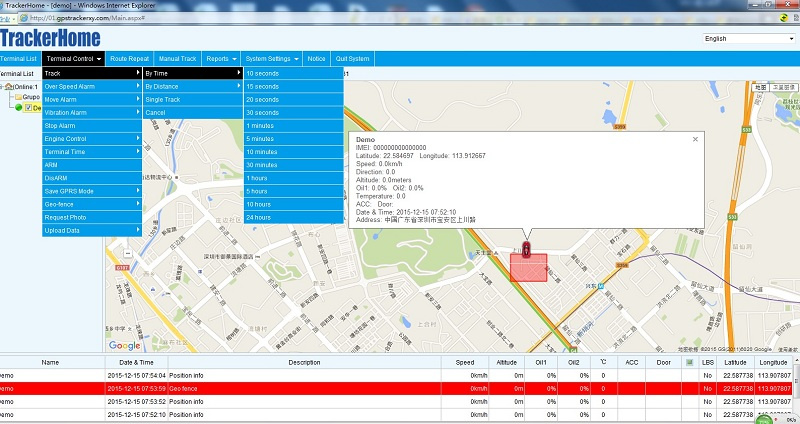

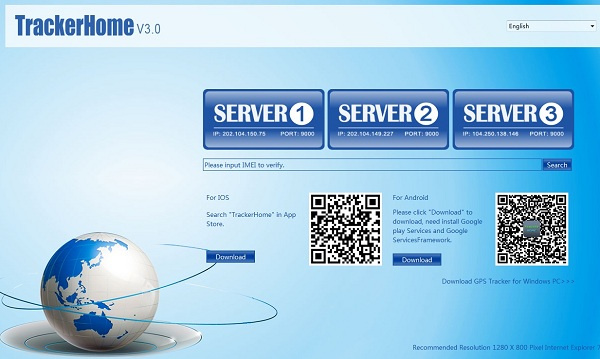

TRACKING SOLUTIONS-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen. -Get absolute address by SMS-Android IOS app tracking -Web server online tracking. Capable of monitor 10,000 objects
