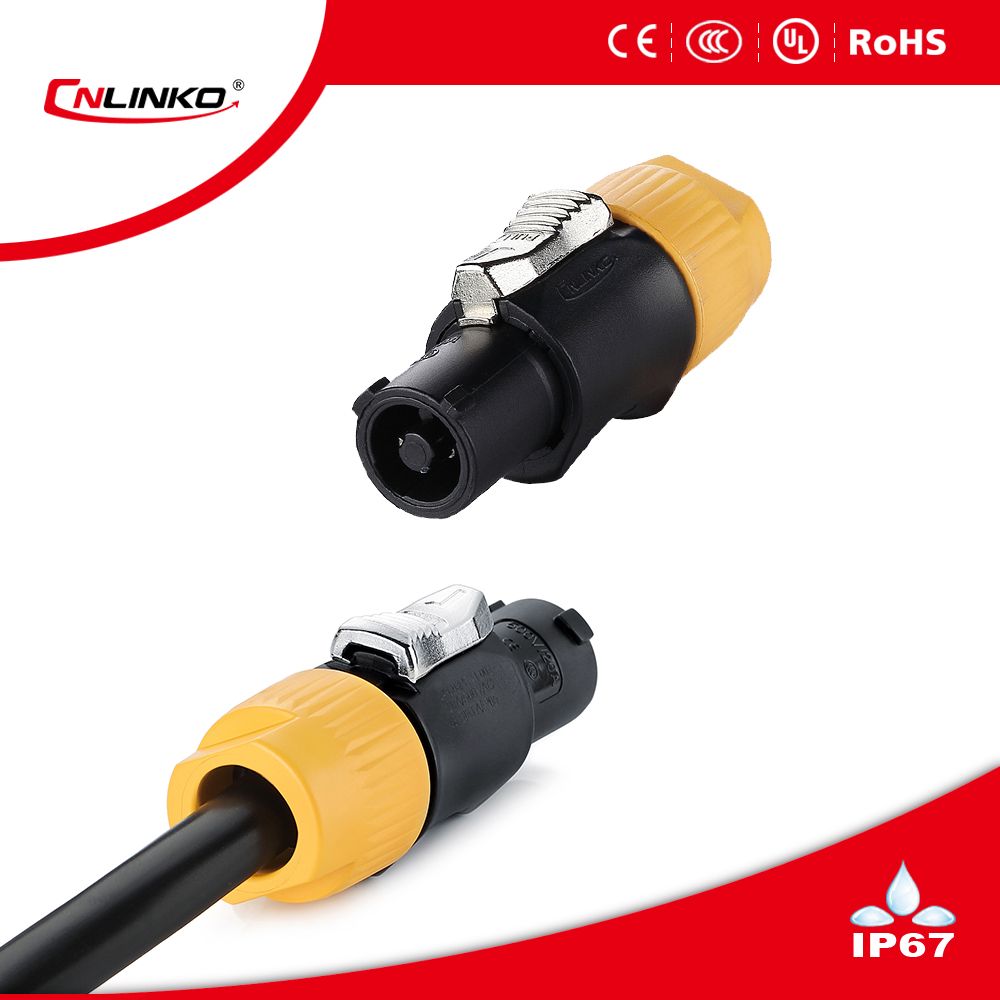

Waterproof IP65 Powercon/Power Connector for LED Screen

Name: Waterproof IP65 Powercon/Power Connector for LED Screen
Brand: all-electronics-online.com
SKU: 706510112
Availability: InStock
Rating: 4.8 (80 reviews)

Price:	US $ 1.8-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YF-24-C03PE-04-001, YF-24-J03SX-04-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ceritification:	UL, Ce, CCC, RoHS, ISO9001
Apply For:	LED Display or LED Cabinet
Current Rated:	20A
Operating Voltage:	500V
Protection Level:	IP65/IP67
Assembly Wire:	Screw and Solder
Flammability Rating:	UL94-V0
Durability:	>500times
Waterproof Cover:	Silica Gel
Contact Resistance:	<3mΩ
Application:	UHF
Gender:	Male Plug and Female Socket

Product Description

waterproof ip65 power connector/ power connector for led screen

Specifications:

YF-24-C03PE-04-001, YF-24-J03SX-04-001
Connecting mode	lock
Protection level	IP65/67
Cable specification	2.5mm ² ~ 4mm ² /14~12AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter ×Qty	Φ2.0x3
Current rating(A)	20A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	2500V
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Prevent the combustion level	UL94-V0
Temperature rise	12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C
Color	Red
Protective housing	PBT Material
Install method	1/4 Quick bayonet
Material
Shell&Insulated parts	High-performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Assembly wire	Solder
Copper needles	Copper alloy(gold-plated)
Waterproof	Silica gel

Contact Information:
Eunice Tan ( sales manager )

Packaging & Payment & Shippment:
Packaging: 10pcs/small box, 100pcs/ middle box, 240pcs/master box
Payment: T/T, Western union, Paypal

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
