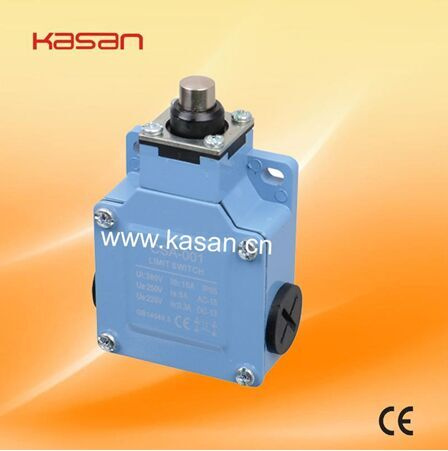

Waterproof IP66 Electrical Limit Switch CSA-001 Switches

Name: Waterproof IP66 Electrical Limit Switch CSA-001 Switches
Brand: all-electronics-online.com
SKU: 697916212
Availability: InStock
Rating: 4.3 (52 reviews)

Price:	US $ 0.0001-10000/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CSA-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Level:	IP66
Product Name:	Limit Switch
Working Temperature:	-5-+65 Degree .

Product Description

Limit switch CSA series

Features
Strong metal outer shell, swing arm max. 95
Long life (20, 000, 000 mechanical operations)
Stainless steel idler wheel, punch and spring
Selective PG11 cable gland...

Characteristics

Double Break Mechanism	INO+INC Force Break snap action
Rated Voltage/Current	10(4)A, 125, 250VAC/6(2)A, 380VAC For inductance Load, CosØ =0.4
Contact Resistance	25 max. (initial value)
Insulation Resistance	100mΩ min. (at 500VDC)
Dielectric Strength	1000VAC, 50/60 HZ for 1 minute between terminals of the same polarity
	1500VAC, 50/60 HZ for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Electrical Life	500,000 at 10A 250VAC Resistive
Mechanical Life	10, 000, 000 operations min. (under rated conditions)
Operating Speed	5mm/s to 0.5m/s
Degree of Protection	IP65
Ambient Temperature Rised	Max 30 over ambient temperature at rated voltage/current
Conformed Standards	Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660
Operating Temperature	-5 oC~+65oC (with no icing)
Storage Temperature	-5 oC~+65oC (with no icing)
Ambient Operating Humidity	95 RH Max.
Shock Resistance	Mechanical durable: 1000m/s2 min.
Shock Resistance	Malfunction: 300m/s2 min.
Vibration Frequency	Malfunction: 10 to 55HZ, 1.5mm double amplitude
Terminal Screw Torsional Force	6-8 kgf-cm
Other Screw Torsional Force	Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
Bare Wire Diameter	Ø2 Max
Cable Diameter	Ø12 Max (IP 65 if use cable 8-9)
