| Prod Model: |
car gps tracker tk 303g |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Car Security: |
Engine Shut off, Acc and Fuel Alarm |
| Map: |
Real Time Google Map |
| Weight: |
60g (Small and Light) |
| Features: |
Intenral Antennas and Waterproof |
| Warranty Time: |
12 Months |
| Function: |
Motor Vehicle Car GPS GSM GPRS Tracking System |
| Delivery Time: |
2-3 Business Days |
| Packaging: |
50 Unit /Carton in Standard Color Box |
| Alarms Under Arm: |
Acc Door, Shock Sensor Alarm |
| Apllication: |
Fleet Management Tracking Solution |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Position and GSM Transmit Data |
| Port Number: |
20 |
| Model: |
Car GPS Tracker Tk 303G |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Car GPS Tracker Tk 303G |
Product Description
Waterproof IP66 GPS tracker motorcycle vehicle tracking system with remote for engine shut down GPS tracking unit is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals. The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit. This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.
2. Features
* Built-in GSM, GPS antenna, Waterproof ,compact, elegant appearance.
* Support GPS and LBS (Location based service) double tracking solutions.
* Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
* Support configure the settings remotely
* Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
This device is divided into the following four types according to the function parts:
Type A: Handheld, simple function, tracking, monitoring, with home charger, no external hardness.
Type B: Simple car solution with 3 PIN harness for 12/24V power supply & ACC detection, tracking and monitor.
Type C: Fully functional vehicle with 12 PIN harness for ACC, door, cut off oil and power, Support fuel measurement
Type D: Add remote controller to ARM & DISARM on the basis of type C.
3. Main Function discription
1.For all models vehicles(12-24v)
2.Location based service(LBS) + GPS double tracking solution
3.GPS blind spot alert
4.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
5.Save GPRS traffic mode(Money save mode)
6.Anti-theft gsm alarms:
Movement alarm
Geo-fence alarm
Over speed alarm
ext.power off alarm
low battery alarm
7.Alarms under ARM State: ACC/Shock alarms
8.Remotey shutdown engine .
9.Support MiroSD
10.Built-in memory for 16,000 positions
11.Built-in 500 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP
Content | Specification |

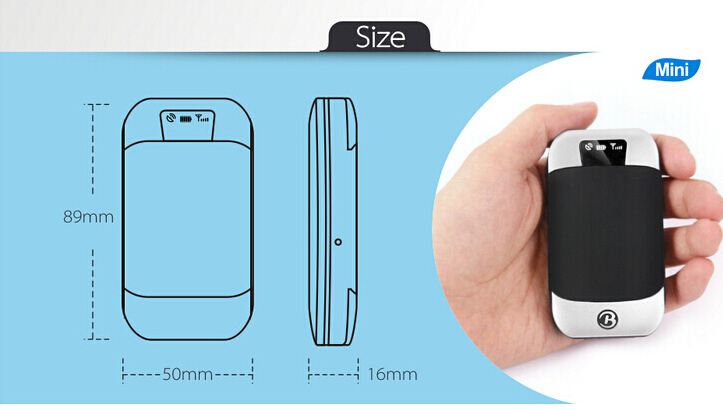

| DIM | 8.9×5.0×1.6cm |
| Weight | 65g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accurancy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

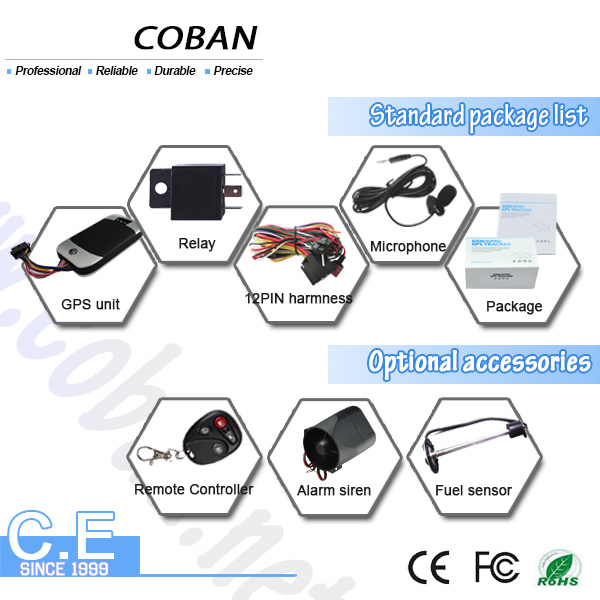

Item Includes:
GPS unit
12PIN harness
Microphone
Relay
Screwer
Manual
Giftbox
Multiple Tracking Ways:
A>: SMS + Map software;
B>: IOS and Andorid app
C>: PC based free tracking software and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com, demo id:demo,password:8888
It is ok to track 10,000pcs units in platform at one time!
Application
Used widely for vehicle and other moving objects tracking. Real-Time Vehicle Tracking Solutions For Business
1)Live Fleet Tracking Systems: Engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data! Providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system.
2)Boost Employee & Vehicle Efficiency: By utilizing a fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance, customer service and company profit.
3)Auto Theft Security: Vehicle locator systems can protect all of your companies mobile assets. Easy to set geo-fences will allow businesses to create safe zones that will send text message notifications if a vehicle moves outside the programmed safety zones. Don't let your business operations be slowed down by theft! With GPS trackers securing your company vehicles, automobile theft will be a thing of the past!
