Waterproof IP67 3 Pin Waterproof Connector with Screw Locking Wire Design

Name: Waterproof IP67 3 Pin Waterproof Connector with Screw Locking Wire Design
Brand: all-electronics-online.com
SKU: 776620785
Availability: InStock
Rating: 4.5 (25 reviews)

Price:	US $ 5.4/Set
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Set
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YW-20-C03PE-02-001 & YW-20-J02SX-03-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Multi Pins:	3jpin
Connecting Type:	Screw Connecting
Certification:	UL, CE, RoHS, CCC, ISO9001
MOQ:	100sets
Materials:	Metal

Product Description

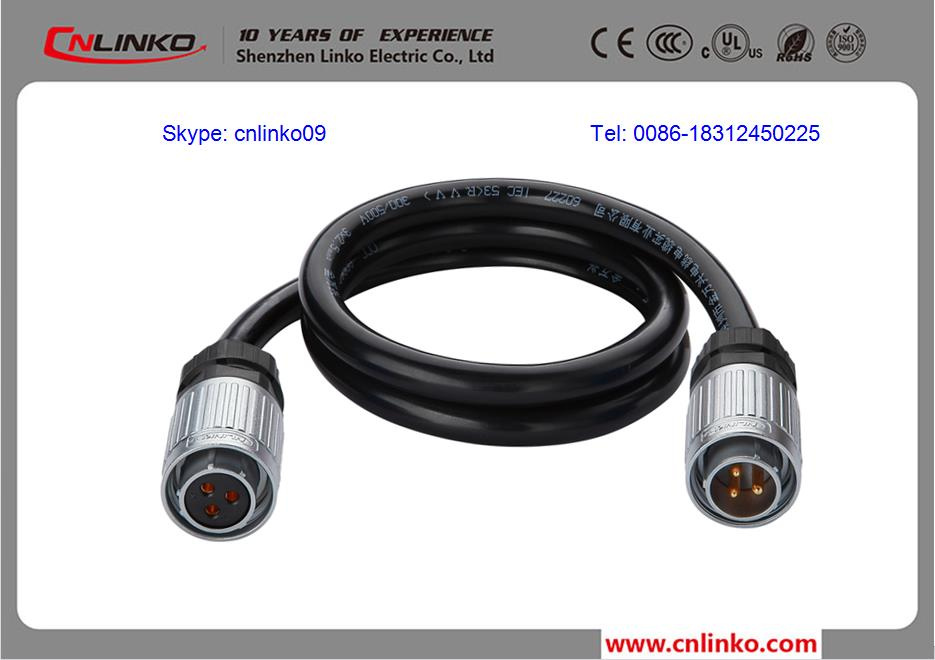

Waterproof IP67 3 Pin Waterproof Connector with Screw Locking Wire Design

YW20 waterproof connector,zinc alloy shell,effective safety and signal shielding,using the locking screw,more secure and reliable.

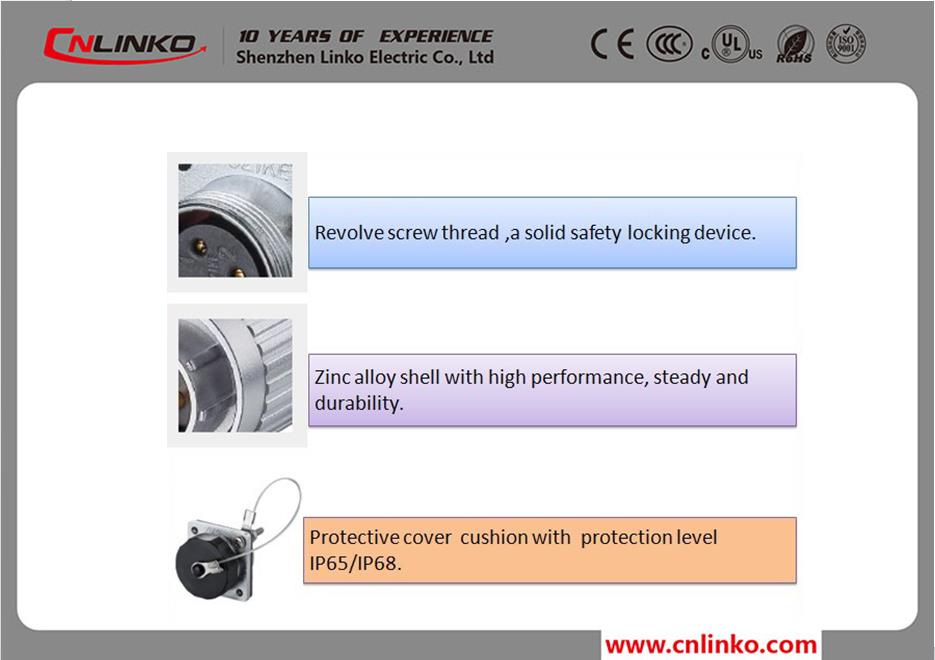

1.All zinc alloy shell,complete with electromagnetic and radio frequency interference protection,while meeting the needs of high-end products to match

2.Outer screw locking device,a solid safety.

3.16MM and 20MM optional mounting dimensions.

4.Quick and easy nut locking system design.

5.Hanging dust cover design avoid matters;high safe performance,easy to operate.

6.2-12 pins for choice.

7.5-20A rms rated current.

8.Slip-resistant outer circle

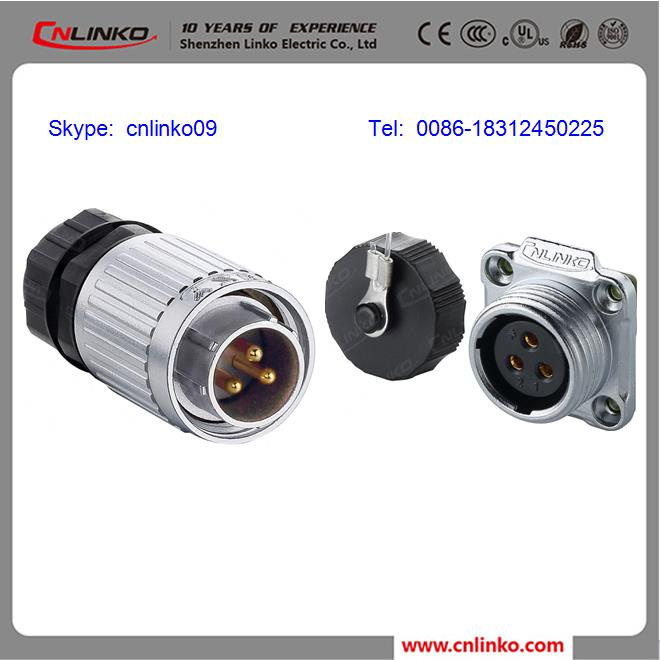

YW-20-C03PE-01-001,YW-20-J03SX-01-001
Specifications:
Connecting mode:	Plug/unplug,
Protection level:	IP67
Cable specification:	2.5 mm2 ~ 4 mm2 /14~12 AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.7×2
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0
Temperature rise:	20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery
