Waterproof IP67 Constant Voltage LED Power Supply

Name: Waterproof IP67 Constant Voltage LED Power Supply
Brand: all-electronics-online.com
SKU: 772503335
Availability: InStock
Rating: 4.5 (104 reviews)

Price:	US $ 21.87-24.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E200C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Power Source Fro LED Light with RoHS Certification
Output:	200W
Input Voltage:	170-250V
Output Voltage:	12V
Power Factor:	0.65
Efficiency:	88 %
IP Rating:	IP67
Weight(Kg):	1.400
Packing Information:	10 PCS/ Carton, G.W 14 Kg
Operating Temperature:	-25~40ºC
Usage:	Construction
Output Type:	Dual
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC170-250
Brand:	Neonpro

Product Description

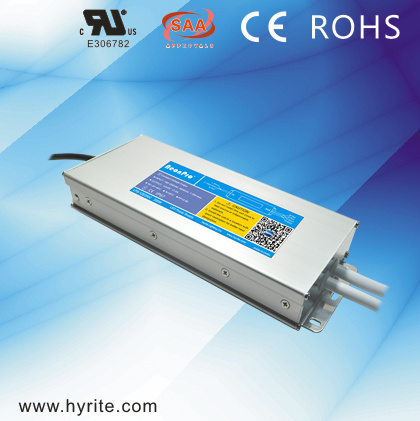

Super thin IP67 Power Supply for LED Light with CE RoHS

1. Slim body ,easy for installation .
2. High efficiency rate >88%.
3. Aluminum housing ,good for thermal removal ,longer using life.
4. Waterproof ,grade of waterproof is IP67 .
5.Guarantee: 2 years .

Application of 90W led power supply with UL certification:

LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

Specification of 90W led power supply with UL certification

Model no.	LPS-12E200C
Input voltage	170-250 VAC 50/60 Hz
Max. power	200W
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	88%
Output voltage	12VDC ± 5%
Output current	16.7 A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE,SAA,SASO

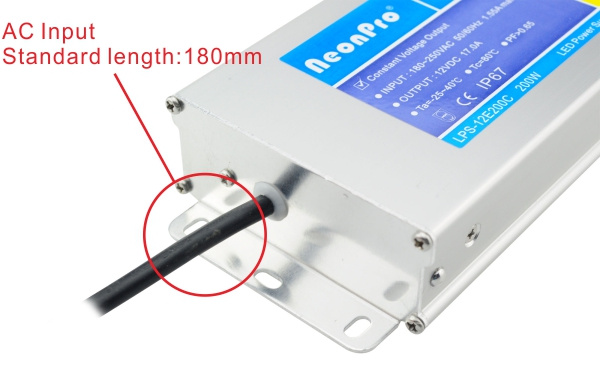

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*4 (18cm)
Dimensions(LWH)	2538536 mm
Weight(kg)	1.4
Packing information	10Pcs/ Carton, G.W 14 KG

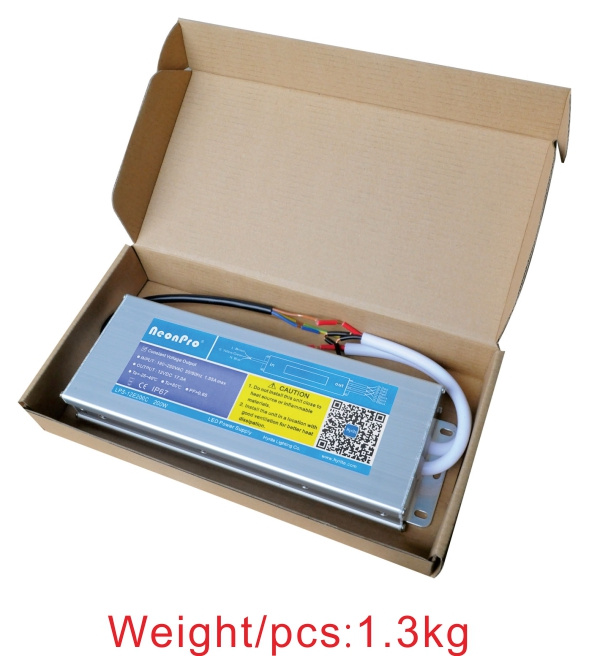

Details of LED driver:

FAQ :

1.Shipment:
Ocean or air transportation, international express
2.Normal lead time:
1 day for in stock and 10-15 days for out of stock product
3.Price term:
FOB, C&F, EXW
30% before production, 70% before shipment.
4.Supply ability:
50000 units/month
5.MOQ:
10 units(but sample can be 1)
6. Discounts :
We offer discount for big quantity
7.OEM and ODM service.

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
