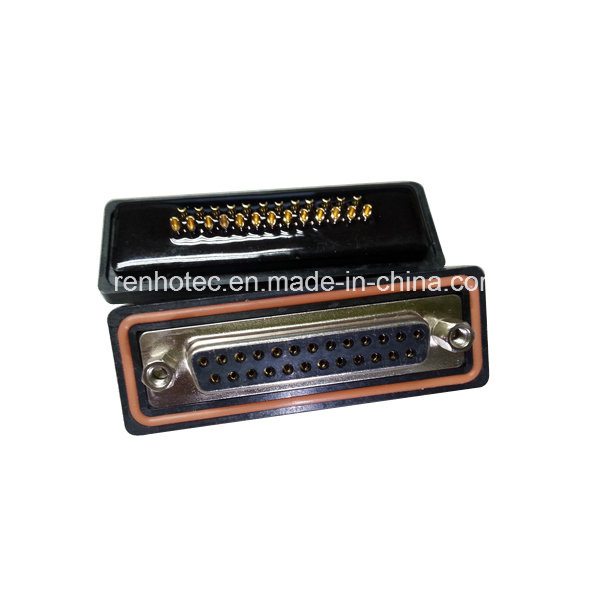

Waterproof IP67 dB 25pin Female Connector VGA

Name: Waterproof IP67 dB 25pin Female Connector VGA
Brand: all-electronics-online.com
SKU: 794380815
Availability: InStock
Rating: 4.7 (133 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RHT-681
Business Type:	Manufacturer
Connector Type:	VGA
Contacts:	9/15/25/37/44
Orientation:	180 Degree
Mt Type:	Solder
Waterproof Degree:	IP66-68
Warranty:	12 Months
Lead Time:	7-10 Days

Product Description

DESCRIPTION:Waterproof Solder Type Dsub Female Connector

SPECIFICATION:

Waterproof Rating	IP66 - IP68
Current Rating	5.0 AMP
Contact Resistance	2.7m Ω Max
Insulation Resistance	5000m Ω Min
Withstand Voltage	500V AC/Minute
Operation Temperature	-55ºC to +125ºC
Core Range	22AWG - 26AWG

MATERIAL:

Contact Material	Brass
Contact Plating	Au or Sn over Ni
Insulator Material	Polyester (UL94V-0)
Standard	PBT+30%GF

OUR SERVICE:
1. We offer factory price and normally our MOQ is 1000pcs, but small orders are also welcome.
2. OEM order is warmly welcome, we have 10 years OEM professional experience.
3. Good quality: Our QC staffs inspect product one by one and the defect rate is under 3%, we can assure the best quality.
4. Fast delivery: 3-5 days for sample, 10-15 days for bulk order.
5. Warranty:12 months after-sale service.
6. We promise to give you feedback within 24 hours and find solution in the next 48 hours.

Choosing the right partner to build your cables and connectors will have a positive impact on your business. RENHOTEC have built a great reputation for high quality products, service, reliability and competitive pricing. RENHOTEC corporate culture is based on partnership and trust, for staff as well as for customers and business partners.
1) Low cost / high quality products
2) Effective communication and rapid response
3) Early design-in capability
4) Globalization, localization of operation and management

RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.

Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.

Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.

Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.

Our managing principles:Good quality, loyalty and common prosperity.
