waterproof IP67 Magnetic Car GPS Tracker with Internal and External GPS GSM Antennas
| Price: |
US $ 35-46/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
TK104 |
| Certificate: |
Ce FCC |
| Features: |
Internal Antenna, Waterproof, Magnetic |
| Delivery Time: |
1-3 Working Days |
| Quad Band: |
850/900/1800/1900 MHz |
| Network: |
GSM GPRS |
| Person Vehicle Security: |
Sos, Real Time Tracking, Geo Fence Alarms etc |
| Gross Weight: |
0.88kg |
| Power: |
12V-24V |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Certification: |
ISO9001 Ce FCC |
Product Description
Waterpoof IP67 magnetic car gps tracker with internal and external GPS GSM antennas GPS-104B tracking unit is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals. The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit. This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.
Waterproof
Inbuilt Shake Sensor
6000mAh battery
Long standby time of 60 days
4 Bands, can be used all over the world
Stylish Design, Powerful magnets inside, Sleep function
OEM/ODM Available (change the functon, color, logo, gift box, ...)

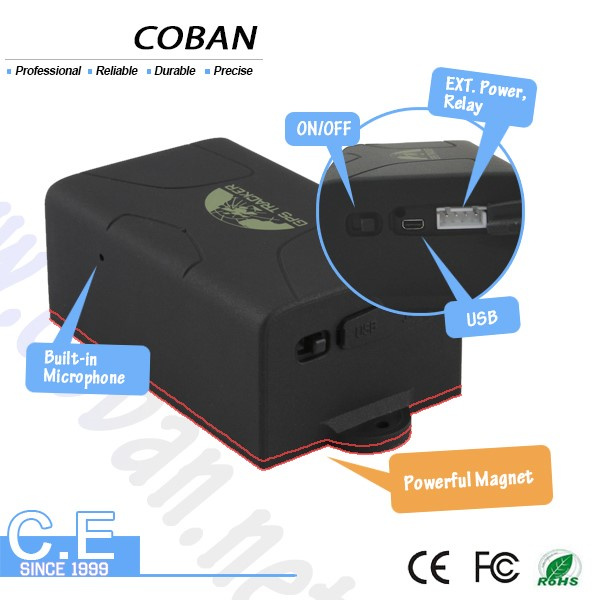

What's the special?
-standby 60 days
-built in motion sensor
-built in Built-in GPS antenna and GSM antenna
-Built-in powerful magnet
-EXT. Power, Relay
-3 LED Indicators
-support AC Adapter and Lighter car adapter
-SOS in emergency
-Door alarm, ACC alarm, sensor alarm
GPS Tracker with oil cut and resume function
What's the basic information?
General
Based on GSM/GPRS and GPS network, you can locate and monitor any remote targets by SMS or GPRS.
Features:
O Waterproof shell
O Built-in large capacity 6, 000mA battery, long standby time of 60 days
O Powerful magnets to absorb to vehicle firmly
O Real-time tracking, retrieve of lost vehicles, cargo
O Movement alarm, geo-fence alarm, shock sensor alarm, and remote Monitoring
O Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real-time tracking on web based server
O Built-in high sensitivity GPS and GSM antenna to make it can be used alone Without installation, convenient and quick
O Supports for external GSM antenna, GPS antenna, and external power supply For the tracker to be installed on the device which can provide power for Long-term using
O Easy for installation
Functions:
O Web based online tracking
O View map on cellphone, PDA, view target current location on map on the cell Phone and PDA with the maps link in the message from tracker
O Get location in real street/address name, send address + password to tracker. The tracker will reply detailed street address, like No. 113, Nantou guankou 2ND rd, Nanshan, Shenzhen, China
O If your target enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation
O Remote engine-stop and resume
O Tracking function by timing and frequency
O Authorized number added and deleted function
O Support hidden alarm and monitor function
O Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district
O The unit will send the message to the authorized numbers when it breach the district.
O Door alarm
O ACC alarm
O Movement alert: You can set up barriers when the vehicle is stopped.
Application
1. Vehicle for rental or manage of outside equipment, etc.
2. Protect the elder, kid, employee and pet, etc.
3. Protect the businessmen.
4. Manage the outworker.
5. Covert Tracking.
PLEASE NOTE:
Secure Home Direct does not provide software or IT support for the real-time GPS monitoring setup. To use the real-time tracking function you will have to open a communication port (of your choice) on your computer. If behind a router you will need to add your IP address and open the port on your router.
Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.

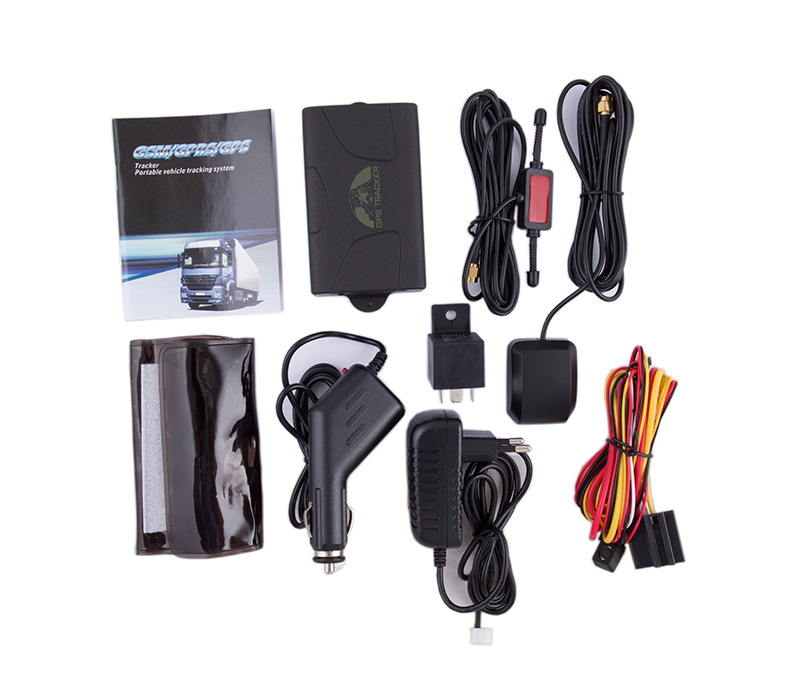

Package Contents:
GPS Car Tracker
SOS button and wiring
GPS Antenna
GSM Antenna
Relay
Wiring
Software CD
English Manual
Protective sleeve
Wall power adapter 100-240V
Car cigarette power adapter
| Content | Specs. |
| Dim. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS chip | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | Cold status 45s
Warm status 35s
Hot status 1s |
| Car charger | 12- 24V input
5V output |
| Wall charger | 110--220V input
5V output |
| Battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Standby | 80hours |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +55° C |
| Humidity | 5%--95% non-condensing |
Applications:
Used widely for vehicle and other moving objects tracking, real-time vehicle tracking solutions for business
1) Live fleet tracking systems: engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data, providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system
2) Boost employee and vehicle efficiency: by utilizing a fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance.
Web online tracking www.gpstrackerxy.com
Mobile APP "Tracker Home"
Delivery:
1. Sample and small order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3 to 5 work days
after the receipt of payment.
Warranty:
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
