| Prod Model: |
LP-16-C02PE-02-001; LP-16-J02SX-04-001 |
Product Description

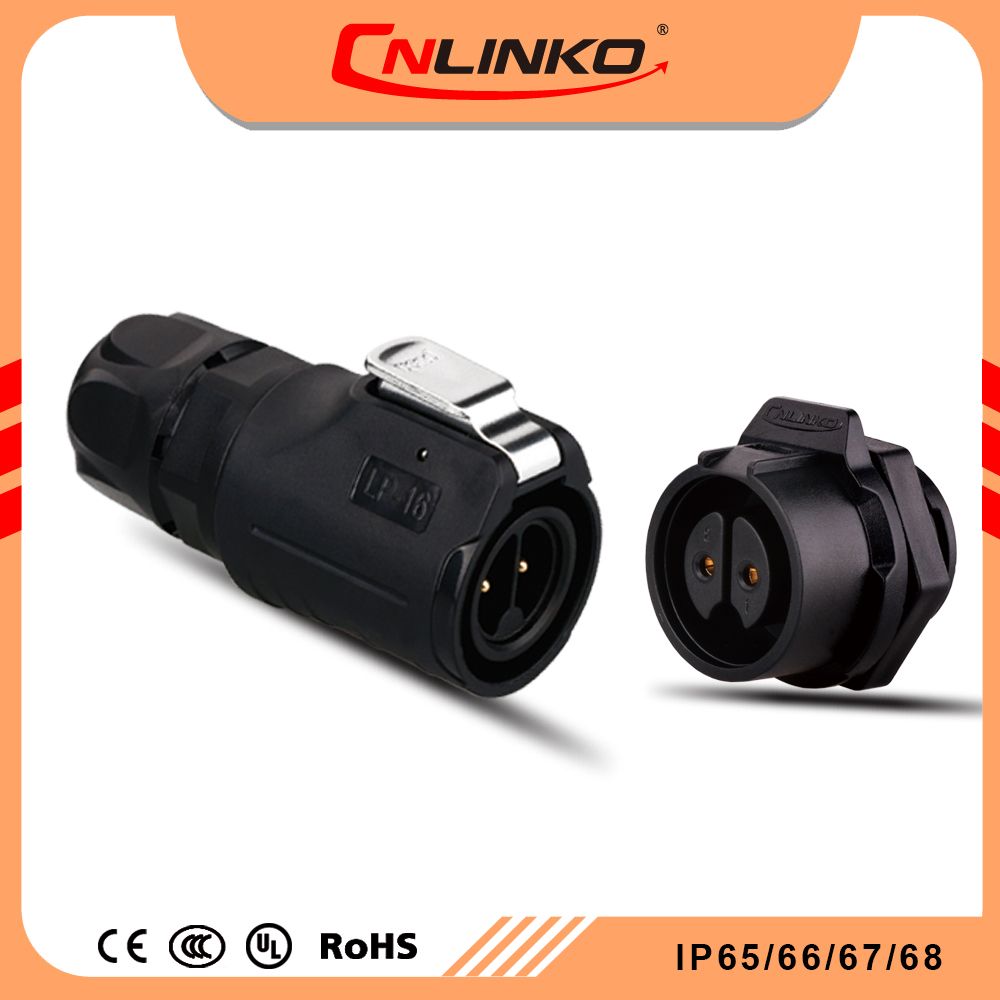

Waterproof Jacket Right Angle Connector IP65 / IP67 2Pin Power Circular Quick Release Wire Connectors for Outdoor Lighting LP-16 type connector are high quality and high precious with highest quality performance under harsh situation,be widely used in lighting system,Audio,Medical equipment,industrial control and testing measurement equipment and so on.
Features:
multi-pins(2-9PINS) for varies industrial demands
Zinc alloy material against high frequency noise and electromagnetic interference
gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
PBT shell performance stable, compression, anti-explosion and anti-deformation
rated current: 12A rms

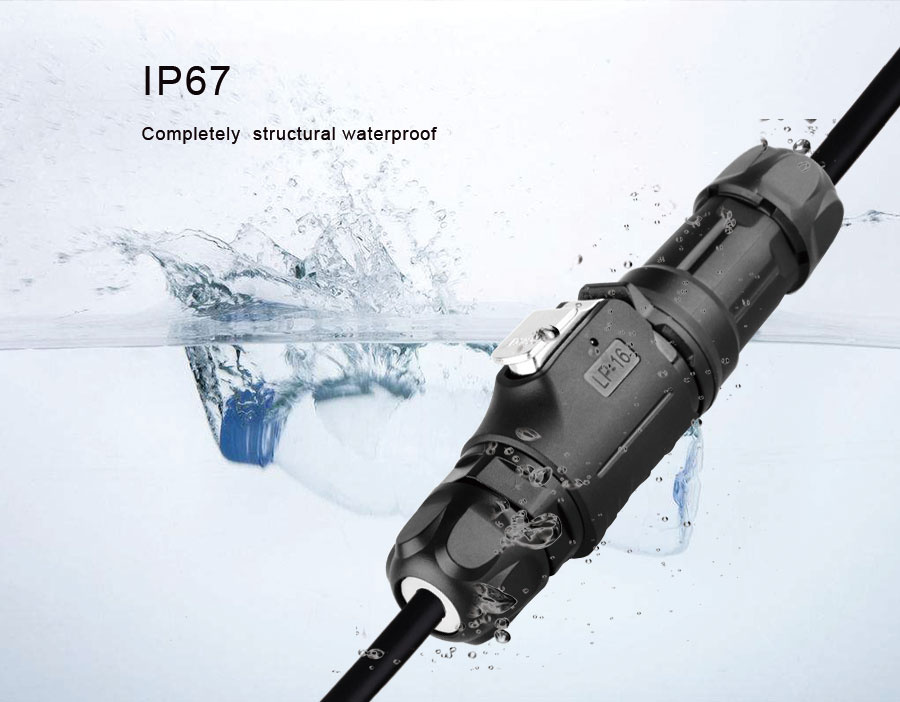

protection level:IP65/IP67
| Specifications |
| Connecting mode | Latching Lock connect |
| Protection level | IP67 |
| Cable specification | 1.0mm2 ~ 1.5mm2 /14~12AWG |
| Diameter range | Φ3mm ~Φ7mm |
| Contact diameter×Qty | Φ1.5×4 |
| Current rating(A) | 10A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | 2500V |
| Contact resistance | <2.5mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material |
| Shell&insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
FAQQ1:What are connectors?
A1:Connectors are connected to the electrical and mechanical components of electrical circuits.They are widely used in various electrical circuits, plays the role of connecting or disconnecting the circuit.
Q2:What classification do connectors have?
A2: In accordance with the frequency points, a high-frequency connector and the low frequency connectors; in accordance with the shape divided circular connectors, rectangular connectors; in accordance with the zoning, there are connectors for printed boards, cabinets, socket connector, connectors for audio equipment, power connector, connectors, etc. for special purposes.
Q3:What is rated voltage?
A3:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q4:What is rated Current?
A4: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
Q5:Why choose cnlinko?
A5: Our product have passed UL,CUL,CCC,CE and ROHS certification. Use PBT material that import from abroad with stable,compression, anti-explosion and anti-deformation; Use Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q6:Is there cheap shipping cost to import to our country?
A6: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you
| Main characteristics |
| Sealed against dust and fluid (IP65/IP67) |
| Vibration resistance,impact resistance,stretching resistance |

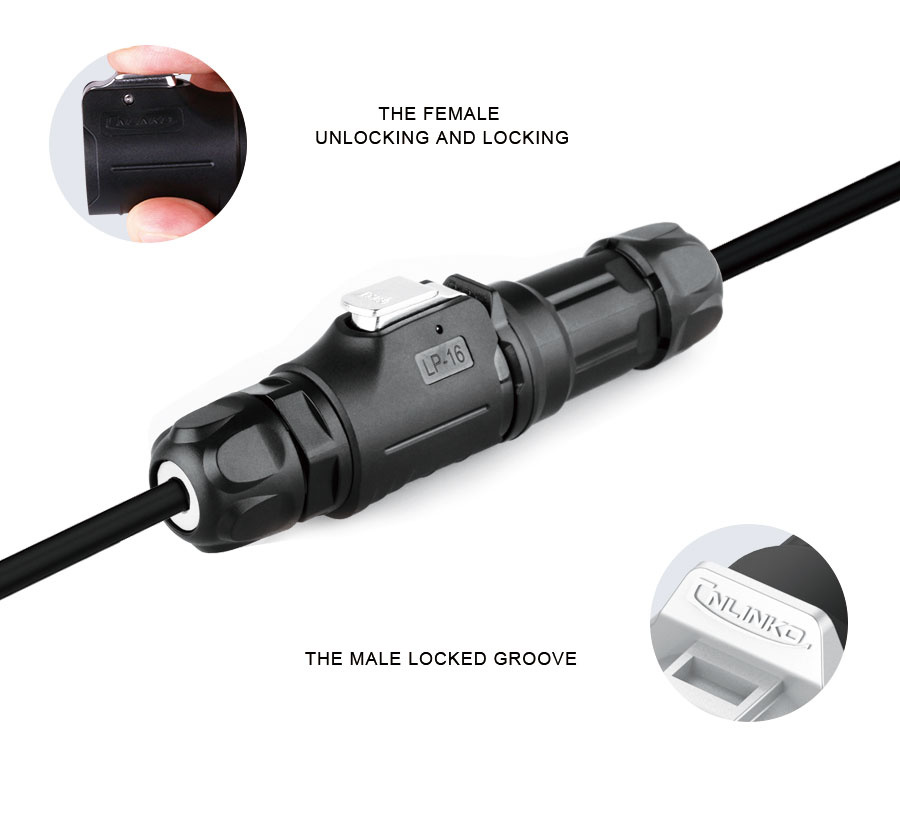

| 1/4 bayonet connect; socket with cover |
| Application industries |
| Stage equipment - The smart grid |
| Medical equipment - Server |
| Solar energy equipment - Ship equipment |
| Electric power equipment - Vehicle equipment |
| Communications equipment - Heavy machinery |
Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.
We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.
Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.
Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.
We will always keep skills fresh and up-to data with international.
Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.
Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
