| Prod Model: |
LPS-24E300C |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
300W |
| Input Voltage: |
170-250V |
| Output Voltage: |
12V/24V |
| Efficiency: |
90% |
| IP Rating: |
IP 67 |
| Certificates/Standards: |
Ce RoHS TUV |
| Weight(Kg): |
1.7 |
| Packing Information: |
10 PCS/ Carton, G.W 17 Kg |
| Power Factor: |
Low PF~0.65 |
| Dimensions(L*W*H): |
307*85*36mm |
| Usage: |
Construction |
| Output Type: |
Quad |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
170-250V |
| Brand: |
Neonpro |
Product Description

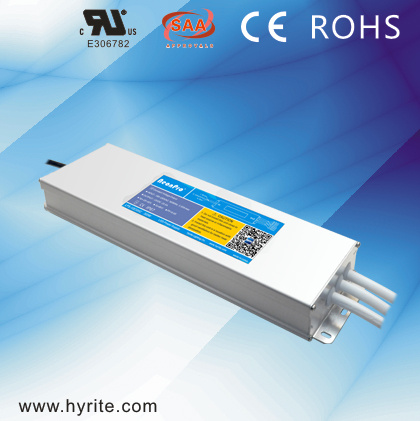

24V 300W IP67 Slim Efficiency90% LED Power Supply for illuminated Signs Brief Introduction*Brand Name:Neonpro*External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Slim body, special design for application with narrow space, such as ceiling LED Strip back light, LED light box...(Size:307*35*36mm)
*Fully sealed&waterproof, IP67
*Constant Voltage output ; 100% burn-in test*2 years warranty
*Efficiency>0.9, CE TUVTrade Terms*MOQ>1
*Welcome OEM/ODM Service
*Port:Guangzhou
*Available trade terms:FOB, CIF ,CFR, EXW.
*Payment Method:L/C,T/T,Western Union etc.*Delivery Time: 1-2 days for Sample Order
10-15 days for Normal Order Technical Specs| Model no. | LPS-24E300C |
|---|
| Input voltage | 170-250 VAC 50/60 Hz |
|---|
| Max. power | 300 W max |
|---|
| Output type | Constant voltage |
|---|
| Dimming | No |
|---|
| Built-in active PFC | No |
|---|
| Power factor | Low PF~0.65 |
|---|
| Efficiency | 90% |
|---|
| AC inrush current(max.) | Cold start, 40A@230VAC |
|---|
| Output voltage | 24VDC ± 5% |
|---|
| Output current | 12.5A max |
|---|
| Overload protection | 105% hiccup mode, auto-recovery |
|---|
| Over voltage protection | 120% rated output voltage |
|---|
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
|---|
| Operating temperature | -25~40 ºC |
|---|
| Installation | Outdoor waterproof |
|---|
| IP rating | IP 67 |
|---|
| Cooling | Free air convection |
|---|
| Certificates/standards | CE ROHS TUV |
|---|

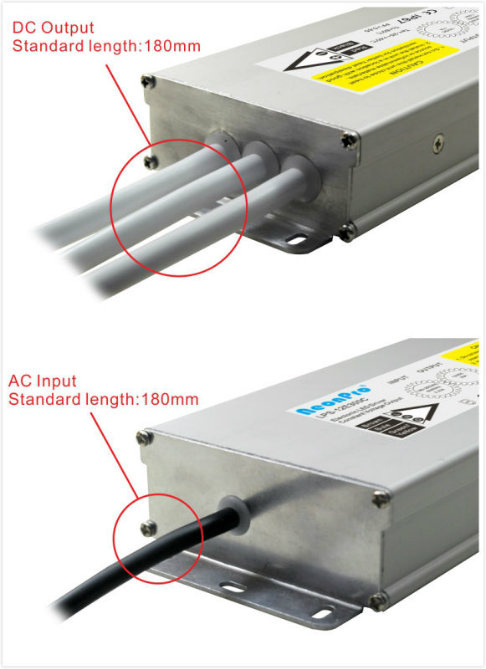

| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm) |
|---|

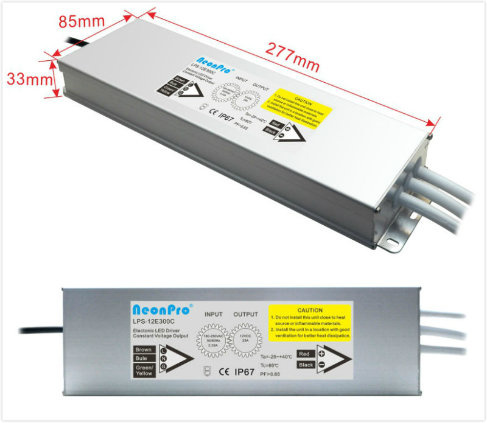

| Dimensions(L*W*H) | 307*85*35mm |
|---|
| Weight(kg) | 1.700 |
|---|
| Packing information | 10 Pcs/ Carton, G.W 17 KG |
|---|
