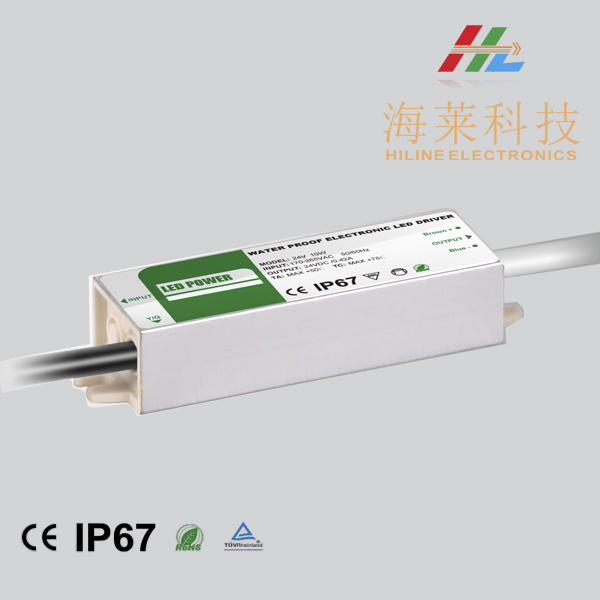

Waterproof LED Power Supply 10W

Name: Waterproof LED Power Supply 10W
Brand: all-electronics-online.com
SKU: 803491535
Availability: InStock
Rating: 4.5 (33 reviews)

Price:	US $ 3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLD-12V/24V-10W
Size:	1133020mm
Color:	White or Black
Material:	Aluminum
Usage:	Vehicle
Output Type:	Single
Circuit Structure:	PWM Controlled
Driving Method:	Constant Voltage
Power Supply Voltage:	AC90-130V/AC170V-250V
Brand:	Hl

Product Description

10W LED IP67 Waterproof Driver Features:

1. Constant voltage design;
2. Universal AC input;
3. CE & RoHS approval;
4. 100% burn-in test;
5. Fully encapsulated with IP67 level;
6. protections: short circuit/over load/over current;
7. cooling by free air convection;
8. Suitable for LED strip and moving sign applications etc.

10W LED IP67 Waterproof Driver Specifications:

MODEL		HLD -12V-10W	HLD-24V-10W
OUTPUT	Rated DC voltage	12V	24V
	Rated current	0.83A	0.42A
	Current range	0~0.83A	0~0.42A
	Rated Power	10W
	Voltage tolerance	12±0.5V	24±0.5V
	Ripple & Noise	200mVp-p
	Load regulation	±2%
	Setup, Rise time	50ms/230VAC
	Hold up time	20ms/230VAC
INPUT	Voltage range	170~260VAC;
	Frequency range	47~63Hz
	Efficiency (Typ.)	>70%	>70%
	Leakage current	0.25mA/240VAC
PROTECTION	Over Current	110%~150%
		Protection type: Hiccup mode
	Short circuit	Short circuit protection
ENVIRONMENT	Working TEMP.	-25ºC~50ºC
	Storage TEMP.	-40ºC~80ºC
	Working Humidity	20~90% RH non condensing, refer to IP67
	Vibration	10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
	TEMP. coefficient	±0.03%/ºC(0~50ºC)
SAFETY & EMC	Safety Standards	IP67 approved; Design refer to LVD EN61347-2-13:2005,EN61347-1:2008
	Withstand Voltage	I/P-O/P:3KVAC, I/P-COVER: 3KVAC , O/P-COVER:500VAC
	Isolation Resistance	I/P-O/P:>100M Ohms/500VDC/25ºC/70% RH
	EMC	EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:20
OTHERS	MTBF	08,EN61547:200950KHours (25ºC)
	Dimension	1073020mm(LWH)
	Weight	0.1Kg,168pcs/17.2Kg/0.023CBM

Zhuhai Hi-Line Electronics is located in the beautiful coastal city-Zhuhai, China. It is a high-tech R&D enterprise dedicated to developing, producing various innovative LED RGB lighting products, LED power supply and intelligent controllers.

Our main products include LED RGB digital boarder tube, LED digital video tube, LED strip light, LED digital DMX tube, LED power supply and RGB intelligent controllers for LED lights. These products are widely applied in municipal projects, casinos, stage lighting, home decoration etc which have been receiving good reputation among many parts of the foreign markets, such as American and European areas, Middle East and Southeast Asia etc.

We have been in LED field since 2007; We continuously focus on our tenet "Quality, Honest, Innovative and Efficient". With experienced R&D team and advanced equipments, we can offer our customers with the most-innovative, cost-effective and advanced decorative LED lighting products used for events, parties, home decorations, weddings, exhibitions, business, indoor and outdoor applications. There is no doubt that your satisfaction is our priority concert.

We are warmly welcome you to establish win-win commercial partnership with us to exchange valuable information and explore splendid future in the field of LED lighting.
