Waterproof Linear Micro Actuators, Mini Linear Actuator 12V/24V DC Motor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
4/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
HB-DJ806 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage(V): |
12V/24V/36V/48V |
| Output Power: |
11W |
| Free Load Speed: |
3mm/S ~100mm/S |
| Load: |
1200n |
| Stroke: |
Customized Stroke Available |
| Screw Type: |
Acme |
| Certification: |
CE/EMC+LVD |
| Warranty: |
One Year |
| Protect Feature: |
Waterproof |
| Material: |
Aluminum and Plastic |
| Structure And Working Principle: |
Brush |
| Operating Speed: |
High Speed |
| Application: |
Boat, Marine |
Product Description

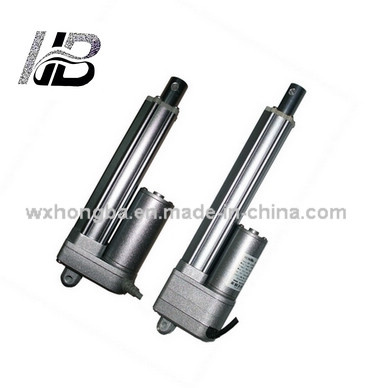

HB-DJ806 linear actuator
Input: 12V/24V/36V/48VDC
Load Capacity: 1200N
Speed: 3~100mm/s
Stroke: 20~305mm(option)
Min installation Dimension: SL=105mm+S
Limited Switches: inner
Operation temperature: -40°C to +65°C
Protection class: IP 65
Type of duty: 25% S4-16min
Control mode: wired,wireless
Covering color: Silvery white
Application : Furniture, Industry
Feature
1.100mm/s high speed
2.Small apprance
3.Waterproof, outside use
4.Wide range of application
Mini linear actuator dc motor
1. Small motor linear actuator with ACME screws, built-in Micro switch and an internal diode,
2. Can automatically stop and enables the change of direction by simply reversing the applied voltage polarity.
3. Stroke length can be customized. Switches are not made to be adjustable.
4. Inversely proportional to the speed and power. Possion feedback is possible.
Size formula
Installation size = stroke S +105 (± 3)
{installation of the potentiometer mounting dimensions = the stroke S +135(± 3)}
Installation Dimension Calculating Description:
Standard HB-DJ806:
For example: stroke 150mm,
Installation size = 150mm +105 mm = 255mm (± 3)
Extending maximum size 360MM (± 3)
Application
Widely used in industrial engineering, agricultural machinery, construction, industrial machinery, ships, cars,
cleaning cars, electric cars, modified cars, construction, doors, windows and other industries.

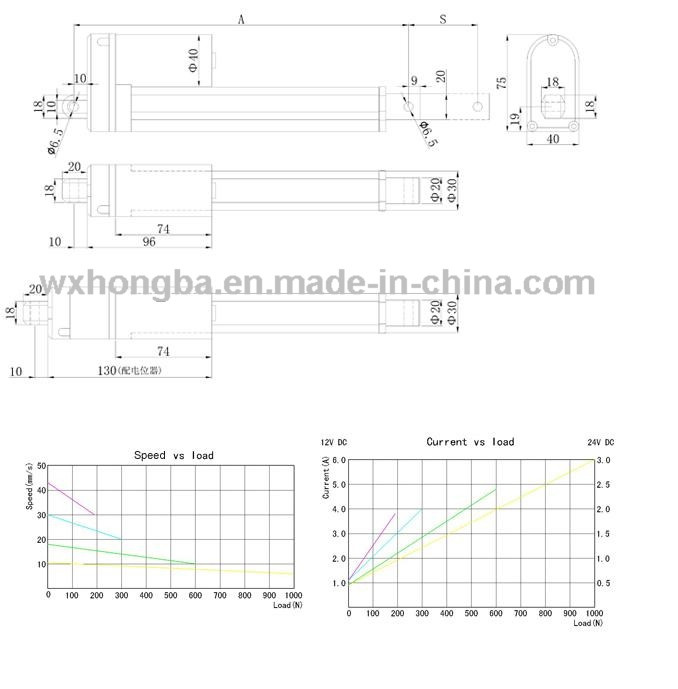

Installation Dimension
Our workshop
Shipment
Notice for the ordering
We need more details to make sure your required models:
1. Working Voltage
2. Push Force
3. Speeds
4. Storke
5. Installation dimension
6. Protection Rating PriceWithin 250mm (10inch) stroke,the Exw price of sample is the same price,my friend.More discount for you,if you place large order(more than 100pcs).As a manufacturer,our price is best.
Main model linear actuators feature is following:
HB-DJ801-------Low noise linear actautor,used in medical,furniture
HB-DJ802-------Used in massage chair,furniture,standand stroke is 330mm,350mm
HB-DJ805--------Heavy duty linear actuator,apply to big machine,solar tracker,max load 12000N
HB-DJ806--------Mini waterproof electric linear actuator,mainly used in car brake system,small solar tracker
HB-DJ807--------24VDC linear actuator,mainly used in furniture.
HB-DJ808A-------Heavy duty waterproof linear actuator withour inner limit switch,it has clutch,used in farm machine.
HB-DJ808---------Heavy duty linear actuator with limit switch and with potentiometer,it has overload protection.
HB-DJ8091-------lifting column.can used in electric table,desk,ect
HB-DJ818---------24VDC Solar tracker electric linear actuator,max load 15000N(1500KG),speed 3.3mm/s
If you have any interest,please sent to me enquiry,thanks Note
We are manufacturer of electric linear actuator over 10 years, and we have R& D team.
Welcome to visit our company,my friend.The best linear actuator is waiting for you!
|
Actuator Stroke (mm) |
50 |
100 |
150 |
200 |
250 |
300 |
|
Basic Installation Stroke(mm) |
155 |
205 |
255 |
305 |
355 |
405 |
|
With potentiometer installation |
185 |
235 |
285 |
335 |
385 |
435 |
|
P roduct mode |
M ax load(N) |
Free load of speed(mm/s) |
Power |
|
HB-DJ806 |
1 000-1200 |
4~5 |
11 W |
|
75 0 |
8 |
|
430 |
12 |
|
600 |
1 0 |
|
450 |
1 6 |
|
200 |
42 |
|
100 |
60 |
Wuxi Hongba Mechanical Electrical Equipment Co., Ltd. is a joint-stock enterprise which specialized in the development, production, and sales of linear actuators. The company have been approved the QMS ISO9001: 2008 and Cert. CE/EMC + LVD and won the trust of "Quality Trustworthy Organization of JiangSu Province" and has independent import and export operation droit.
"HB" product is in great demand in China and International and widely used in the field of construction machinery, solar tracking, automation machinery, farm equipment and Intelligent furniture. The model such as HB-DJ808, HB-DJ806, HB-DJ828 in the industrial equipment, solar tracking and other fields share increased year by year.
We take"quality first, technology innovation" as the goal, making our products gradually to be the domestic first-class automatic transmission. HB have been knowing very well and approved by so many of our clients.
We are looking forward to establishing long-term cooperation and development and win-win business relationship with all the customers home and abroad.
