| Prod Model: |
PTD, PTDD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cold-Rolled Sheet Steel,Galvanized |
| Color: |
Ral 7032/Ral 7035/Customize |
| Surface Finish: |
Cold-Rolled Sheet Steel |
| Thickness: |
1.5mm |
| Mounting Plate: |
2.0mm Galvanized Mounting Plate |
| Lock: |
Plastic Lock/Metal Lock |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Application Range: |
Electrical Distribution |
| Shell Protection Grade: |
IP65 |
| Brand: |
Porta |
Product Description

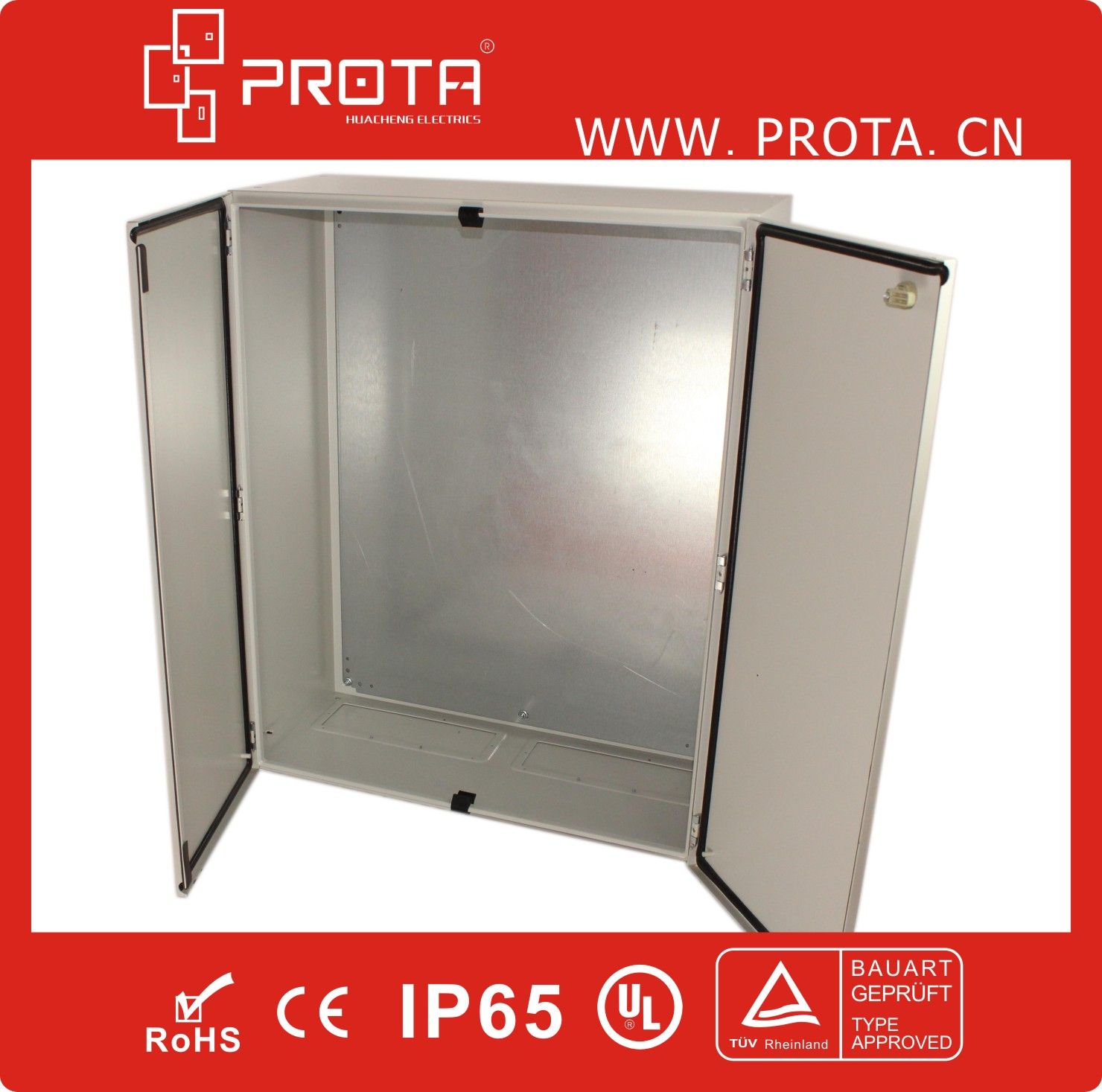

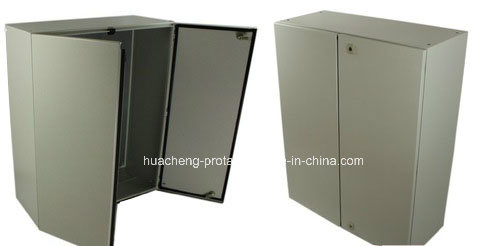

Waterproof Metal Electrical Enclosure Distribution box1.Standard configuration: Galvanized/orange painted mounting plate, lock system, foaming gasket, gland plates and fixing accessories.
2. Material and thickness: Cold-rolled plank
Door: 1.2mm & 1.5mmCabinet: 1.2mm & 1.5mm
Mounting Plate: 1.5mm & 2.0mm
When the cabinet is higher than 800mm, the cabinet and the door is 1.55mm in height, the bottom plank is 2.0mm in length
3. Surface treatment: Thermosetting powder coating, textured finish
4. Color: RAL 7032 RAL 7035 or other colors on your request
5. Protection: IP66
Craftsmanship feature
1. There are strengthening strips with pilot holes is welded to both sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)
2. The PU foam sealing gasket inside the door.
3. The door can be opened 130° By the plugging hinges
4. The slots design of the enclosure prevents dust and water en
tering into the enclosures plus the good coordination with foam sealing gasket, which supply a good protection of the enclosure.
5. There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting brackets.
6. There's a sealing gasket at the bottom gland plate, ensures the IP protection level
Selection Table:
| Model No. | H
mm | W
mm | D
mm | Model No. | H
mm | W
mm | D
mm |
| W/T Standard Locks | W/T 3-point Locking System |
| PTD6 820 | 600 | 800 | 200 | PTDD6 820 | 600 | 800 | 200 |
| PTD8 820 | 800 | 800 | 200 | PTDD8 820 | 800 | 800 | 200 |
| PTD6 1020 | 600 | 1000 | 200 | PTDD6 1020 | 600 | 1000 | 200 |
| PTD8 1020 | 800 | 1000 | 200 | PTDD8 1020 | 800 | 1000 | 200 |
| PTD6 1220 | 600 | 1200 | 200 | PTDD6 1220 | 600 | 1200 | 200 |
| PTD8 1220 | 800 | 1200 | 200 | PTDD8 1220 | 800 | 1200 | 200 |
| PTD6 1420 | 600 | 1400 | 200 | PTDD6 1420 | 600 | 1400 | 200 |
| PTD8 1420 | 800 | 1400 | 200 | PTDD8 1420 | 800 | 1400 | 200 |
| PTD10 1420 | 1000 | 1400 | 200 | PTDD10 1420 | 1000 | 1400 | 200 |
| PTD12 1420 | 1200 | 1400 | 200 | PTDD12 1420 | 1200 | 1400 | 200 |
| PTD14 1420 | 1400 | 1400 | 200 | PTDD14 1420 | 1400 | 1400 | 200 |
| PTD6 1025 | 600 | 1000 | 250 | PTDD6 1025 | 600 | 1000 | 250 |
| PTD8 1025 | 800 | 1000 | 250 | PTDD8 1025 | 800 | 1000 | 250 |
| PTD6 1225 | 600 | 1200 | 250 | PTDD6 1225 | 600 | 1200 | 250 |
| PTD8 1225 | 800 | 1200 | 250 | PTDD8 1225 | 800 | 1200 | 250 |
| PTD6 1425 | 600 | 1400 | 250 | PTDD6 1425 | 600 | 1400 | 250 |
| PTD8 1425 | 800 | 1400 | 250 | PTDD8 1425 | 800 | 1400 | 250 |
| PTD10 1425 | 1000 | 1400 | 250 | PTDD10 1425 | 1000 | 1400 | 250 |
| PTD12 1425 | 1200 | 1400 | 250 | PTDD12 1425 | 1200 | 1400 | 250 |
| PTD14 1425 | 1400 | 1400 | 250 | PTDD14 1425 | 1400 | 1400 | 250 |
| PTD6 1030 | 600 | 1000 | 300 | PTDD6 1030 | 600 | 1000 | 300 |
| PTD8 1030 | 800 | 1000 | 300 | PTDD8 1030 | 800 | 1000 | 300 |
| PTD10 1030 | 1000 | 1000 | 300 | PTDD10 1030 | 1000 | 1000 | 300 |
| PTD10 1230 | 1000 | 1200 | 300 | PTDD10 1230 | 1000 | 1200 | 300 |
| PTD6 1230 | 600 | 1200 | 300 | PTDD6 1230 | 600 | 1200 | 300 |
| PTD8 1230 | 800 | 1200 | 300 | PTDD8 1230 | 800 | 1200 | 300 |
| PTD12 1230 | 1200 | 1200 | 300 | PTDD12 1230 | 1200 | 1200 | 300 |
| PTD6 1430 | 600 | 1400 | 300 | PTDD6 1430 | 600 | 1400 | 300 |
| PTD8 1430 | 800 | 1400 | 300 | PTDD8 1430 | 800 | 1400 | 300 |
| PTD10 1430 | 1000 | 1400 | 300 | PTDD10 1430 | 1000 | 1400 | 300 |
| PTD12 1430 | 1200 | 1400 | 300 | PTDD12 1430 | 1200 | 1400 | 300 |
| PTD14 1030 | 1400 | 1000 | 300 | PTDD14 1030 | 1400 | 1000 | 300 |
| PTD14 1230 | 1400 | 1200 | 300 | PTDD14 1230 | 1400 | 1200 | 300 |
| PTD14 1430 | 1400 | 1400 | 300 | PTDD14 1430 | 1400 | 1400 | 300 |
| PTD8 1040 | 800 | 1000 | 400 | PTDD8 1040 | 800 | 1000 | 400 |
| PTD10 1040 | 1000 | 1000 | 400 | PTDD10 1040 | 1000 | 1000 | 400 |
| PTD10 1240 | 1000 | 1200 | 400 | PTDD10 1240 | 1000 | 1200 | 400 |
| PTD6 1240 | 600 | 1200 | 400 | PTDD6 1240 | 600 | 1200 | 400 |
| PTD8 1240 | 800 | 1200 | 400 | PTDD8 1240 | 800 | 1200 | 400 |
| PTD12 1240 | 1200 | 1200 | 400 | PTDD12 1240 | 1200 | 1200 | 400 |
| PTD6 1440 | 600 | 1400 | 400 | PTDD6 1440 | 600 | 1400 | 400 |
| PTD8 1440 | 800 | 1400 | 400 | PTDD8 1440 | 800 | 1400 | 400 |
| PTD10 1440 | 1000 | 1400 | 400 | PTDD10 1440 | 1000 | 1400 | 400 |
| PTD12 1440 | 1200 | 1400 | 400 | PTDD12 1440 | 1200 | 1400 | 400 |
| PTD14 1040 | 1400 | 1000 | 400 | PTDD14 1040 | 1400 | 1000 | 400 |
| PTD14 1240 | 1400 | 1200 | 400 | PTDD14 1240 | 1400 | 1200 | 400 |
| PTD14 1440 | 1400 | 1400 | 400 | PTDD14 1440 | 1400 | 1400 | 400 |
| PTD16 1040 | 1600 | 1000 | 400 | PTDD16 1040 | 1600 | 1000 | 400 |
| PTD16 1240 | 1600 | 1200 | 400 | PTDD16 1240 | 1600 | 1200 | 400 |
| PTD16 1440 | 1600 | 1400 | 400 | PTDD16 1440 | 1600 | 1400 | 400 |
