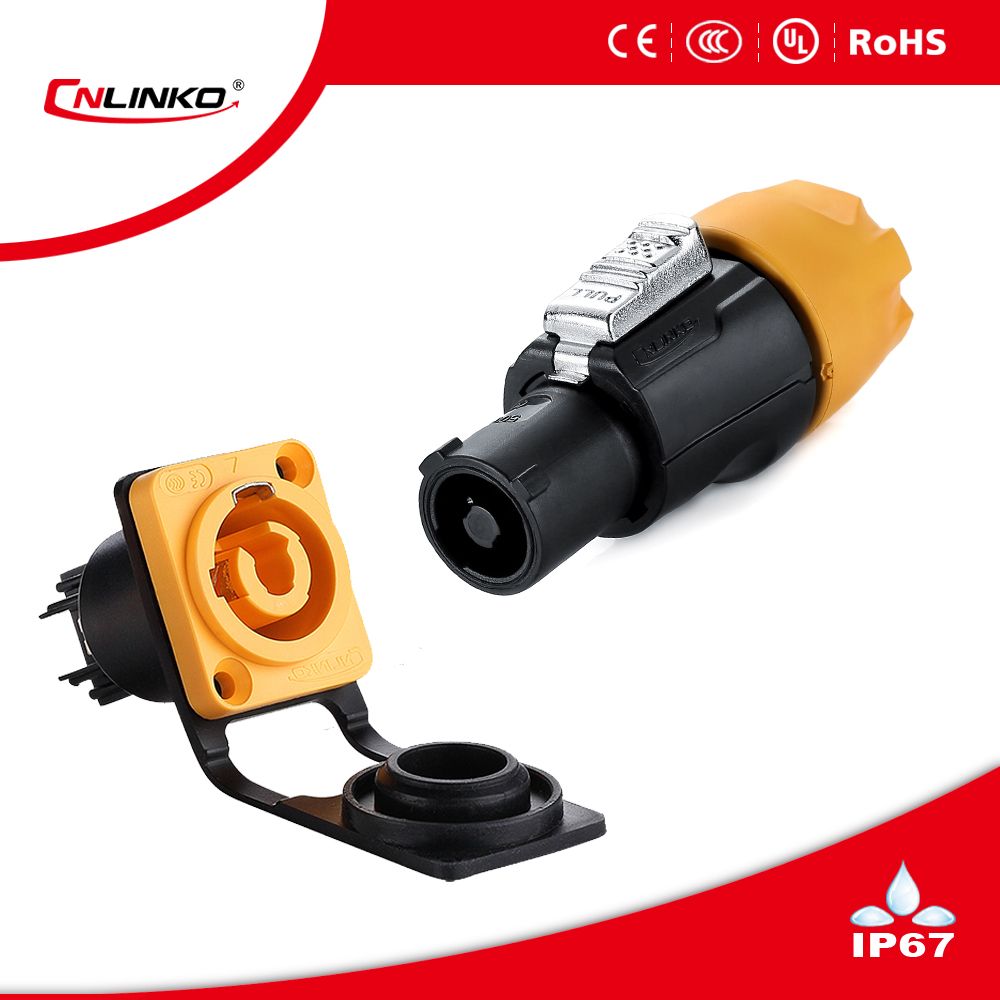

Waterproof Power Input 3pin Connector for Audio and Video

Name: Waterproof Power Input 3pin Connector for Audio and Video
Brand: all-electronics-online.com
SKU: 803351295
Availability: InStock
Rating: 4.4 (52 reviews)

Price:	US $ 5.56-5.83/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YF-24-C03PE-04-001&YF-24-J03SX-04-001
Certification:	Ce.CCC, ISO9001
Durability:	> 500 Cycles
Rated Current:	500V
Protection Level:	IP65
Connecting Mode:	Easy Locking Type
Assembly Wire:	Soldering
Application:	LED Screen
Gender:	Female and Male

Product Description

waterproof power input 3pin connector for Audio and Video

Product description

YF-24 power connector, because of its unique latching locking bolt, which is easy to operate and with a unique bule/gray separable power in and power out to distinguish input and output of device, also with a power converter to make conversion between the terminal and make it more flexibility. Widely be used Audio,Video and power equipment.

Data Sheet:

Cable Specification:	2.5 mm2 ~ 4 mm2 /14~12AWG
Diameter Range:	Φ8mm ~Φ12mm
Contact Diameter x number:	Φ2.0×3
Rated Current (A):	20A
Operating voltage(AC.V.rms):	500V
Contact resistance:	< 3 mΩ
Withstanding voltage(AC.V)1minute:	2500V
Insulation resistance:	>500mΩ
Protection Level:	IP44
Durability:	≥500 times plug in /out
Working Temperature:	-40°C~80°C
Connecting mode:	Easy Locking type
Assembly wire:	Soldering
Housing&Insulation parts materials:	High-performance engineering plastics
with zinc alloy hardware and copper pins with silica gel materials UL94-V0 Flammability

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
