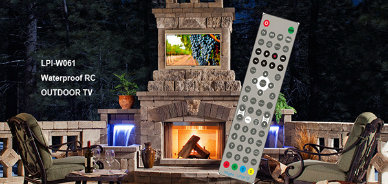

Waterproof Remote Control for Outdoor LCD TV STB DVD Audio (LPI-W061)

Waterproof Remote Control for Outdoor LCD TV STB DVD Audio (LPI-W061)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: LPI-W061
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof Standard: IP67
Application: Audio / Video Players
Signal Transmission: IR Remote Control
Type: Button
Certification: CE
Universal: Universal
Transmission Distance: <50m
Voltage: 3V
Material: Plastic
Battery Type: Button Battery

Product Description

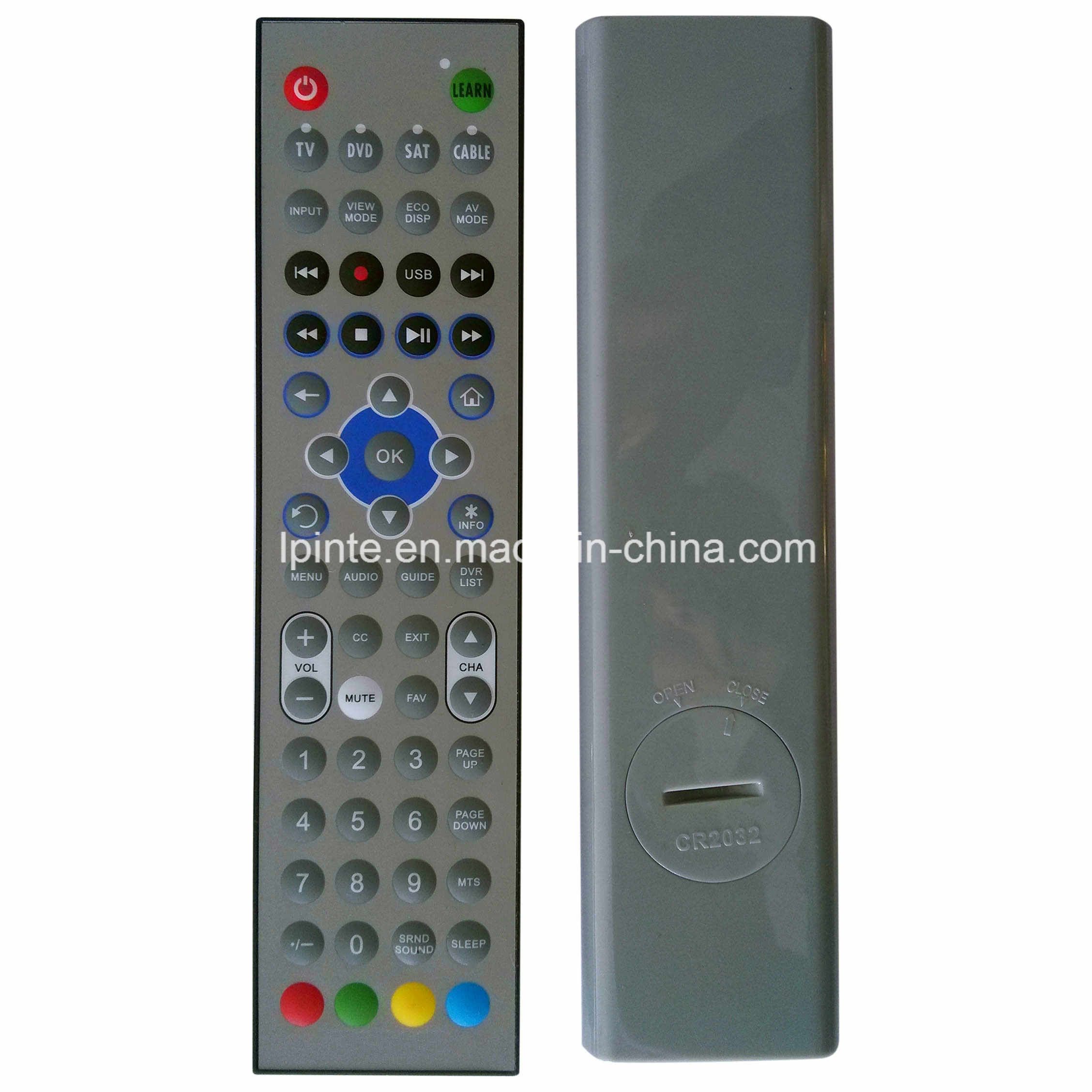

waterproof remote control
Model: LPI-W061
IP67 for bathroom, outdoor tv...

Number of keys 1-61
Dimensions 205x52x12mm
Case ABS Plastic
Buttons Type PET Membrane
Textplate YES
Weight (incl. batteries) 75g
Battery DC3.0V/CR2032

Function: Universal TV/DVD/CABLE SKY/SAT
Learning function
logo: customized
Application: outdoor tv, spa lcd tv, bathroom tv, waterproof tvs



1,Operation Force
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f.   Base on Center.
2,Key Stroke
Vertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm   Base on Center.
3,Straight Distance: Straight Distance above 8.0M
4,Receiver Direction:Up Down Left Right Direction 15? at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA  No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms


In consumer electronics, a remote control is a component of an electronic device such as a television setDVD player, or other home appliance, used to operate the device wirelessly from a short distance. Remote control is a convenience feature for the consumer, and can allow operation of devices that are out of convenient reach for direct operation of controls.

Commonly, remote controls are Consumer IR devices which send digitally-coded pulses of infrared radiation to control functions such as power, volume, tuning, temperature set point, fan speed, or other features. Remote controls for these devices are usually small wireless handheld objects with an array of buttons for adjusting various settings such as television channel, track number, and volume. For many devices, the remote control contains all the function controls while the controlled device itself has only a handful of essential primary controls.

Earlier remote controls in 1973 used ultrasonic tones. The remote control code, and thus the required remote control device, is usually specific to a product line, but there are universal remotes, which emulate the remote control made for most major brand devices





LP International Industries Co Ltd was established in 2004, located in Shenzhen China. Focus on wisdom, auto, high technology, energy saving business, OEM/DOM are welcome.

LP INTL has his own design, SMT and assembly facilities which achieved ISO9001, ISO14001 management system.

And take serious QC system to make sure products meet inquirements.

Only One Earth!

LP INTL takes care of the environment and take action on it. All of our material RoHS compliant.

Let's together make the life more better.
