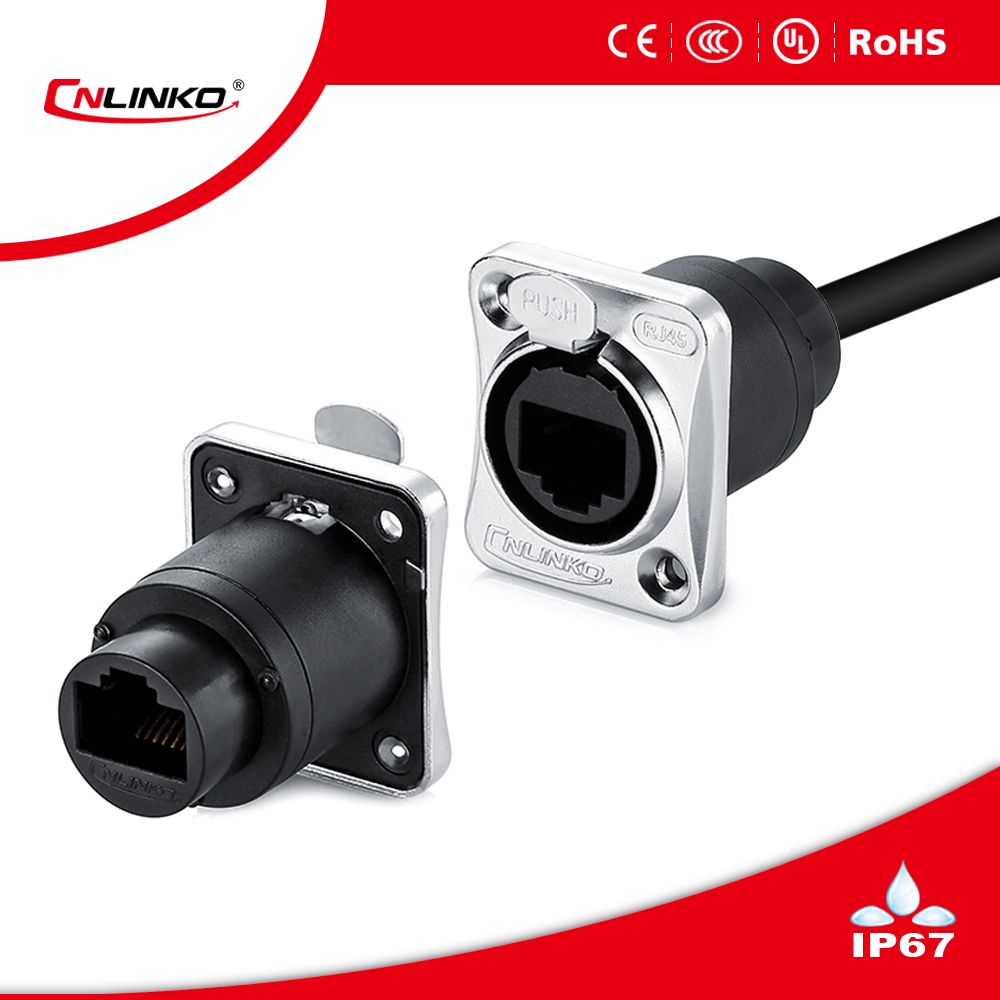

Waterproof RJ45 Cable Connector UTP Waterproof RJ45 Jack Module Connector

Name: Waterproof RJ45 Cable Connector UTP Waterproof RJ45 Jack Module Connector
Brand: all-electronics-online.com
SKU: 766385585
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 4.25/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YT-RJ45-CPE-01-001, YT-RJ45-JSX-04-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	1.5A
IP Level:	IP67
Contact Number:	8
Durability:	>500
Working Temperature:	-40~80
Flammability:	UL94-V0
Installation Mode:	Rotary Jack
Type:	SD Jack
Interface Type:	ZIF
Shape:	Rectangular
Production Process:	Injection
Customized:	Non-Customized
Working Frequency:	Low Frequency
Feature:	Fire/Flame Retardant

Product Description

Product Description
CNLINKO YT RJ45 can provide the solutions for signal transmission in harsh environments,Specially these RJ45 connectors can apply for industrial ethernet in audio,business,amusement,live stage action,DMX lighting,industrial and outdoor in network environments.
CNLINKO YT RJ45 series can provide cable jacket,assembly female plug,straight plug,cable coupler,protective style,it is the strongest protection for installation of the box with the protection level of IP68.

1.Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801,RJ45 connectorscompatible CAT5e,data transfer rate reach 10GBIT/S
2.Multi-style connecting modes:1/4 bayonet connect(YT01),quickly plug/unplug(YT09/04).
3.Applicable for harsh environments.
4.Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle.
5.Sheath of cable applicable for common RJ45 plugs.
6. Waterproof and non-waterproof design,protection level IP65/IP68 if waterproof and dustproof.
7.Electroplated shell against wind and rain.
8.Shielding system with high frequency noise immunity and electromagnetic interference protection.

YT-RJ45-CPE-01-001,YT-RJ45-JSX-01-001
Specifications:
Connecting mode:	Plug/unplug,
Protection level:	IP68
Cable specification:	0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	8
Current rating(A):	1.5A
Operating voltage(AC.V.rms):	1000V
Contact resistance:	<30mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	1/4 bayonet connect
Prevent the combustion level:	UL94-V0
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery
