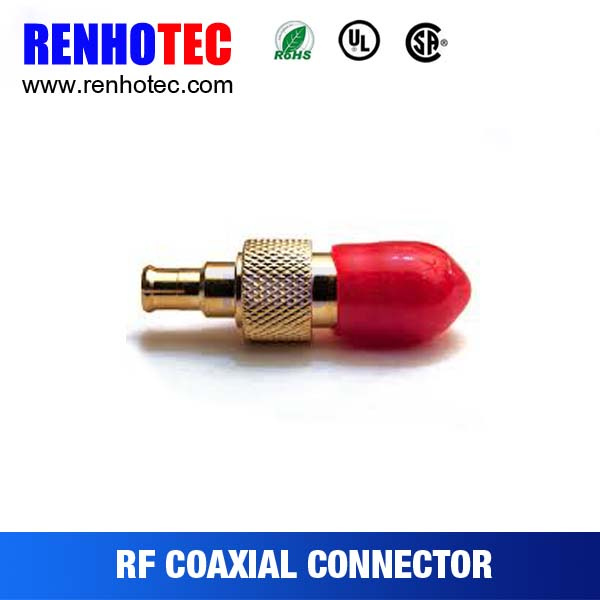

Waterproof SMA Male Straight PCB Mount with Nut

Name: Waterproof SMA Male Straight PCB Mount with Nut
Brand: all-electronics-online.com
SKU: 750576525
Availability: InStock
Rating: 4.4 (88 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Renhotec-612
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attachment Type:	Crimp Type
Lead Time:	7-10 Days
Business Type:	Manufacturer
Certification:	ISO,Reach .RoHS ,SGS
Port:	Shenzhen
Item Name:	Waterproof SMA Male Straight PCB Mount with Nut
Type:	Double Coaxial Connector
Coupling Mechanism:	Threaded Connection
Brand:	Dosin

Product Description

Waterproof SMA Male Straight PCB Mount With Nut

Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.

Major Technical Characteristics
Temperature Range	-5 degree to +155 degree (PE cable -40 degree to +85 degree )
Vibration	100m/S² (10 to 2000 Hz), 10G
Impendance	50ohm
Frenquency Range	DC-12.4GHz( Semi-Rigled Cable DC-18GNz)
Working Voltage	335V r.m.s at sea level
Workstandinging Voltage	1000V r.m.s at sea level
Center Contact Resistance	≤3Mohm
Outer Contact Resistance	≤2.5Mohm
Insulation Resistance	≥5000Mohm
Center conductor Retention Force	≤0.28N
Coupling Nut Retention Force	≥180N
Insertion Loss	≤0.15dB/6GHz
VoltaggeStanding Wave Ratio :
Straight	≤1.10+0.02f
Right Angle	≤1.20+0.03f
Dutability (Mating)	≤500(cycles)
Materials
Body	Brass
Contact	Brass
Insulator	PTFE
Suitable cable
RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US)

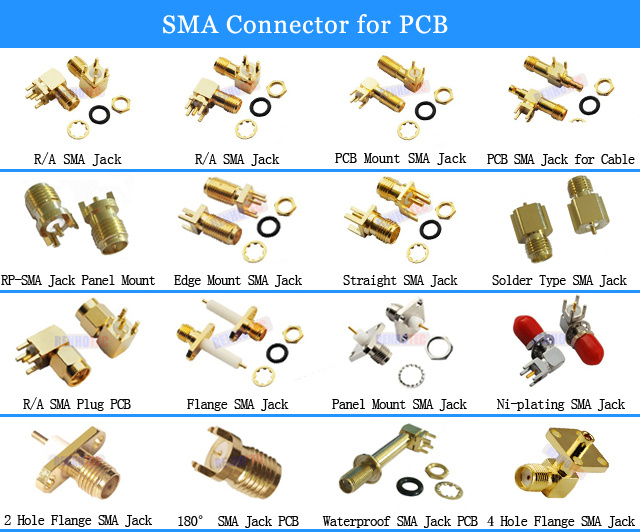

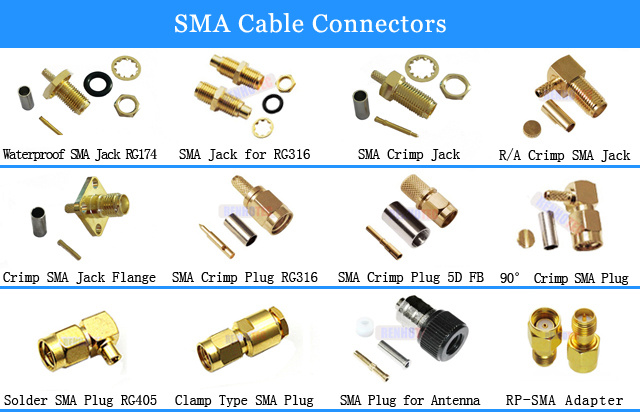

More SMA Connectors
