| Prod Model: |
MT05-EZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
10V-60VDC |
| GSM Frequencies: |
850/900/1800/1900MHz |
| Smart Power Save Mode: |
Yes |
| Odometer Function: |
Yes |
| Trace Optimization: |
Support |
| Track On: |
SMS, Web or APP |
| Waterproof: |
Yes |
| Acc On Detection: |
Yes |
| Type: |
GPS Receiver |
| Use: |
Automotive |
| Operating Principle: |
Small GPS Tracker |
| Port Number: |
Mini GPS Tracker |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Model: |
Mini Motorbike GPS Tracker |
| Chip: |
U-Blox7 Chipset |
Product Description
Water-proof Car GPS Trackers, Free-charge website tracking for Car, Taxi, Motorcycles and Electric Bikes

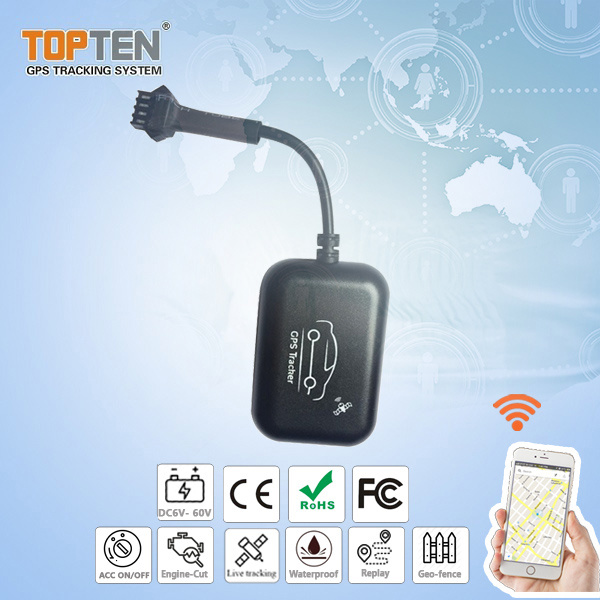

MT05 GPS Motorcycle/vehicle tracker is the cost-effective solution for security & real-time tracking.
It is specially used for motorcycle/car tracking because of its tiny size & low power consumption.
There are 2 ways for the users to track the vehicle:
(1) by any mobile phone via SMS commands;
(2) by tracking platform.
Functions:
1. Track on command or by time interval.
2. Arm/disarm by SMS or phone call.
3. Check the car's real physical address (such as city name, street name.) directly without server's support;
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map's URL;
6. Data logger to store 5520 waypoints.
7. Online tracking by website;
8. Odometer function
9. Over-speed alarm;
10. Movement alarm which can be used as an alarm;
11. Engine on alarm;
12. Vibration alarm;
13. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alarm immediately;
14. Cut off engine to stop the car safely by SMS/GPRS;
15. Monitor the voice(optional);
16. Wide working voltage range, from 6V-45VDC, suitable for motorcycle, car or some big truck with normal voltage.
17. Reliable design of framework with hardware watchdog.
18. Power save design.
Check the Vehicle's Status
SMS command: 111111CHK (or 111111chk)
This instruction is used to inquiry the vehicle's location & system's status.
The system will send back the SMS, includes the similar information, such as "Armed..."
Stop the Car by SMS
SMS command: 111111STP (or 111111stp)
This instruction is used to stop the motorcycle/car safely. If the car speed is higher than 30Km/h, it will not carry out until the speed is lower than 30Km/h.
Restore the Stopped Car to Normal Status
SMS command: 111111RES (or 111111res)
It is used to restore the car to normal status after being stopped.
Over-speed Alert
111111SPD:X x is the speed in KM/H , maximum value is 255KM/H
(For example: 111111SPD:120, if the car speed is over 120KM/H, it will send alert SMS to warn you).
111111SPD:0 to disable the over-speed alert. It is the default setting.
111111SPD: to check the setting of over-speed alert.
when the car speed is higher than the speed value, it will trigger the over-speed alarm.
Remark: this function is just for reference, because there might be some time delay or error in detecting the running car's real speed by GPS.
Parking list:
| main unit | 1pcs |
| 4pin wiring | 1pcs |
| Manual | 1pcs |
