Waterproof Switching Mode Power Supply with SAA

Name: Waterproof Switching Mode Power Supply with SAA
Brand: all-electronics-online.com
SKU: 748344675
Availability: InStock
Rating: 4.3 (41 reviews)

Price:	US $ 6.5-6.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E40B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	40W
Input Voltage:	170-250V
Output Voltage:	12V
Dimming:	No
Built-in Active Pfc:	No
Power Factor:	Low
Efficiency:	86%
IP Rating:	IP 66
Certificates/Standards:	Saso CE RoHS SAA
Dimensions(LWH):	1603826 Mm
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Saso SAA
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

12V 40W IP67 CV Waterproof LED Driver SAA

1.Product Feature:
*170-250 VAC, 12VDC, Constant Voltage type;
* Mature IP67 led power supply;
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*SASO SAA CE ROHS approval.

2.Technical Specification:

Model no.	LPS-12E40B
Input voltage	170-250 VAC 50/60 Hz
Max. power	40 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	86%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	3.4 A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 66
Cooling	Free air convection
Certificates/standards	SASO CE ROHS
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)

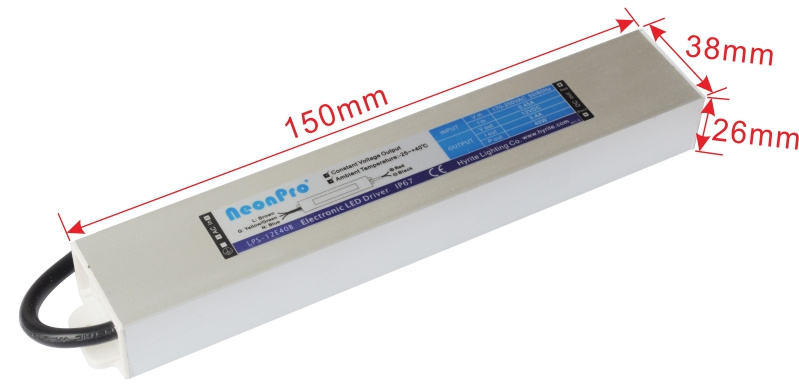

Dimensions(LWH)	1603826 mm
weight(kg)	0.41
Packing information	50 Pcs/ Carton, G.W 20.5 KG

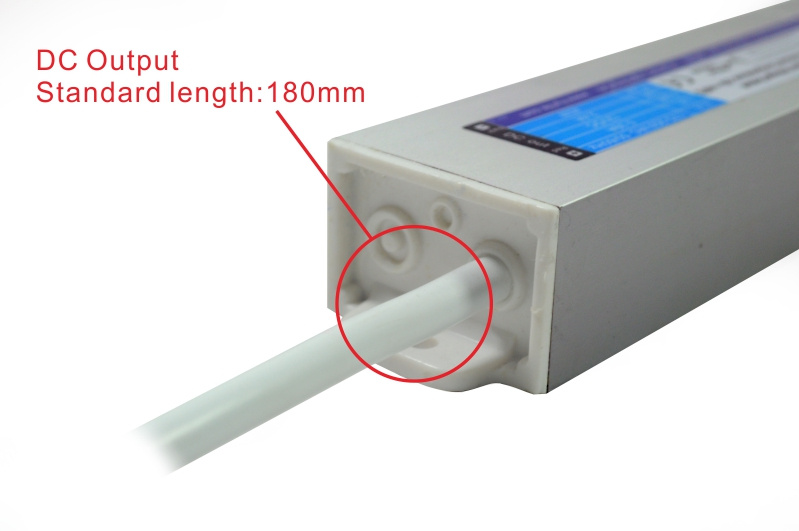

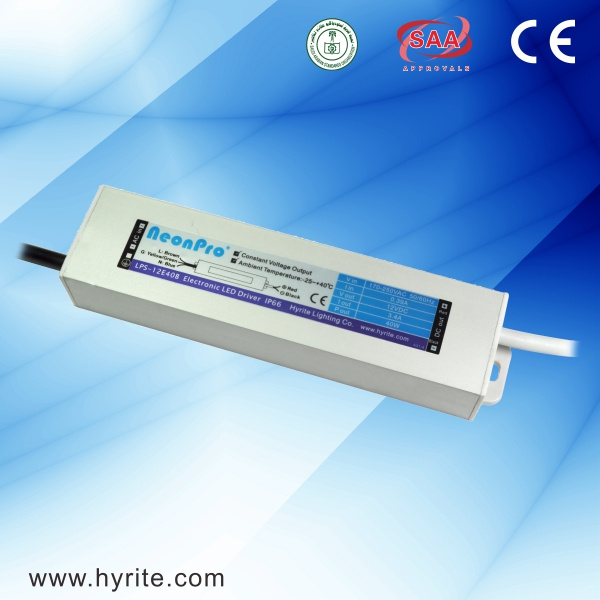

3.Detail pictures of LED power supply

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air
