Waterproof UV Resistant Cold Shrink Tube
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
VOLSUN 9104-9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage Rating: |
1kv or Less |
| Applications: |
Direct Bury or Submersible |
Product Description

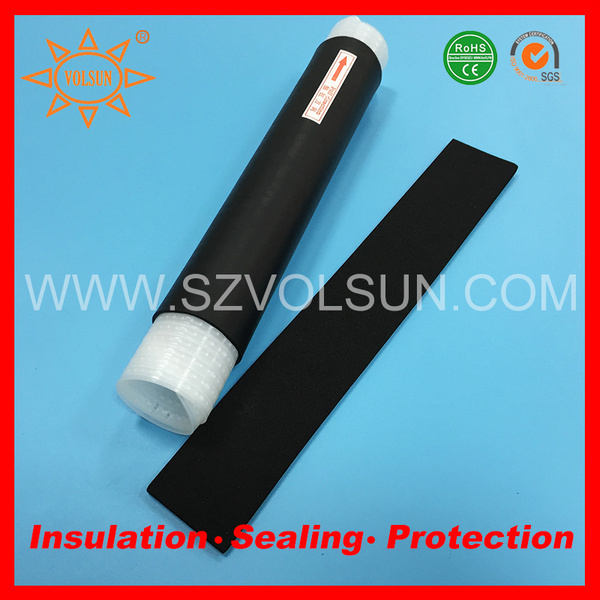

Cold Shrink EPDM Tubes
Connector Insulators RUBLS-EPDM Seriesl DescriptionVOSLUN RUBLS-EPDM a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables, copper and aluminium conductors. Unique Advantages Excellent weather resistance, ultraviolet aging resistance and higher embrittlement resistance than heat shrink tubing More resistant to slab and prick, abrasion, acid and alkali than silicone cold shrink tubingSimultaneously expands and shrinks with workpieces without clearances, seals tight in harsh environmentStably sealing the workpieces in windy environmentWell suited for cable less than 1KVSeals tight, retains its resiliency and pressure even after prolonged years of ageing and exposure.Simple , safe installation, requires no tools or special training. No torches or heat work required.Diameter shrinkage:≥50%Sealing class IP67, IP68 Applications Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000voltsMeets ANSI C119.1, directly buriable or submersibleFor indoor, outdoor, or overhead use Physical protection and moisture sealing for high-voltage, air-insulated connectors and lugs such as spacer cable and lug connections to bus barInsulation of secondary splices copper or aluminium conductors Relocation of service Dig-in repairs, sheath repairsInsulation of inline conductor transition connectors
Apart from EPDM rubber cold shrink tube,
Silicone cold shrink tubes are also available from us!
Volsun Electronics Technology Co., Ltd, founded in 2006, is an innovative company specializing in R&D, manufacture and sale of standard & custom high performance cross-linked materials esp.Heat shrinkable materials for the electronic, electrical, automotive, aerospace, shipbuilding, oil and gas markets in China.
Headquartered in Suzhou, Jiangsu Province, PRC, Volsun has several manufacturing plants equipped with world class manufacturing facilities located in south China and east China to guarantee a sufficient supply to our customers domestically and globally.Supported by our powerful R&D teams and unparalleled rich experience in our products, we thrive on helping our customers make and choose integrated solutions to those challenging problems they face in their fields.
We are specializing in manufacturing different kinds of products, such as PE heat shrinkable tubing, Teflon tubing, Silicone Rubber Tubing, EPDM Tubing, PVC Tubing, Identification Tubing and Finish Cables and Wires etc.
Volsun is more than a supplier of products, it's also a solutions provider.Since its establishment in 2006, with our high performance products, Volsun has been creatively supplying solutions for electrical insulation and mechanical protection for parts, wires, cables and pipes for the electronics, automotive, electrical power, metallurgy, Petrochemical industry markets etc.
Volsun attaches great importance to product quality and consider it the soul of our competitiveness.Most of our products are UL/CSA approved and RoHS compliant.
We will continue to uphold our basic values, I.E.Integrity, Responsibility, Enthusiasm, Innovation, Teamwork, Specialization, Efficiency and Value and struggle for our mission to be a global leader in the industry.
