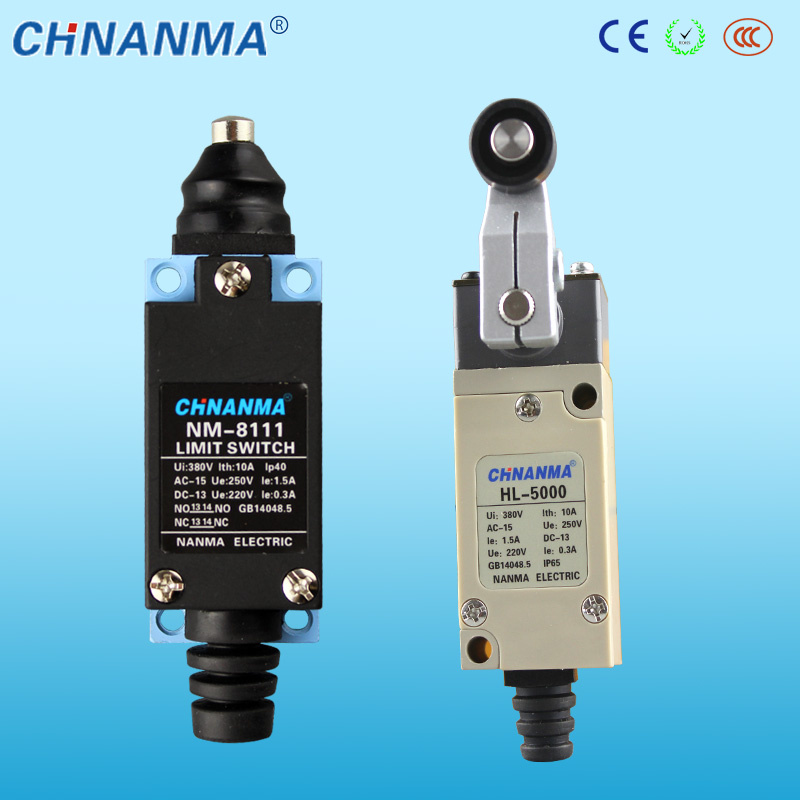

Waterproof Wire Combination Proxy Limit Switch

Prod Model:	HL-5000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IP:	65
Contact Material:	Brass
Tip Material:	Silver
Shell Material:	Metal Bottom Shell
Housing:	Aluminum
Pressing Type:	Spring Roller
Protection:	Waterproof
Size:	Small-Sized
Breaking Form:	Duplex Type
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Brand:	Chnanma

Product Description

1.Switch features

Housing	Aluminum
Tip material	Silver
Contact	1NO+1NC
Contact material	Brass
Stainless steel roller,punch and spring
Strong electric property 10A,250V for 500,00times

2.Specifications

Operating speed	5 mm/s to 0.5 m/s
Operating Frequency	Mechanical	120 operations/min
	Electrical	30 operations/min
Insulation resistance	100 MΩ min. (at 500 VDC)
Contact resistance	25 mΩ max. (initial value)
With stand voltage(50/60 Hz 1 min)	Between the terminals of same pole	AC 1,000V
	Between charged metel parts	AC 1,500V
	Between non-charged metal parts of each terminal	AC 1,500V 10~55Hz(amplitude 1.5mm)
Rated frequency	50/60 Hz
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction	1,000 m/s2 max.
	Malfunction	300 m/s2 max.
Ambient operating temperature	5°C to +65°C (with no icing)
Ambient operating humidity	35% to 95%RH
Load	AC 380V 5A
	DC 125V 5A
	DC 250V 5A

3.Operating Characteristics

Model	HL-5030
OF Max	750g-cm
RF Min	100g-cm
PT Max	20º
OT Max	22.5º
MD Max	10º
EP Max	75º
OP mm	95º

4.Why choose our switches
1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

5.Customer's questions
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

Q5:What's the delivery term?
Answer:Both EXW and FOB Ningbo are acceptable.


Q6:What's the payment term?
We could start our discussion about payment term from second order on.

Q7:What's the shipment way?
Answer:Express:DHL, UPS, FedEx, TNT and SF express.
Forwarder:Air shipment or sea shipment.

6.More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
